Stored position

The Stored position point of the winch cycle is in the bell mouth. The absolute position of the instrument at any time is estimated with respect to Stored position.

Typically, you will set it when first feeding the line to the sheave unit. If any adjustments are necessary, follow the steps below.

Steps

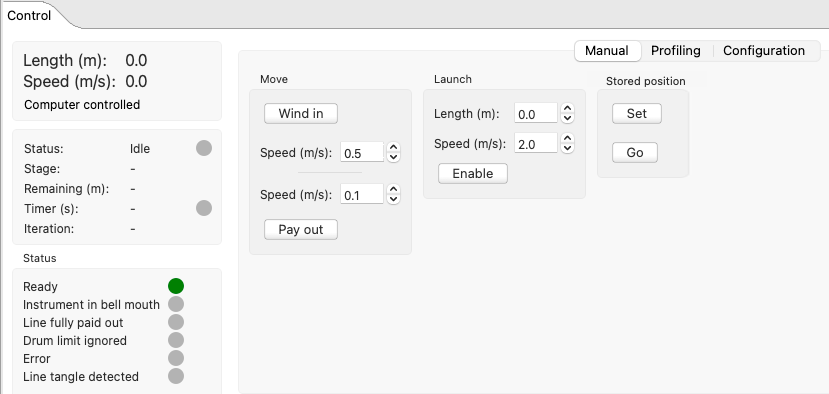

  1. Go to the Manual tab.

    glissando manual tab 2

  2. Under Move, use the Wind in button to bring the instrument to the bell mouth.

    screenshot 2023 09 05 at 9 52 58 am

  3. Under Stored position, click Set. This will be the zero position for your instrument.

    screenshot 2023 09 05 at 9 21 55 am

If the winch cycle stops before the instrument is recovered, click Go under Stored position, and the RBRglissando will return it to the bell mouth.
