Cabinet control unit

The cabinet control unit of the RBRglissando has a panel to manually start and stop of the winch.

cabinet

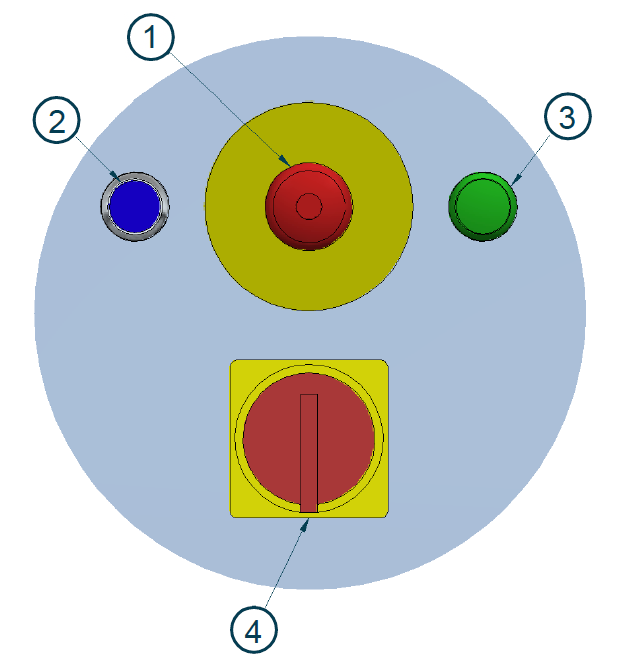

Control cabinet panel

  1. Emergency stop - Emergency stop button; push to activate, twist to release

  2. Reset - Emergency stop relay reset function, lights up when the emergency button is activated or when the power in first turned on

  3. Mains - Indicates the system power state; lights up when the power is on

  4. Mains switch - Powers the winch on or off
