Control cabinet

Place the control cabinet on a trolley to maintain its mobility, or securely mount it to the deck. Wire the supply and control interface cables through the connectors provided at the bottom of the control cabinet and junction boxes.

diagram with cc

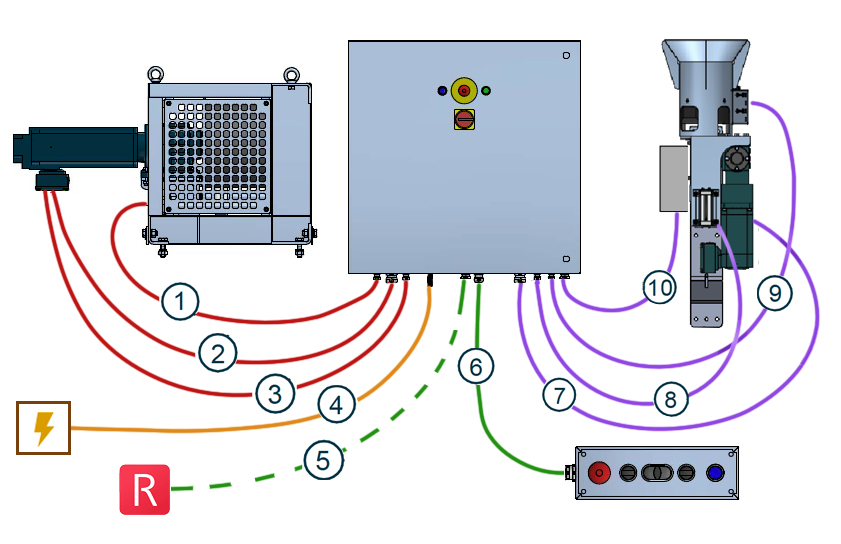

Control cabinet with cable wiring schematics

  1. To drum limit switch – Activates the drum limit switch

  2. To drum motor – Supplies power to the drum motor

  3. To drum encoder – Communicates with the drum encoder

  4. To power source – Powers up the control cabinet, compatible with outlets of 400-480V 3ø AC

  5. To Ruskin – Standard Ethernet cable (not included)

  6. To handheld remote – Connects to the handheld remote control unit

  7. To sheave motor – Supplies power to the sheave motor

  8. To sheave encoder – Communicates with the sheave encoder

  9. To bell mouth switch – Communicates with the bell mouth

  10. To RBRcervello box – Communicates with the RBRcervello data controller via Ethernet
