Connecting the cables

After unpacking the RBRglissando and mounting the drum unit on the deck, proceed with connecting the power and communication cables to the control cabinet.

The drum unit comes with three hardwired cables and the sheave unit, with four. The handheld remote control unit has one hardwired cable.

The Ethernet cable for Ruskin is not included. Use a standard Ethernet cable with the length that suits your needs.

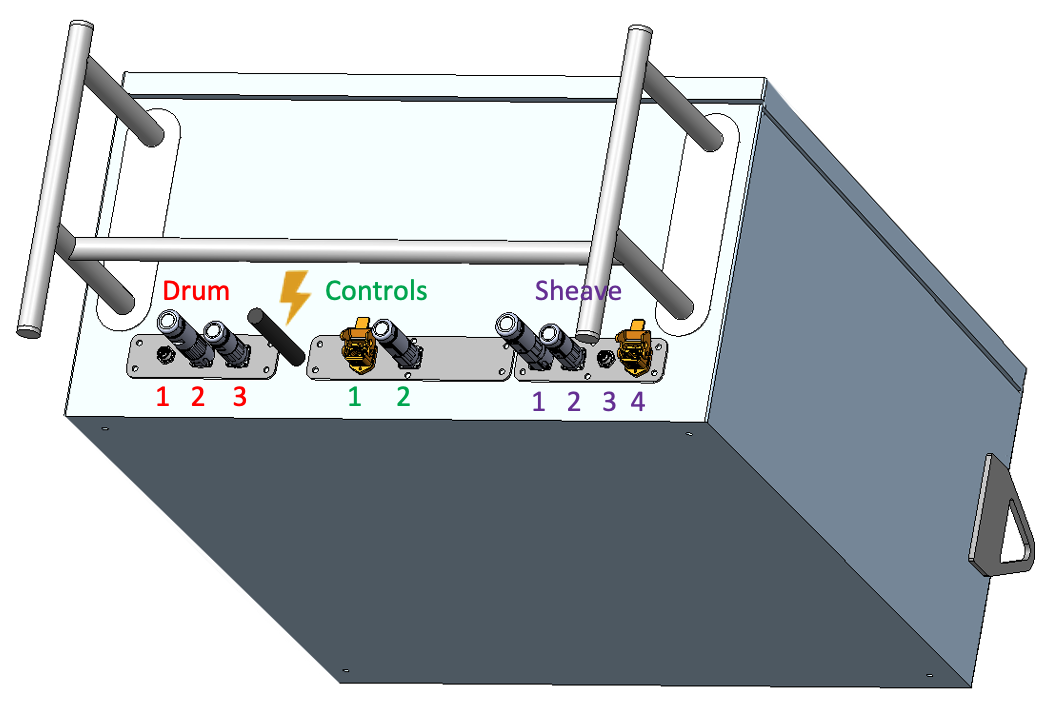

Turn the control cabinet to the side to access the three panels, Drum, Controls, and Sheave. Plug each cable into its designated connector as indicated on the diagram below.

screenshot 2023 07 28 at 3 10 01 pm

Drum

  1. Drum limit switch

  2. Power to drum motor

  3. Drum encoder

Controls

  1. Ethernet to Ruskin

  2. Handheld remote

Sheave

  1. Power to sheave motor

  2. Sheave encoder

  3. Bell mouth switch

  4. Ethernet to RBRcervello

The power cable for the control cabinet is hardwired to its power connector screenshot 2023 07 28 at 2 38 36 pm. Plug it in (400-480V 3ø AC) only after all the other cables are connected to the control cabinet.
