Drum unit

The drum unit contains the drum, the main motor, and the spooling device. Mount it on the deck, securing in position with four bolts or ratchet straps.

screenshot 2023 07 11 at 12 29 45 pm

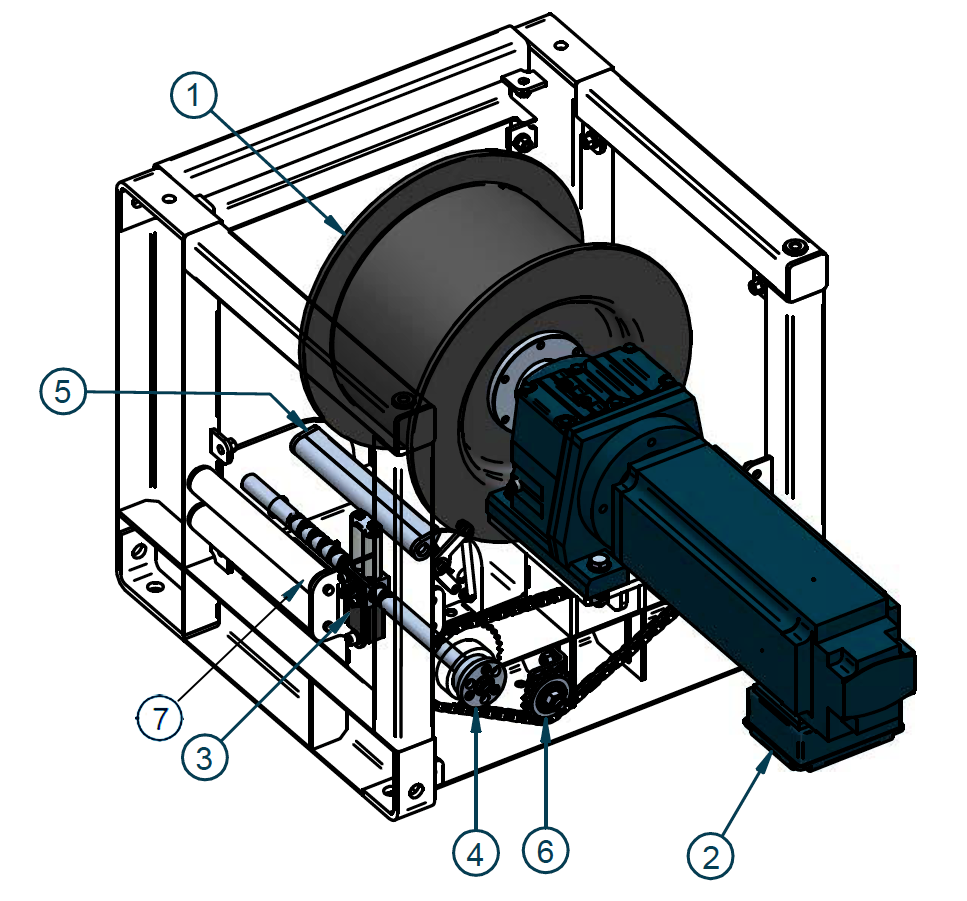

Drum unit, transparent view

  1. Drum – Holds the wire

  2. Main motor – Turns the drum and provides the lifting force

  3. Line winder – Distributes the line evenly over the drum

  4. Line winder adjuster – Adjusts the position of the line winder

  5. Tangled line detector – Detects a severely tangled wire

  6. Chain tensioner – One on each side

  7. Line rollers – Direct the line out of the drum
