Powering the RBRglissando

With the power cables now connected to the control cabinet, you can power the winch.

Steps

  1. Plug in the control cabinet power cable to the compatible power outlet (400-480V 3ø AC).

  2. Turn the Mains switch on the control cabinet to the ON position, then push Reset.

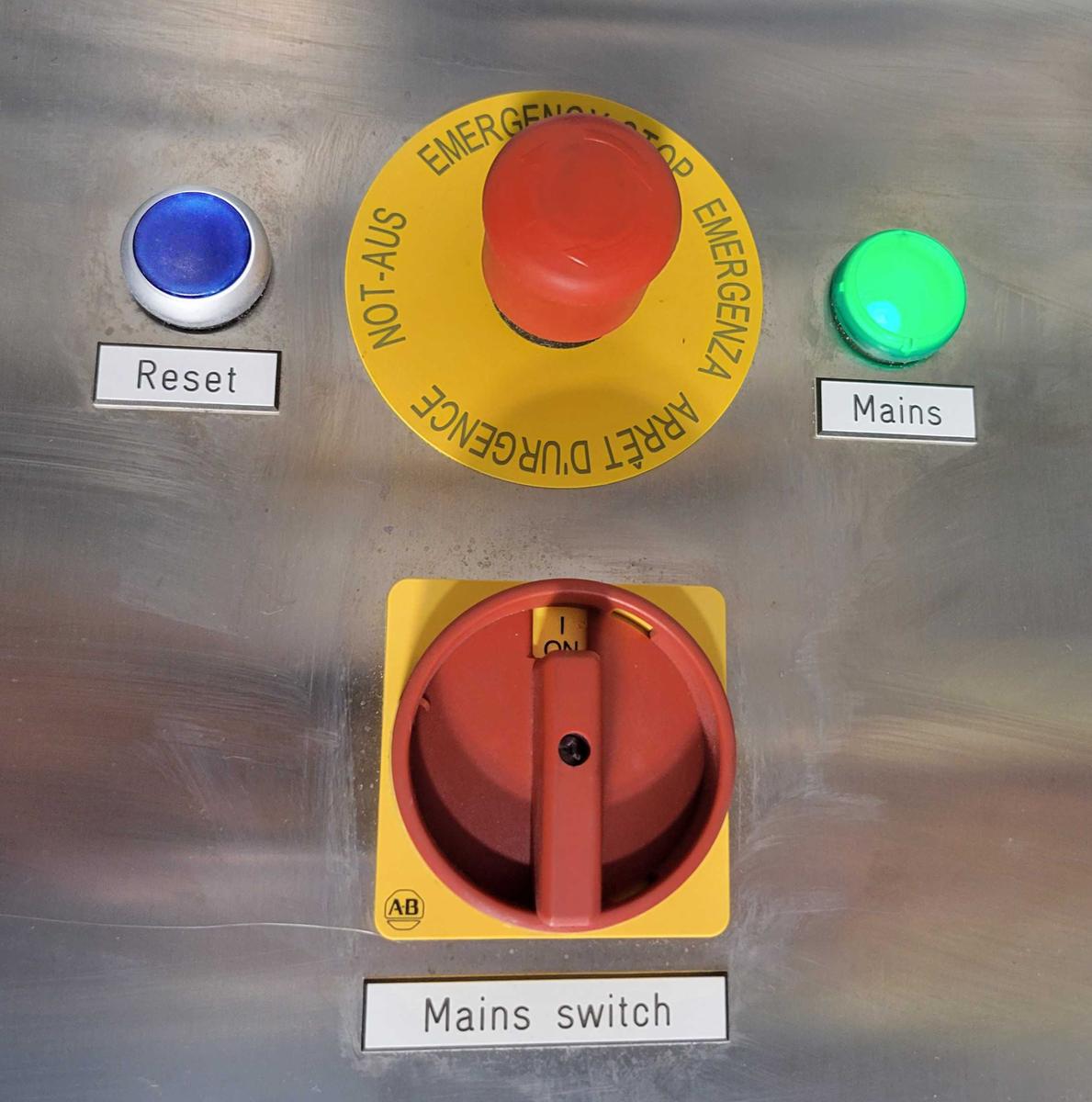

    cc buttons

  3. Verify that the ON /OFF switch on the handheld remote control is also in the ON position.
    If it is in the OFF position, turn it to ON and push RESET. Otherwise, proceed to the next step.

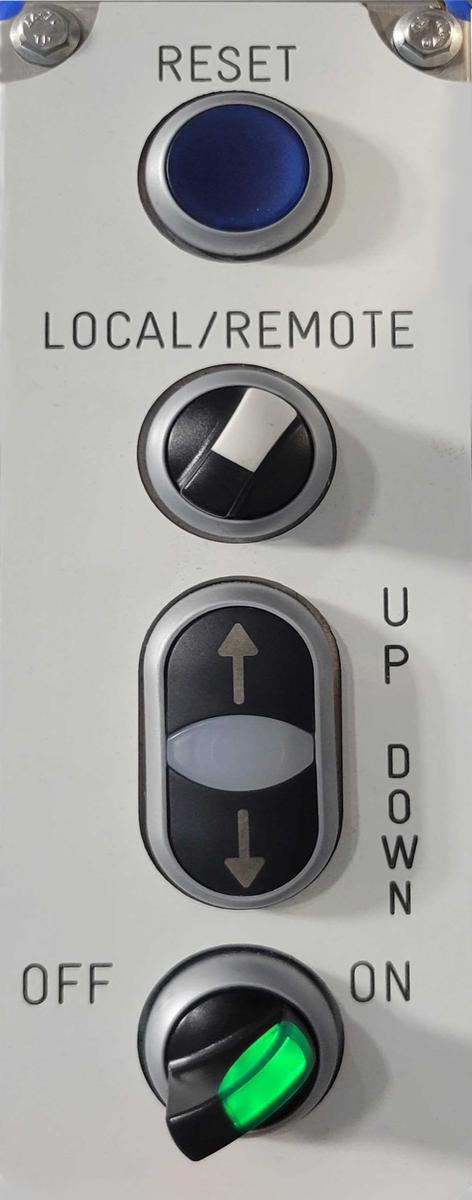

    rc buttons
