Mounting the sheave unit

After feeding the line from the drum unit to the sheave, proceed with mounting the sheave unit.

With some A-frames, you may be able to mount and secure the sheave to the A-frame first, then feed the line to it.

Steps

  1. Unplug the sheave unit power cable from the control cabinet.

  2. Ensure that the line has enough slack for you to hold the end coming out of the bell mouth while the sheave is raised up to the A-frame or boom.

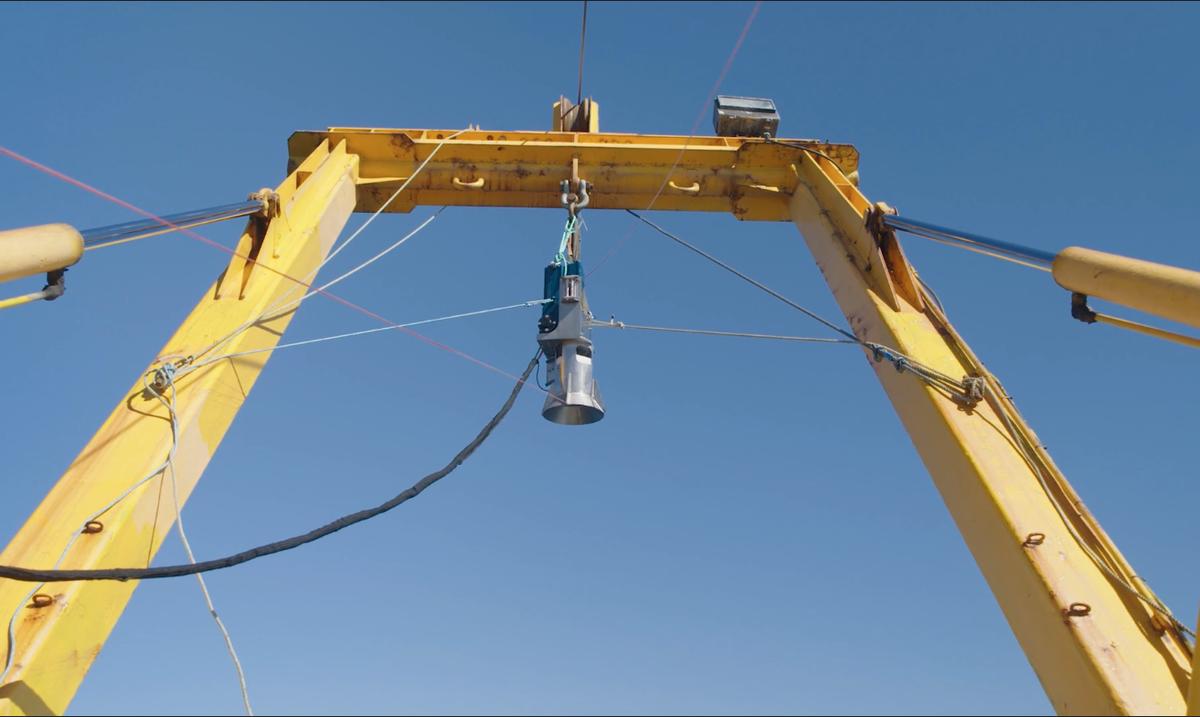

  3. Mount the sheave unit above the water on an A-frame or a boom, in line with the drum unit, and secure the cables.

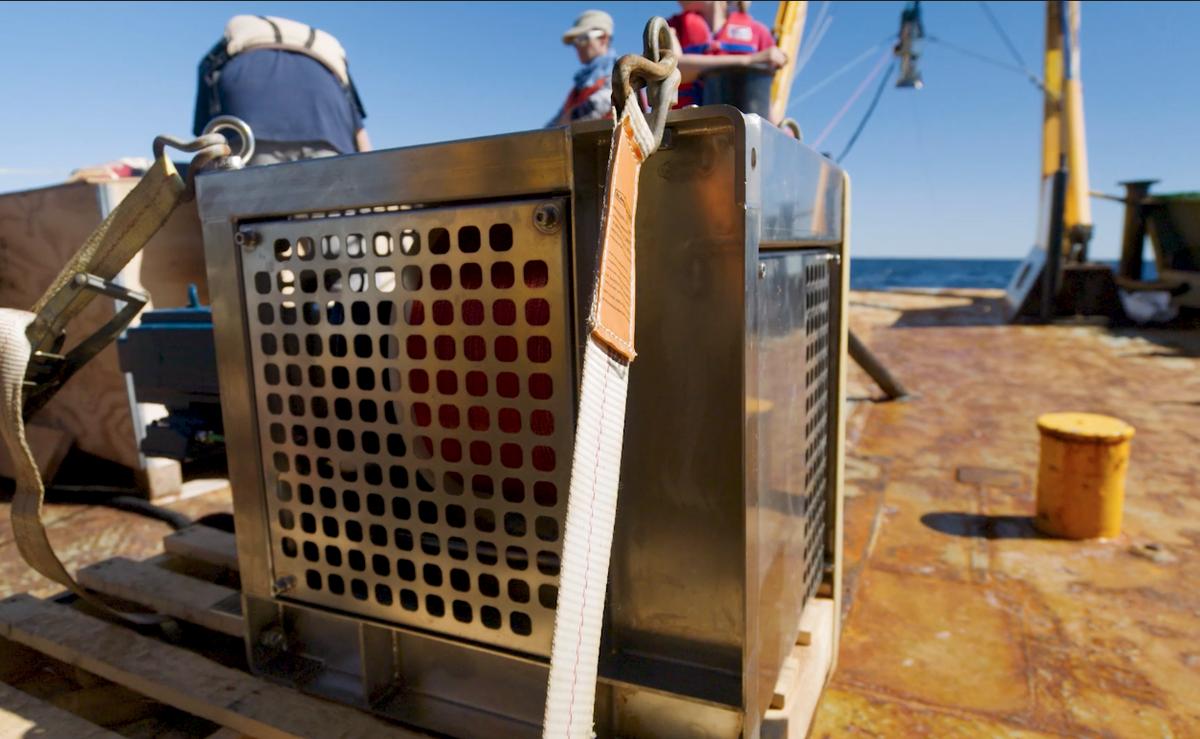

    screenshot 2023 07 26 at 9 53 03 am
    screenshot 2023 07 26 at 9 50 51 am

  4. Plug the power cable back in to the control cabinet.
