Handheld remote control unit

The RBRglissando is equipped with a handheld remote control unit, which allows for the manual operation of the winch.

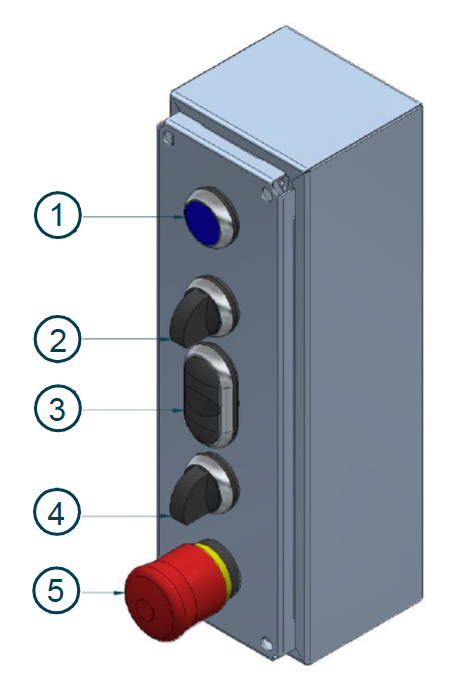

manual controls

Remote control panel

  1. RESET - Emergency stop relay reset function; lights up when the power is first turned on or the emergency button is activated

  2. LOCAL / REMOTE - Switches between the manual (local) control and Ruskin (remote)

  3. UP / DOWN - Raises or lowers the probe when in manual mode; this button contains a status indication light

  4. ON / OFF - Powers the winch on or off; system power switch on control cabinet must be switched on

  5. Emergency stop - Emergency stop button; push to activate, twist to release

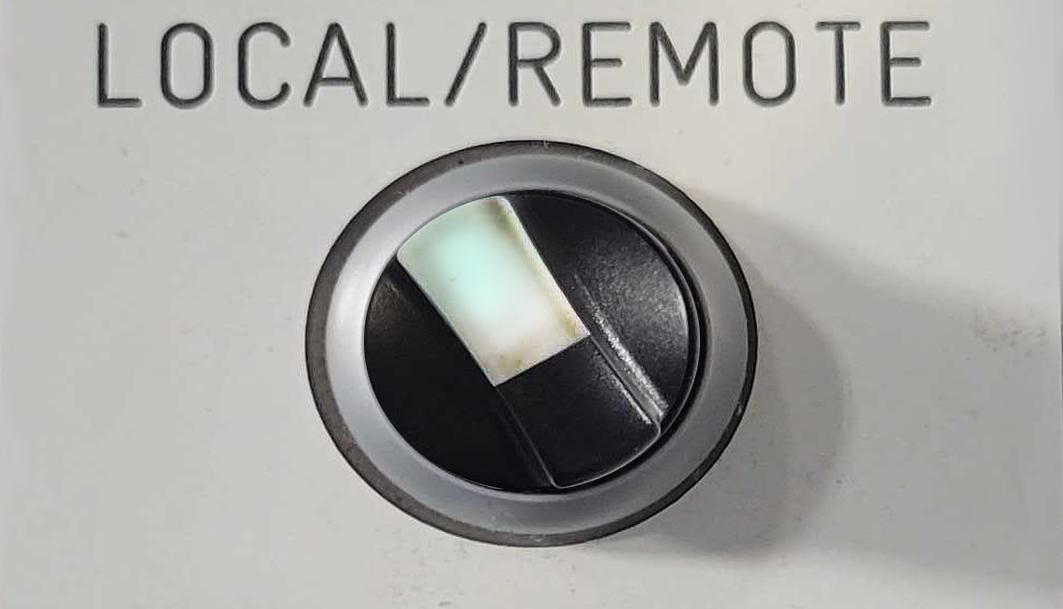

Before using the handheld remote control unit, ensure the LOCAL / REMOTE switch (2) is in the LOCAL position. When it is, the white LED will be on continuously (no blinking).

rc remote switch 2

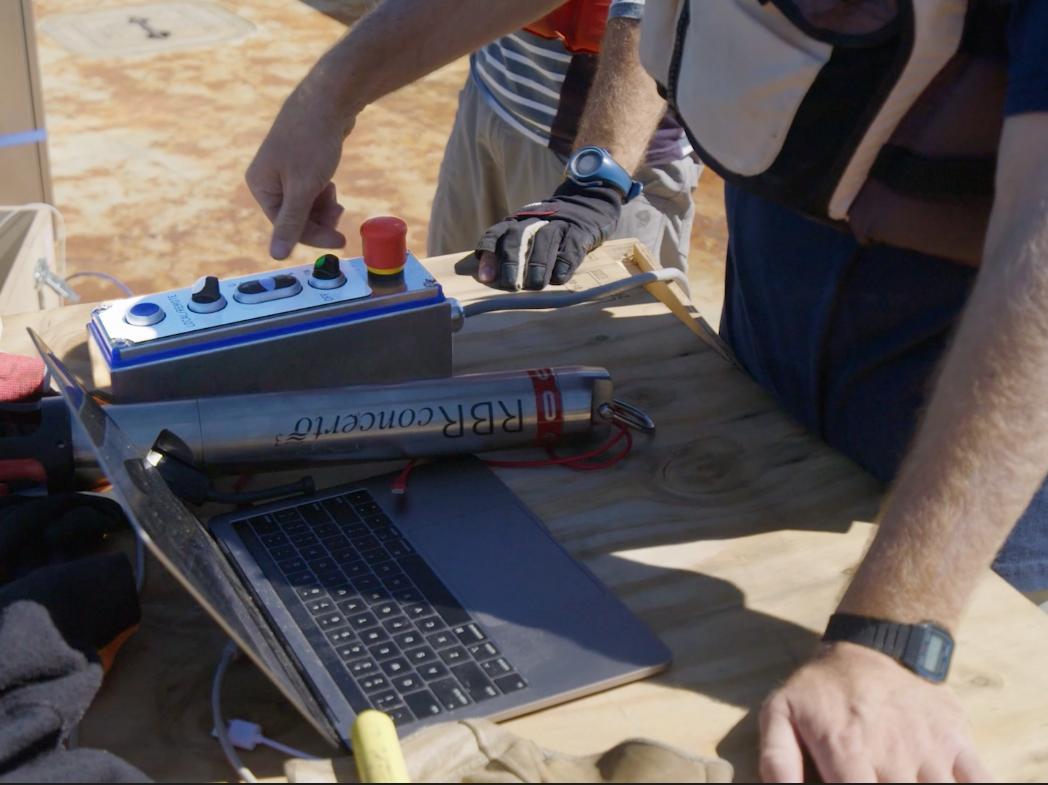

Use the UP / DOWN buttons (3) to raise and lower your load slowly. The winch will move only when one of these buttons is pressed. Otherwise, the mechanical brake is activated and the winch stops.

up and down buttons
