Specifications

Instrument

Specification Description

Storage

240 million readings1

Power

8 AA-type cells

External power

4.5V to 30V

Communications

Internal: USB-C
External: USB and RS-232/RS-485, or Ethernet

Clock drift

±60 second/year

Max depth rating

7000m

Housing

Titanium

Diameter

60mm

Length

880mm (with Ethernet)2

Weight

5.7kg in air, 3.2kg in water (with Ethernet)2

1 Each sample can include multiple readings.

2 Length and weight depend on configuration. Non-Ethernet versions have slightly different lengths and weights.

Temperature sensor

Specification Description

Range

-2°C to 45°C

Initial accuracy

±0.002°C

Resolution

0.00005°C

Typical stability

±0.002°C/year

Time constant

~30s (embedded)

Pressure sensor

Specification Description

Range

4000 / 7000dbar

Initial accuracy

±0.01% full scale

Resolution

10ppb (at 1Hz sampling rate)

Thermal sensitivity

<0.0008% full scale per °C

Accelerometer

Specification Description

Range

±3g

Resolution

<100ng

Power supply selection

If connected, an external power supply will be used preferentially over the internal batteries as long as the voltage remains 9V or greater. If it drops below 9V or complete disconnection occurs, the system automatically switches to the internal batteries.

Power consumption

When the external power is present, the power consumption is ~1.5W continuous with an Ethernet connection and ~66mW with a serial connection.

Clock

The instrument’s clock is maintained during brief disconnections. This time is usually sufficient to change batteries or replace desiccants.

USB-C power

The USB-C cable provides power sufficient for configuration or data download. However, the instrument requires an internal or external power supply to perform sampling.

Deployment estimates

Deployment times are estimated for lithium thionyl chloride batteries based on both memory and internal battery capacity.

Speed Time (days) # of samples

16Hz

27

~38 million

8Hz

32

~22 million

4Hz

32

~11 million

2Hz

32

~6 million

2s

35

~2 million

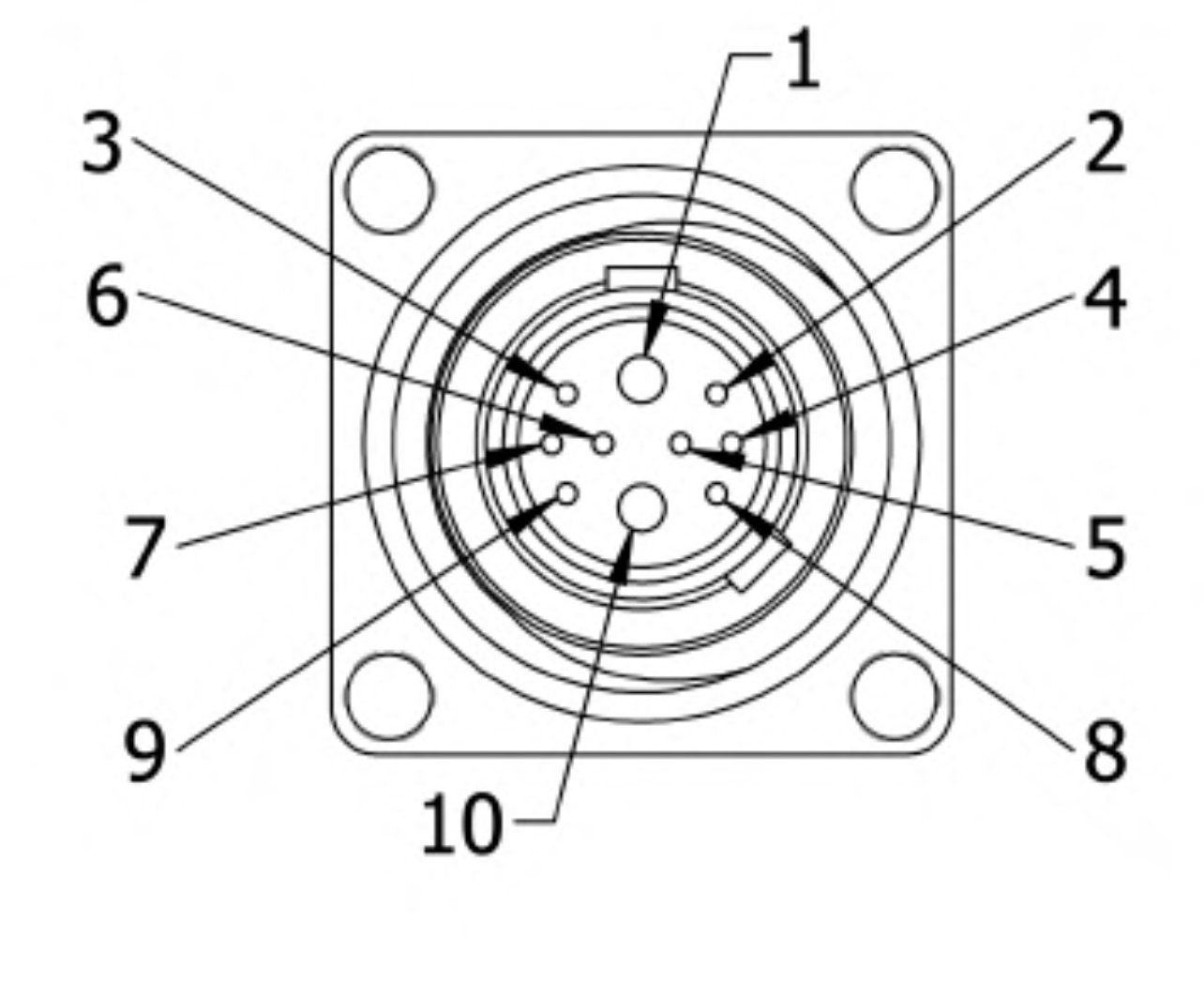

External MINK-10-FCR connector pinout

image2020 11 12 12 18 12

Pin No.

RS-232

RS-485

Ethernet

1

Power 4.5V to 30V

2

N/C

RD(A)

Data output from the instrument (Tx+)

3

N/C

N/C

Data input into the instrument (Rx+)

4

Data output from the instrument (Tx)

RD(B)+

Data output from the instrument (Tx-)

5

Ground

6

Data input into the instrument
(Rx)

TD(B)+

N/C

7

N/C

N/C

Data input into the instrument (Rx-)

8

N/C

9

N/C

TD(A)-

N/C

10

Ground
