Orientation and datum location

The datum of the RBRquartz³ APT is located at the centre of the pressure sensor port. RBR performs an offset adjustment with the sensor facing upwards. It is recommended to deploy the RBRquartz³ APT vertically to match the way it was calibrated, with the nose cone of the instrument penetrating the seabed.

screen shot 2022 03 11 at 3 22 37 pm

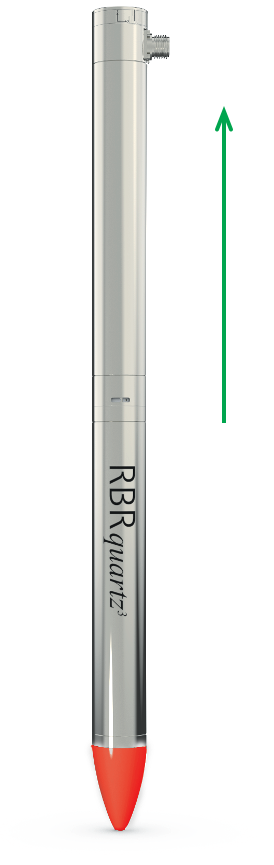

Fig. 4.    Recommended orientation: sensor facing up
screen shot 2022 04 08 at 3 40 13 pm

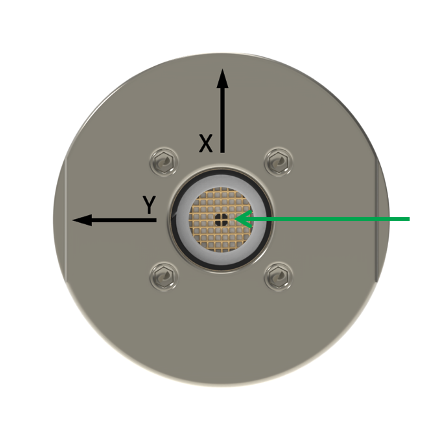

Fig. 5.    Datum location
