Replacing the desiccant capsules

Replace desiccant capsules before each deployment.

Fresh desiccant will keep the instrument compartment dry and prevent malfunction. Water damage may occur if condensation forms inside the instrument.

As a preventative measure, RBR recommends servicing the instrument in a cool, dry place (when possible).

rbrquartz3 apt 3 red desiccant half

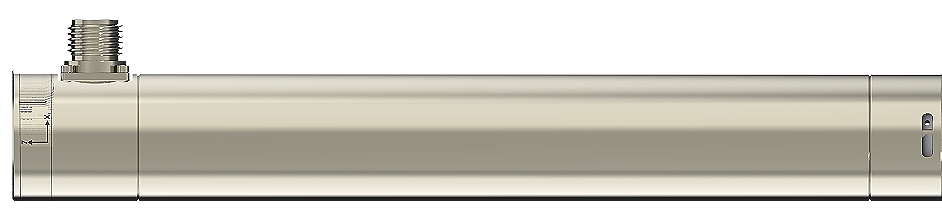

Fig. 12.    The half of the RBRquartz³ APT with the desiccant capsules

Replacing the desiccant capsules

Step Description Images

1

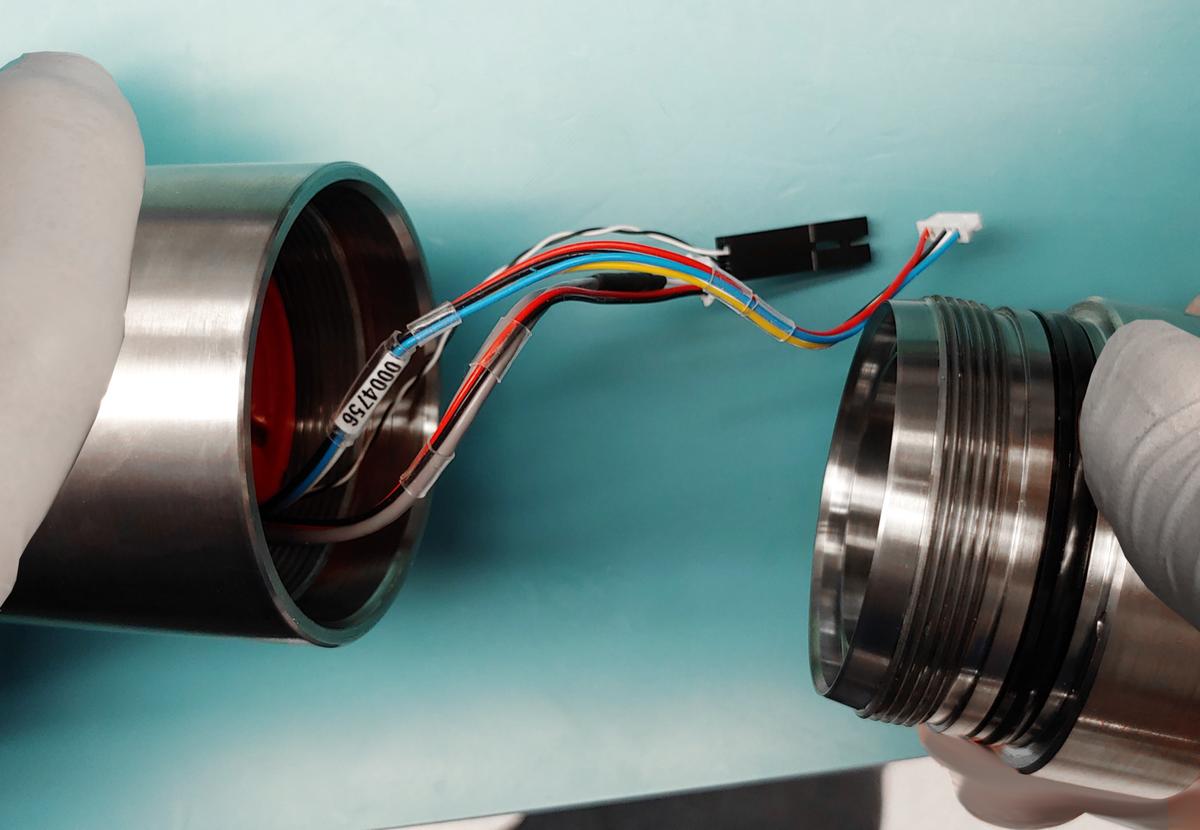

Open the instrument and disconnect the wiring.

The half of the instrument with the MINK connector contains desiccant capsules.
step 5 3

2

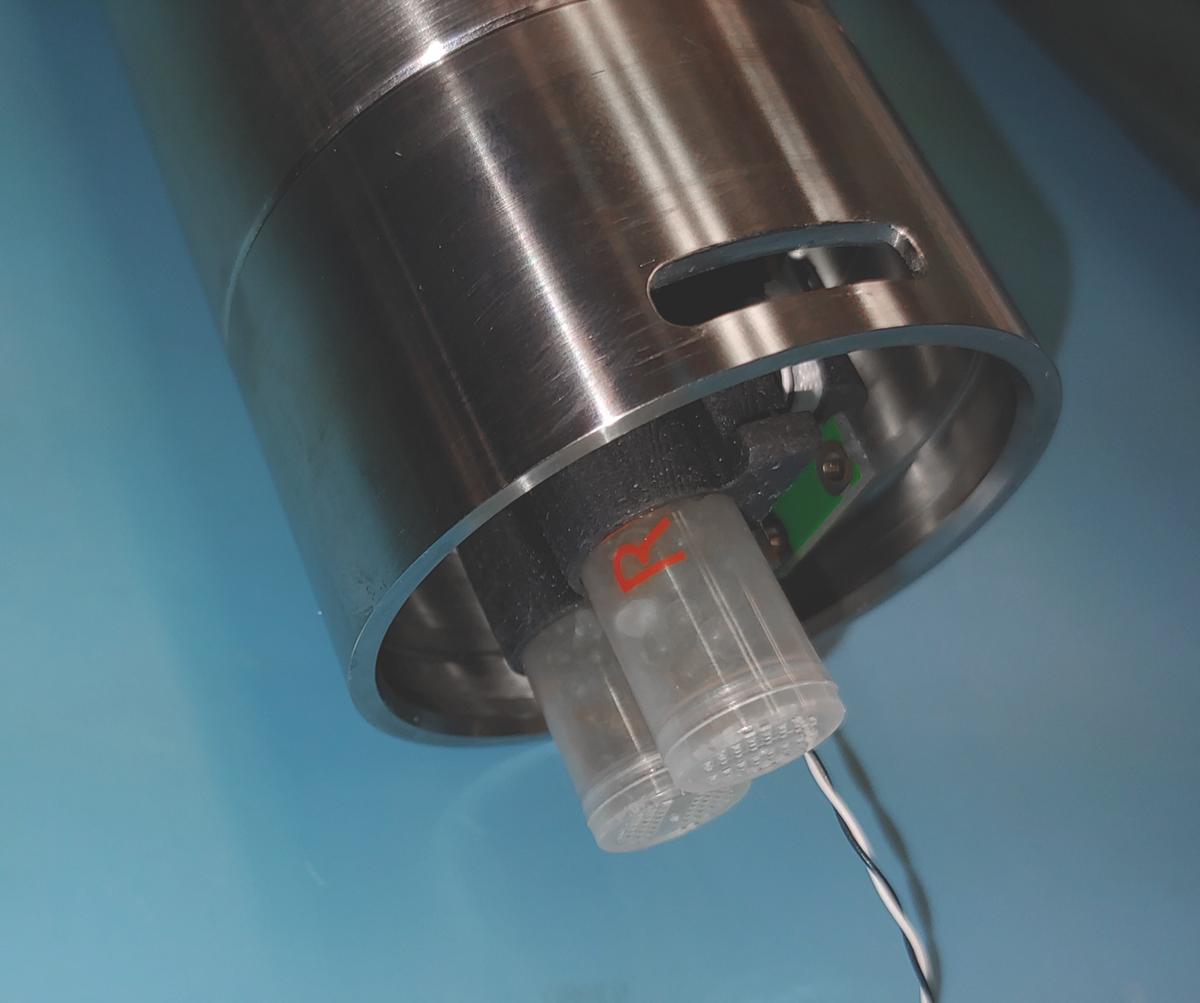

Pull the used capsules out of the desiccant socket.
step 2 d

3

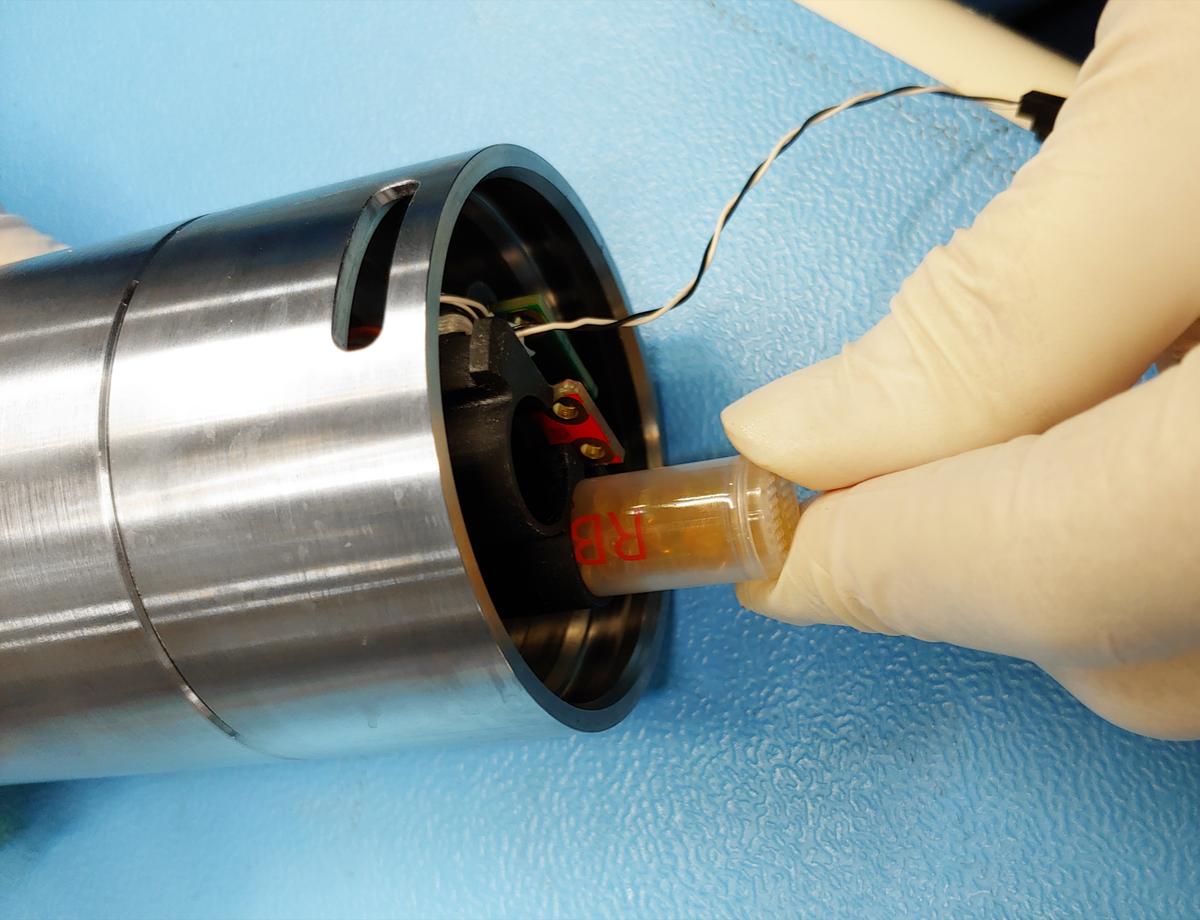

Insert two fresh desiccant capsules.
step 3 d 2

4

Reconnect the wiring and close the instrument.
