Support kits

RBR provides one support kit per every three instruments ordered. If you need more units, contact RBR.

There are two types of RBR support kits for standard instruments, for the ones in plastic housing and for those in titanium. The difference is the O-rings included in the support kit. Instruments in titanium housing are used for deep deployments and must endure harsher conditions. An additional O-ring serves as a backup protection from flooding.

The RBR support kits contain an assortment of basic accessories and spare parts, as presented below.

screen shot 2022 02 08 at 8 32 25 am

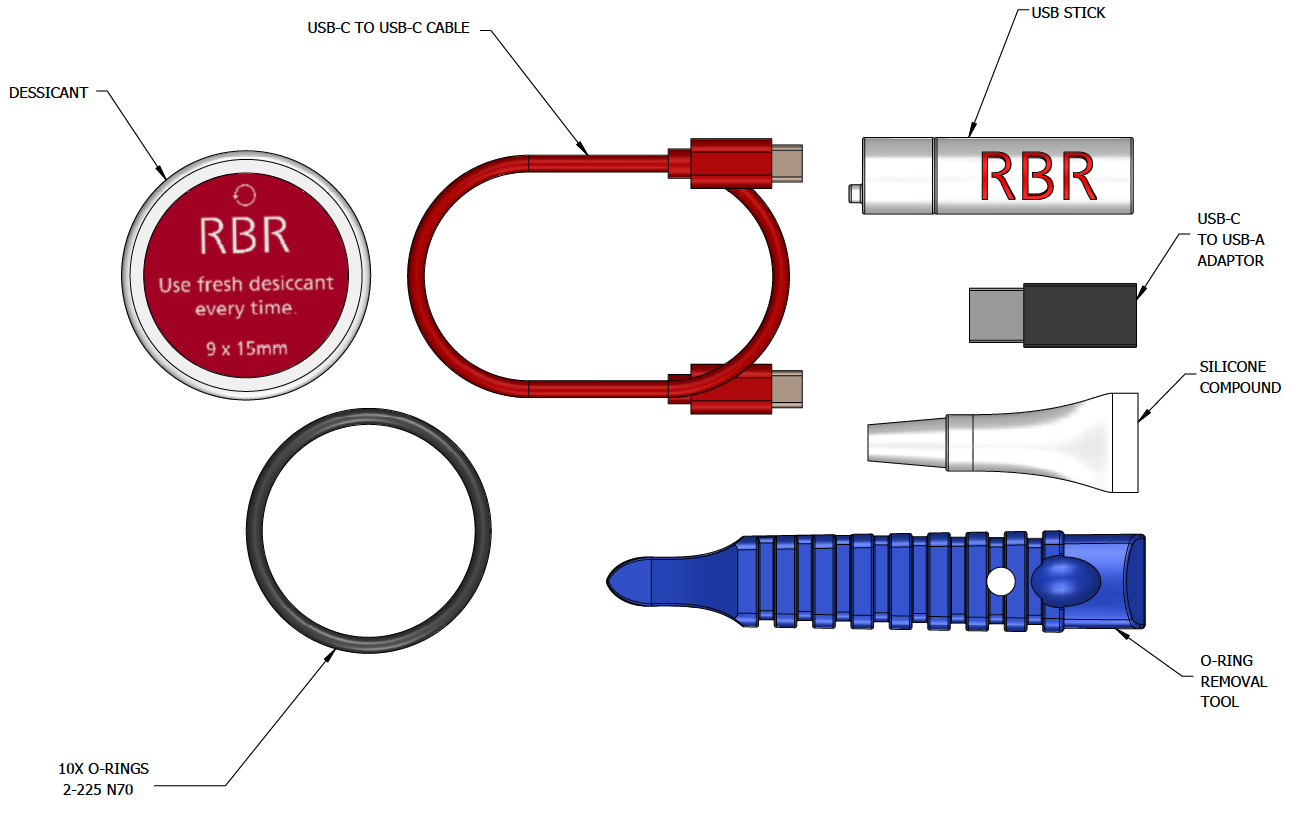

Fig. 43.    RBR support kit diagram (for plastic)
screen shot 2022 02 08 at 8 31 31 am

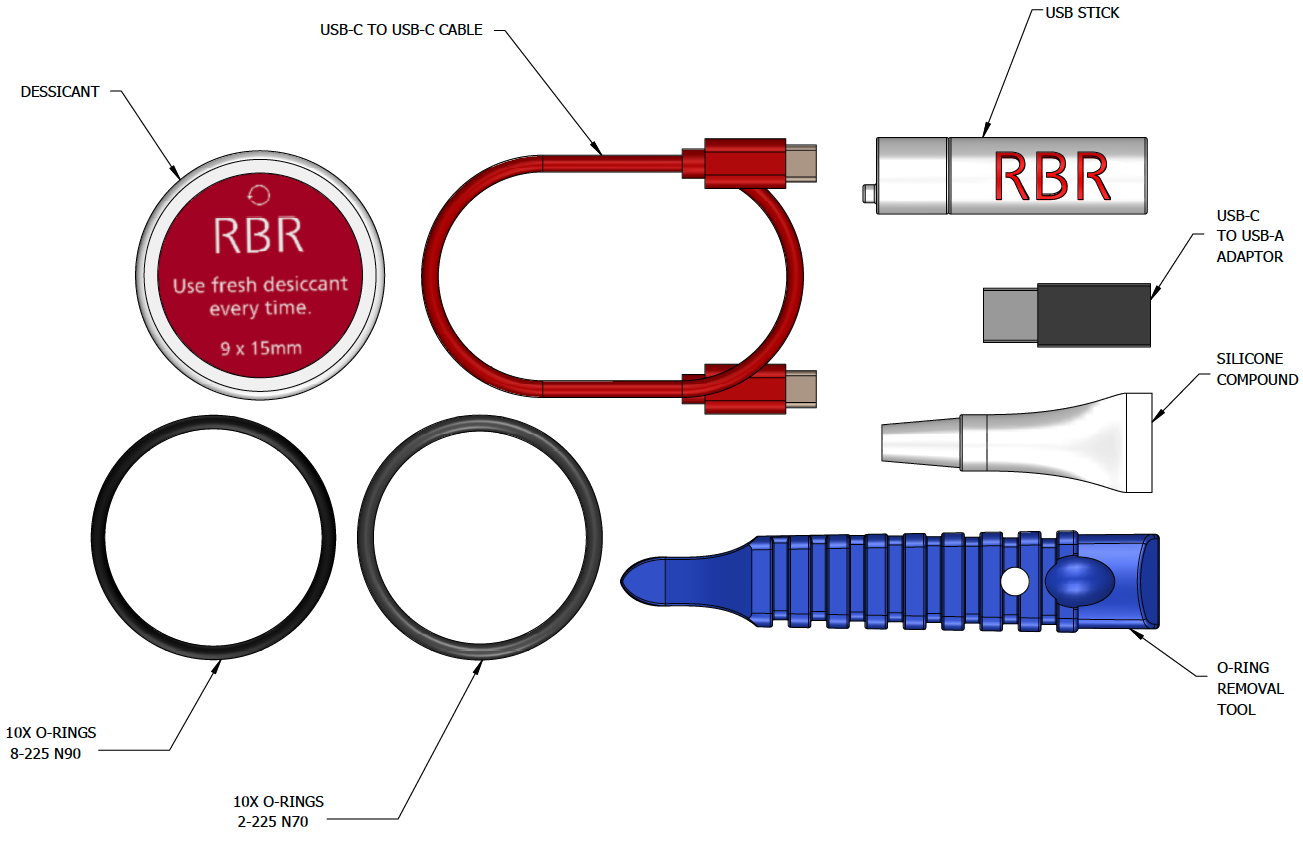

Fig. 44.    RBR support kit diagram (for titanium)

See Replacing the O-rings for more information on the | deep variants.
