RBRquartz³ Q

The RBRquartz³ Q integrates the Paroscientific Digiquartz® pressure sensor for best-in-class accuracy and low-drift performance.

Intended for long-term autonomous or realtime observations of water level, tides, and waves, the RBRquartz³ Q can resolve small changes over long deployments. Flexible measurement schedules and burst sampling permit applications for tide, wave, and sea level measurements. The RBRquartz³ Q has a large memory capacity, sufficient power for extended deployments, and USB-C or Wi-Fi download for large data files.

image2020 12 7 12 15 21

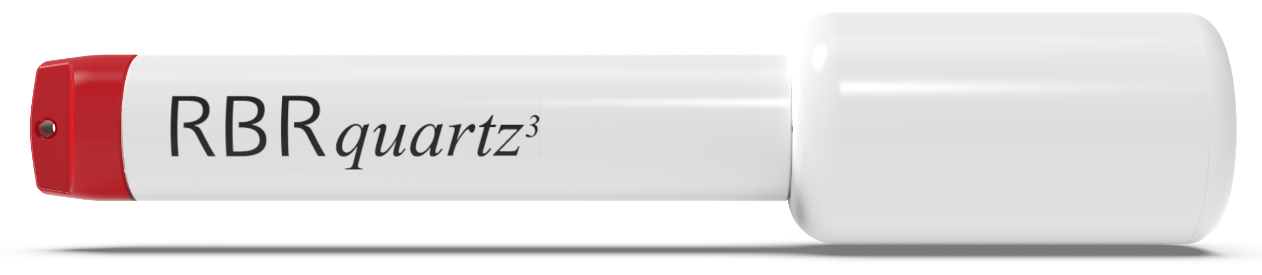

Figure 1. RBRquartz³ Q

The RBRquartz³ Q features:

  • High accuracy

  • Internal USB-C connector

  • Large memory

  • Quartz stability

rbrquartz3 q sensor end cap

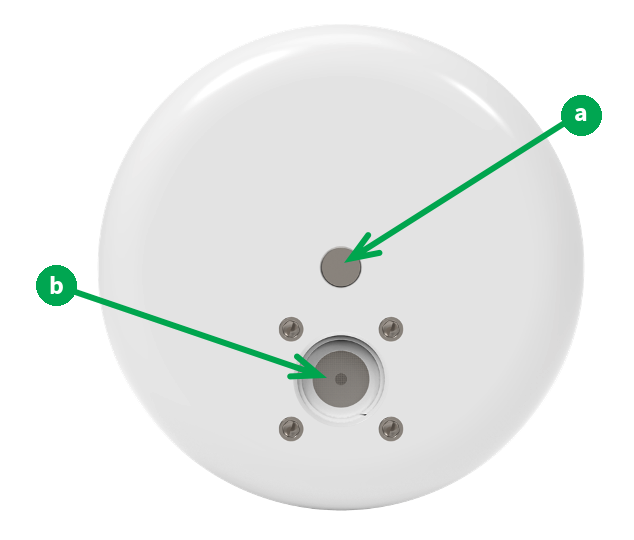

Figure 2. RBRquartz³ Q sensor end-cap: (a) temperature sensor, (b) pressure sensor port

For a detailed description of wave and tide measurements, see Ruskin User Guide: Standard Instruments3.
