External pressure adaptor

The external pressure adaptor is designed for the RBRquartz³ instruments and can be used to verify or recalibrate the Paroscientific Digiquartz® pressure sensor.

RBR provides the RBRquartz³ pressure adaptor kit with each instrument. It is not included in the RBR support kit and needs to be ordered separately. You can choose to receive this separate kit at the same time as the instrument, or to request it separately at a later date.

RBRquartz³ pressure adaptor kit includes:

  • pressure adaptor

  • four socket head cap screws

  • 3mm and 5m hex keys

  • five replacement O-rings
0008746 2

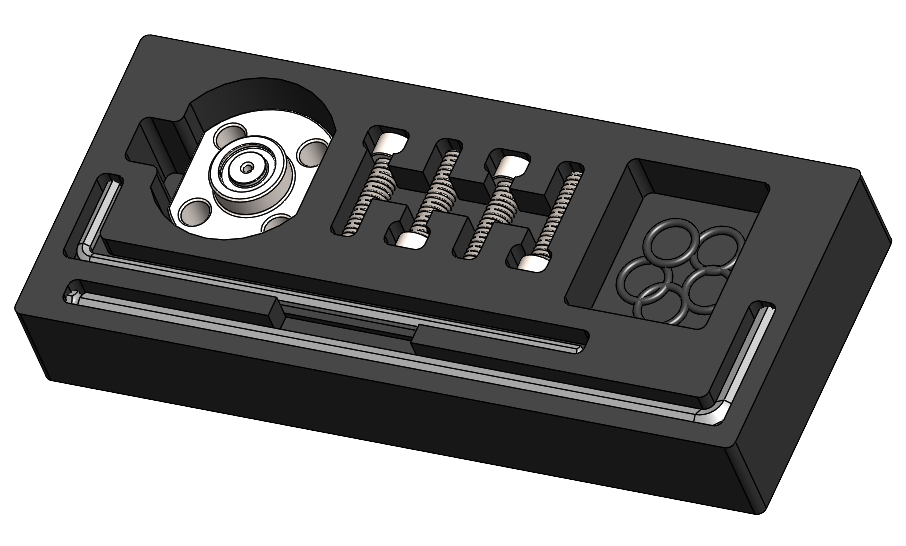

Figure 1. Pressure adaptor kit

Installing the adaptor

Step Description Image

1

Remove the antifouling mesh.

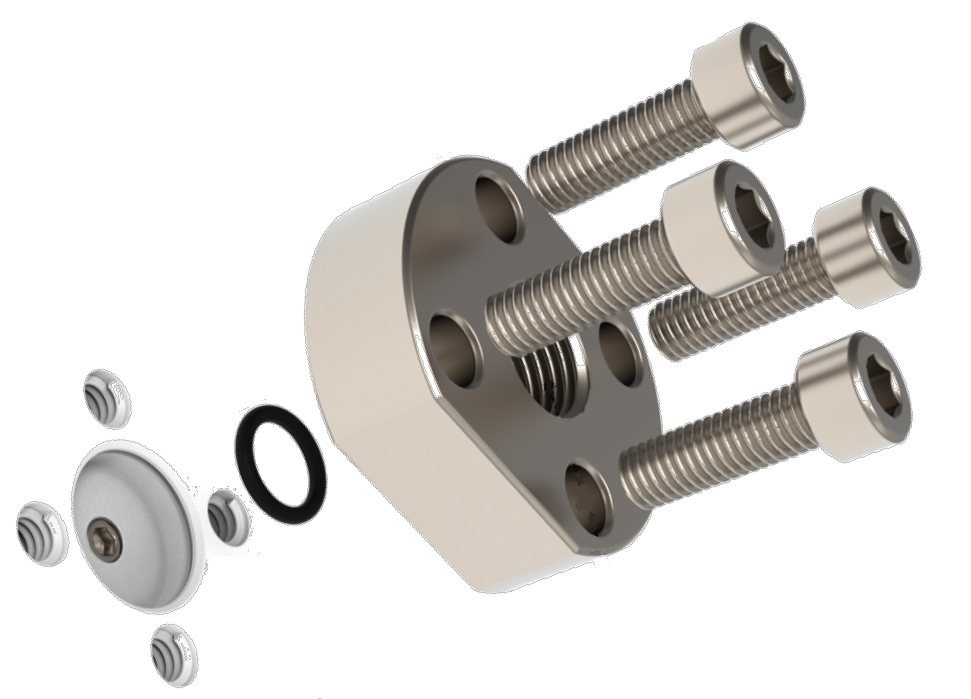

pressure 1

2

Apply a thin layer of silicon compound to the O-ring.

3

Install the O-ring into the O-ring groove of the external pressure adaptor.

4

Position the external pressure adaptor over the exposed pressure port of the instrument.

5

Install the four screws with a 5mm hex key and tighten them to 1/4 turn past snug (max 10 Nm torque).

Refer to Removing the antifouling mesh assembly for required materials and steps.

Refer to Replacing the O-ring for additional instructions.
rbrquartz3 q pressure adapter 1

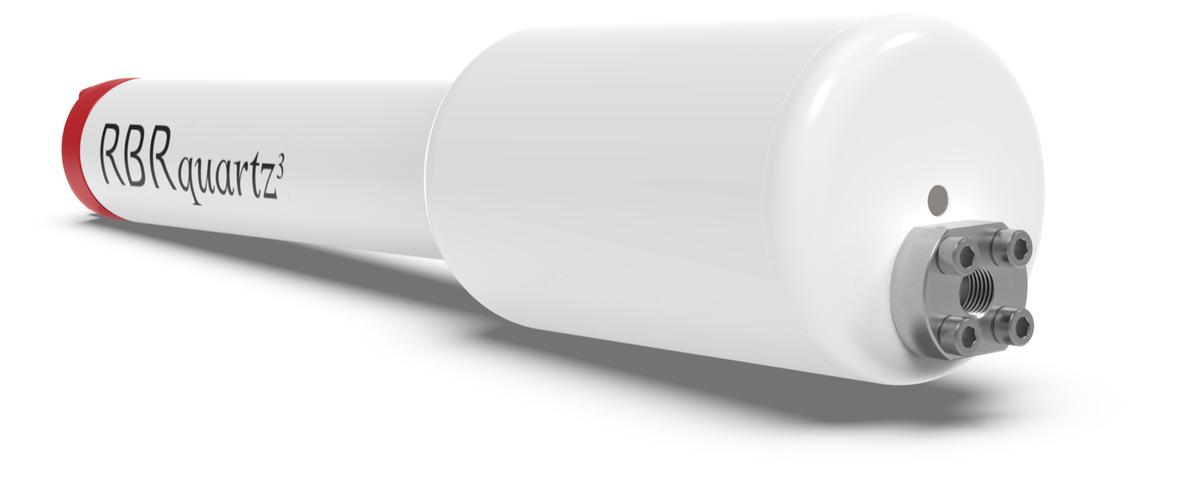

Figure 2. RBRquartz³ Q with the external pressure adaptor installed
