Removing the antifouling mesh assembly

Removing the antifouling mesh assembly may be necessary for a variety of reasons, such as cleaning the instrument and its buffer tube, or installing the external pressure adaptor. Follow the steps below.

  1. Remove the retaining ring using the removal tool. Hook the split in the ring at the opening and pull it out of the recess in the sensor end-cap.

  2. The upper mesh insulator disk, nickel-copper mesh, and the lower mesh insulator disk will come out easily once the retaining ring is removed.

Item No. Description Part image Assembled
antifouling mesh		 Buffer tube
interface assembly

1

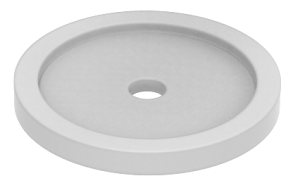

Lower mesh insulator disk
lower mesh

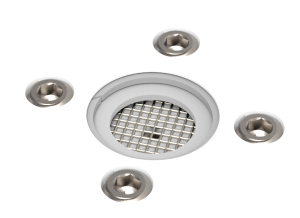

assembled mesh

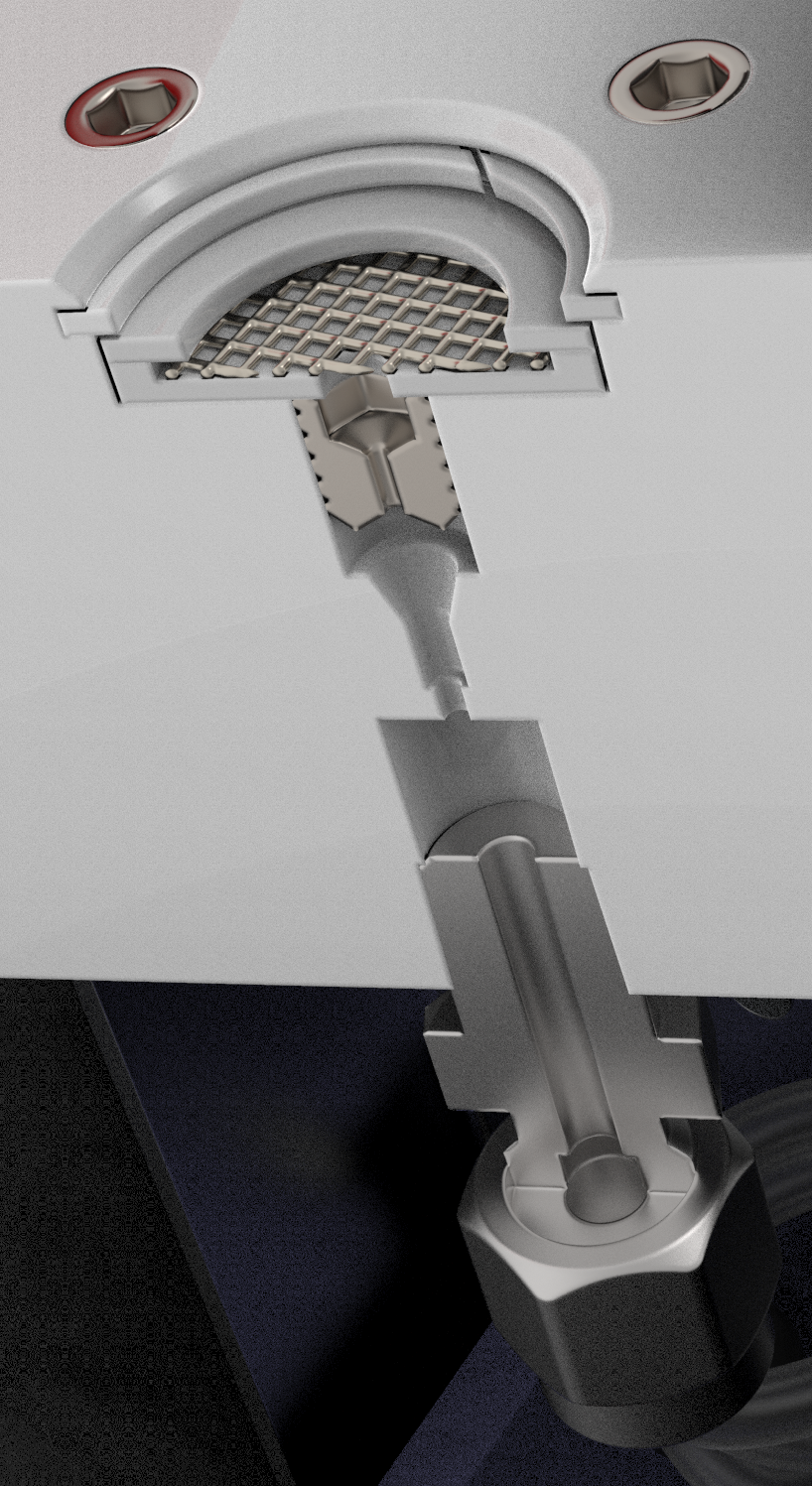

rbrquartz q plus 69 cropped

2

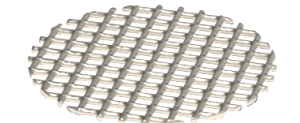

Nickel-copper mesh
nickel copper mesh

3

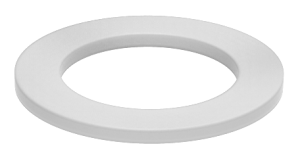

Upper mesh insulator disk
upper mesh

4

Retaining ring
retaining ring

Replacement parts are available in the support kit.
