RBRquartz³ Q interface
The RBRquartz³ Q instrument provides an internal USB-C port and, depending on the end-cap type, an external MCBH-6-MP connector.
|
Refer to Opening and closing the instrument for details on accessing connection ports. Refer to Specifications for the external MCBH-6-MP connector pinout diagram. |
USB-C connection
Remove the battery end-cap to access the USB-C port located inside the instrument body.
A USB-C desktop cable is supplied in the instrument support kit. Use this cable to download data from the instrument to your computer.

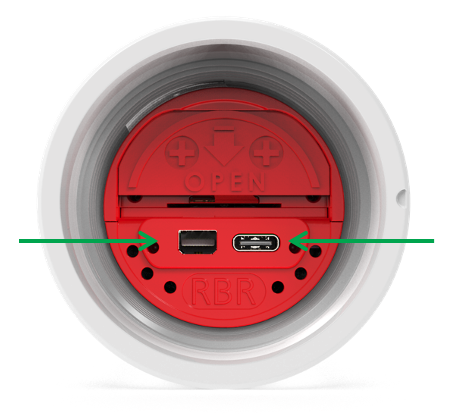

Mini-display port
The mini-display port is located next to the USB-C port. This is the port to use for the umbilical cable from the connectorised end-cap.
End-cap types
RBR standard instruments are compatible with three different end-caps. These end-caps are interchangeable between instruments.

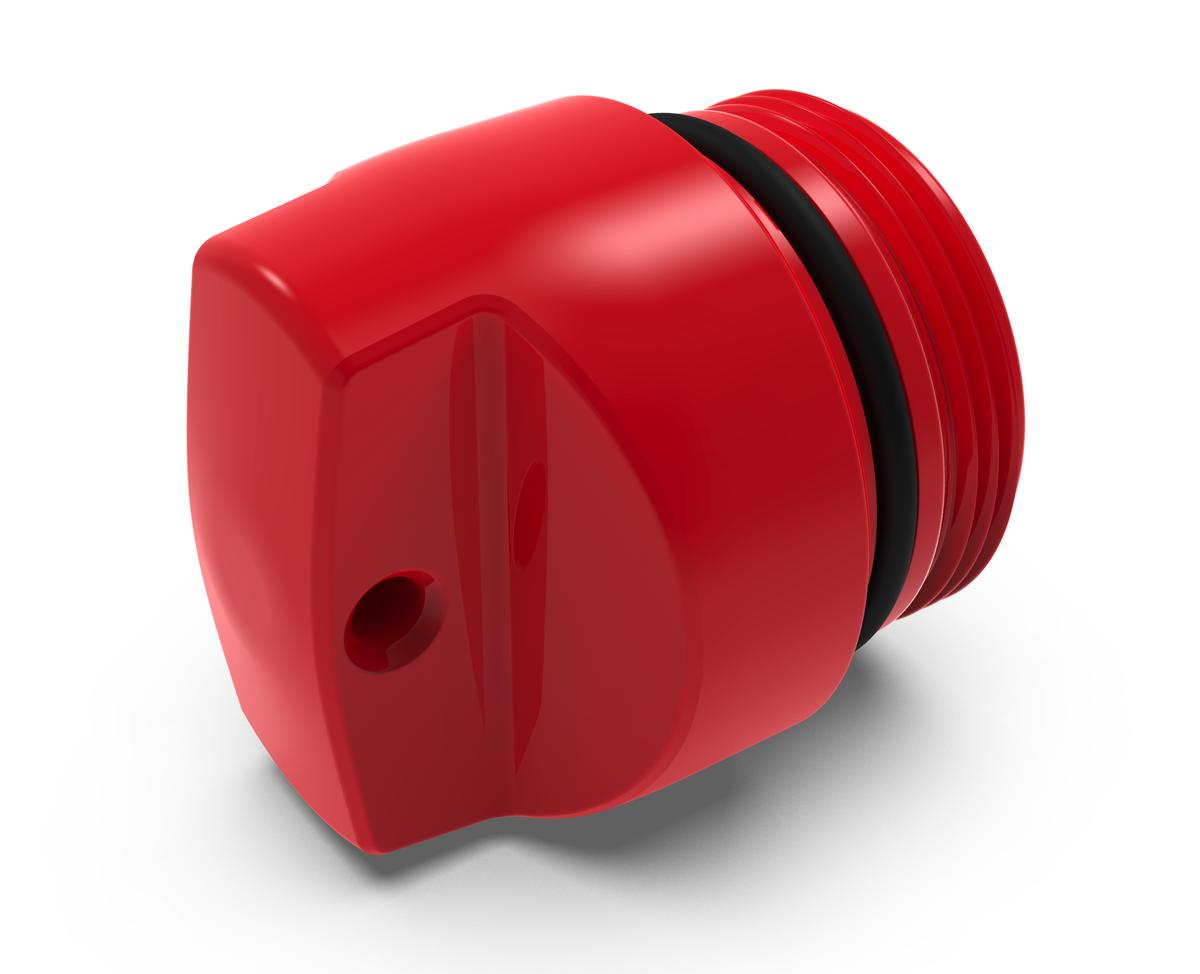

Figure 2. Standard end-cap
|

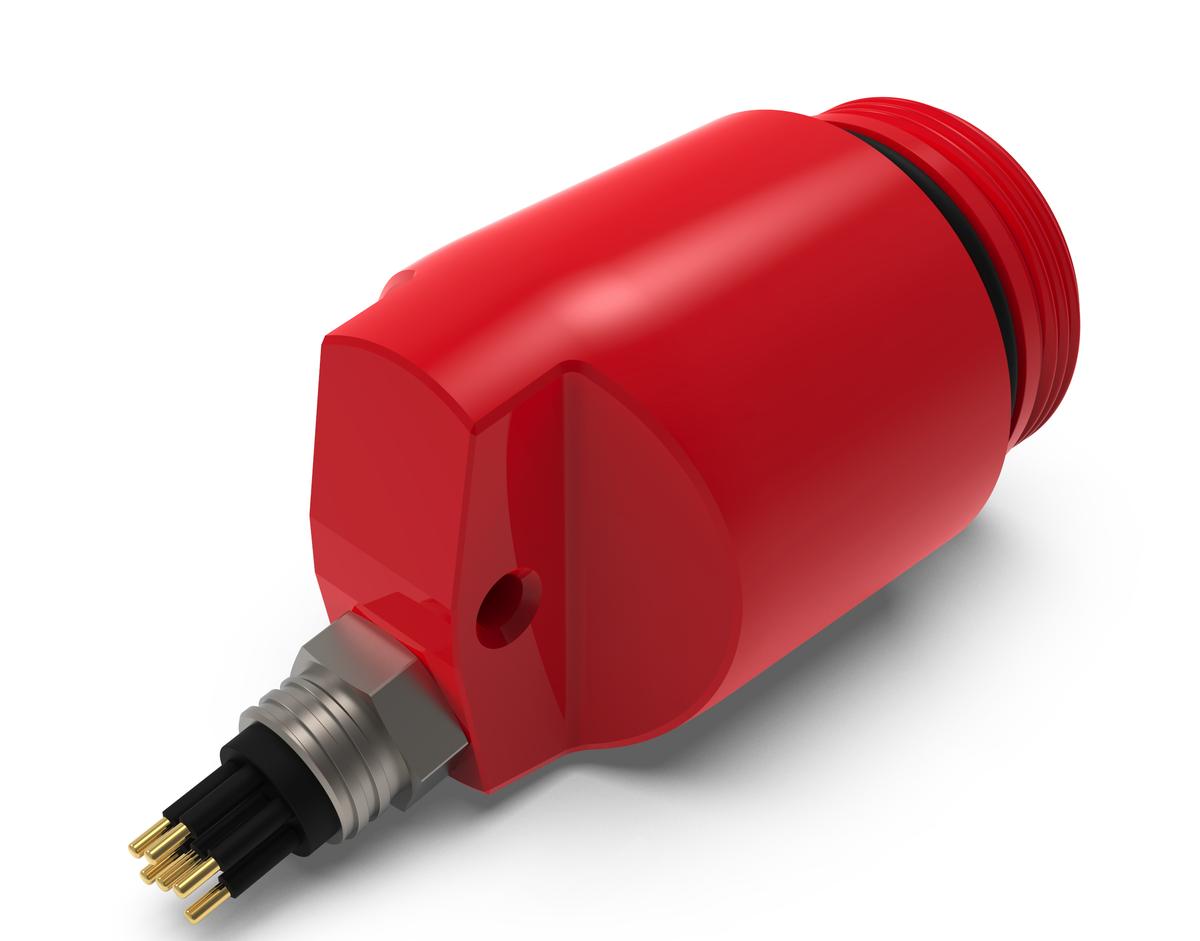

Figure 3. Connectorised end-cap
|

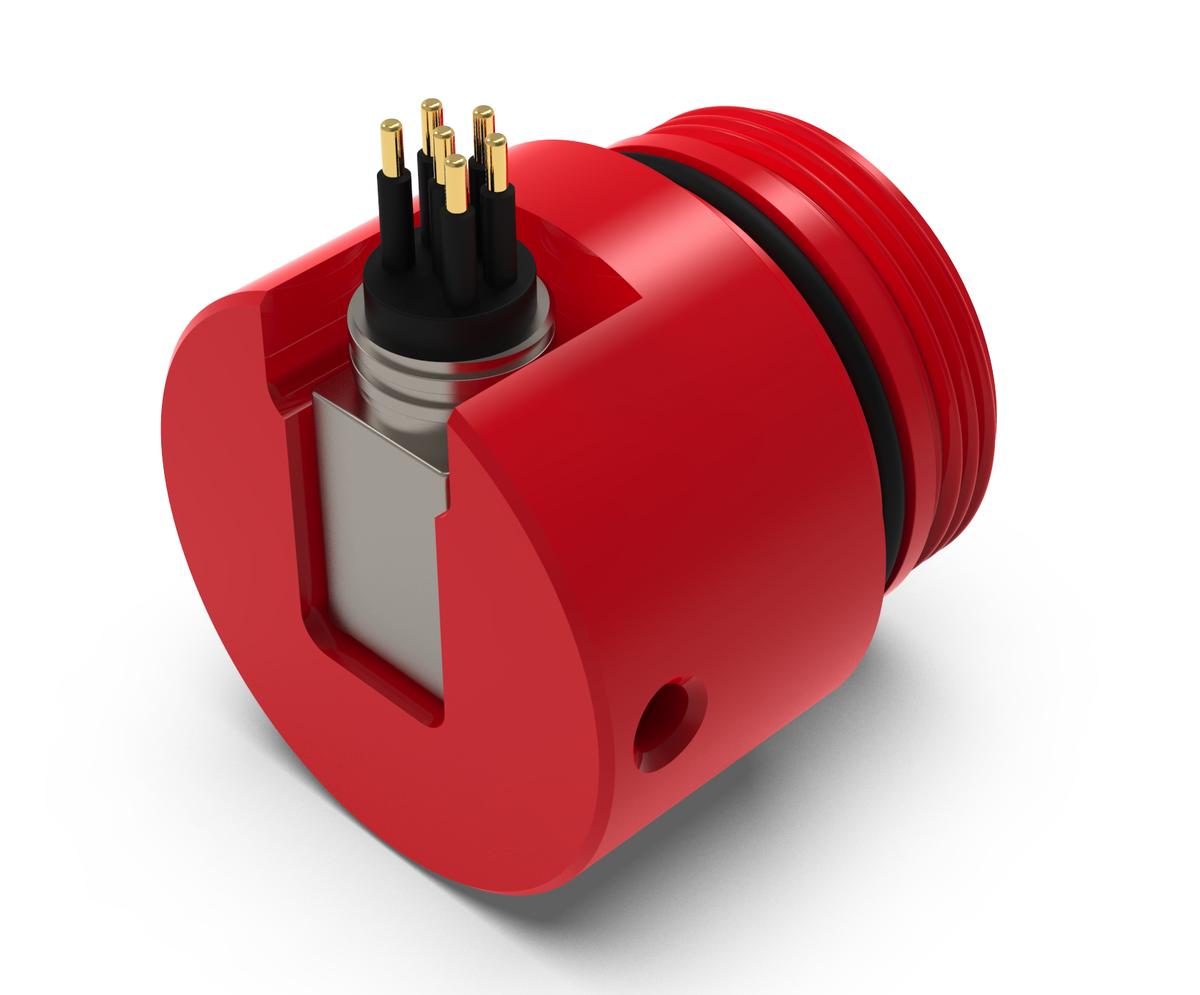

Figure 4. Right-angle connectorised end-cap
|

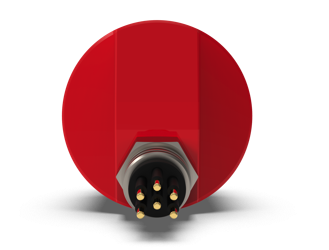

MCBH connectors
Only connectorised battery end-caps have the external MCBH-6-MP connector. Depending on your needs, they may be wired to support the USB, RS-232, or RS-485 communication (selected at the time of order).
|
Patch cables and underwater extension cables are sold separately. See RBR Cable Guide for details. |
