RBRquadrante

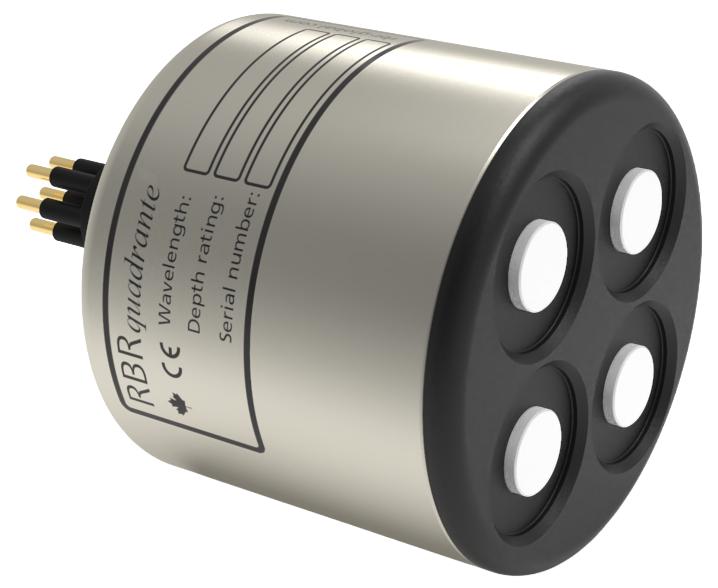

The RBRlegato⁴ can integrate the RBRquadrante sensors (Fig. 9). This four-channel radiometer supports multiple radiation measurements (combinations of PAR and rad sensors) within the same sensor package.
Optical radiometry
| Parameter | Value |
|---|---|
Dynamic range |
>5.5 decades (nominal) |
Initial accuracy1 |
±2% |
Linearity |
±1% |
Operating temperature range |
-5°C to 35°C |
Cosine response error (water) |
±5% at 0-60°C , ±10% at 61-82°C |
Azimuth error (water) |
±1.5% at 45°C |
Out-of-band rejection2 |
>25dB (typical), OD 2.5 |
1 RBR calibrates radiometers with NIST traceable references.
2 Out-of-band rejection is wavelength-dependent for narrow-band radiometers.
PAR
| Parameter | Value |
|---|---|
Wavelength range |
400nm to 700nm |
Full scale range |
0 to 5000µmol/m²/s (minimum) |
Resolution |
±0.010µmol/m²/s |
Narrow-band channels
| Parameter | Value |
|---|---|
Centre wavelengths (CWL)1 |
380 / 413 / 445 / 475 / 488 / 508 / 532 / 560nm |
Full width at half-maximum (FWHM) |
10nm (25nm for CWL 475nm) |
Full scale range |
0 to ≥200µW/cm²/nm (full sun) |
Resolution2 |
±0.001µW/cm²/nm |
1 Other CWL options within the 300-1100nm range are available upon request. Contact RBR for more information.
2 Resolution is wavelength-dependent for narrow-band radiometers.
|
Dark offset is internally temperature-compensated. |
