RBRcoda chl-a
The RBRlegato⁴ can integrate the RBRcoda chl-a sensors (Fig. 5). This realtime chlorophyll-a sensor is designed to ensure sensitivity to low concentrations across the measurable range (0-500µg/L)

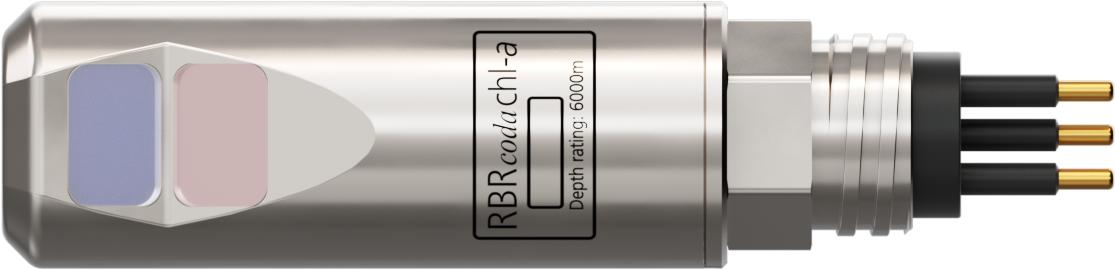

Fig. 5. The RBRcoda chl-a.
Optical
| Parameter | Value |
|---|---|
Linearity, R2 |
0.99 |
Initial accuracy |
5% |
Chlorophyll-a
| Parameter | Value |
|---|---|
Wavelength |
470nm/695nm (excitation/emission) |
Calibrated range1 |
0-50µg/L |
Measurement range |
0-500µg/L |
Detection limit1 |
0.020µg/L |
1 Scaled for the in vivo fluorescence response.
