RBRcoda T.ODO

The RBRlegato⁴ can integrate the RBRcoda T.ODO sensors, shown in Fig. 3. The measurement principle of optical dissolved oxygen sensors is based on the luminescence quenching by oxygen.

Store the sensor in the dedicated storage cap, included with the instrument. Rehydrate for five days before deployment. See RBRcoda T.ODO care and maintenance for more information.

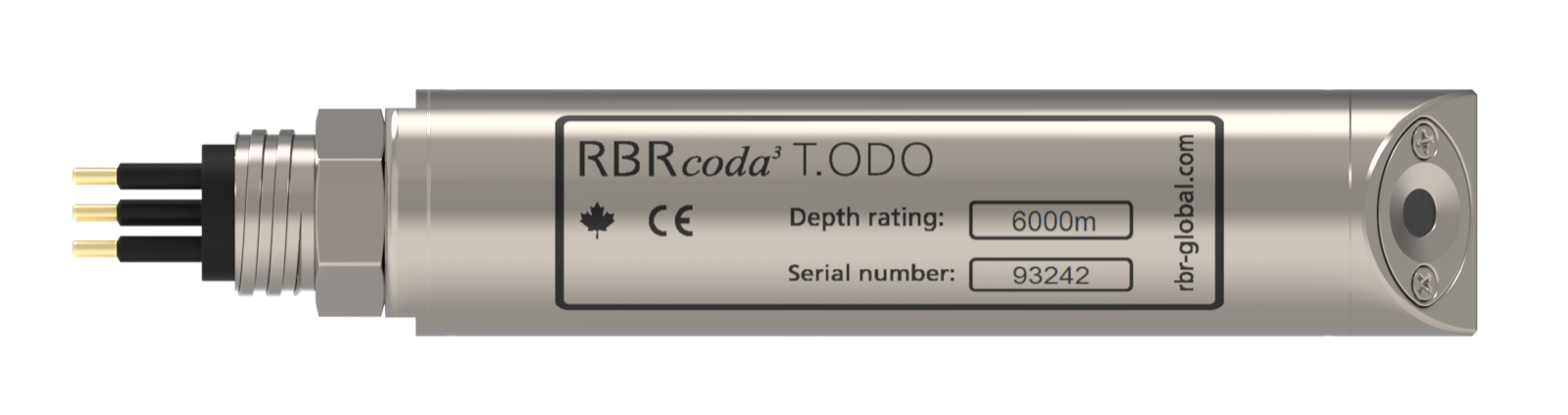

Fig. 3. Side view of the RBRcoda T.ODO.

Parameter	Value
Measurement range	0-1000μmol/L
Calibrated range Concentration Saturation Temperature	0-500μmol/L 0-120% 1.5 to 30°C
Initial accuracy For \| fast For standard, \| slow	Maximum of ±8μmol/L or ±5% Maximum of ±2μmol/L or ±1.5%
Resolution For \| fast For standard For \| slow	<1μmol/L (saturation 0.4%) <0.5µmol/L (saturation 0.2%) <0.1μmol/L (saturation 0.04%)
Time constant	<1s \| fast, <8s standard, <30s \| slow

Parameter

Value

Measurement range

0-1000μmol/L

Calibrated range
Concentration
Saturation
Temperature

0-500μmol/L
0-120%
1.5 to 30°C

Initial accuracy
For | fast
For standard, | slow

Maximum of ±8μmol/L or ±5%
Maximum of ±2μmol/L or ±1.5%

Resolution
For | fast
For standard
For | slow

<1μmol/L (saturation 0.4%)
<0.5µmol/L (saturation 0.2%)
<0.1μmol/L (saturation 0.04%)

Time constant

<1s | fast, <8s standard, <30s | slow

Optical dissolved oxygen measurements require pressure correction for highest accuracy. When installed on an instrument with a pressure sensor, this correction is done automatically.
