Pressure (D)

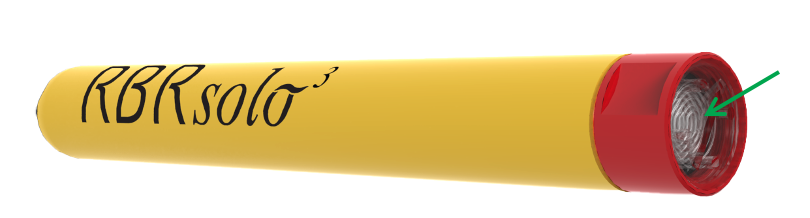

The RBRsolo³ D and RBRduet³ T.D instruments (including their | deep, | fast, | tide, and | wave variants) use the piezoresistive pressure sensor. The sensor is protected by a clear plastic guard. During deployments, always orient it downwards to reduce debris collecting on the membrane of the pressure sensor.
|
| tide16 and | wave16 variants take averages of pressure readings over extended periods of time, providing accurate tide level data. | wave16 instruments can also obtain wave characteristics and detect infrequent phenomena, like boat wakes. |
| Parameter | Value |
|---|---|
Range1 |
20 / 50 / 100 / 200 / 500 / 1000dbar (plastic) |
Initial accuracy |
±0.05% full scale |
Resolution |
<0.001% full scale |
Typical stability |
±0.05% full scale / year |
Time constant |
<10ms |
1 Recommended depth for wave measurements is less than 50m.
