Pressure (D)

RBR CTD | uv instruments use piezoresistive pressure (depth) sensors.

The sensor is protected by a clear plastic guard. During moored deployments with sediment in the environment, avoid orientations with the pressure sensor facing directly upwards.

Parameter	Value
Range	20 / 50 / 100 / 200dbar
Initial accuracy	±0.05% full scale
Resolution	<0.001% full scale
Typical stability	±0.05% full scale / year
Time constant	<10ms

Parameter

Value

Range

20 / 50 / 100 / 200dbar

Initial accuracy

±0.05% full scale

Resolution

<0.001% full scale

Typical stability

±0.05% full scale / year

Time constant

<10ms

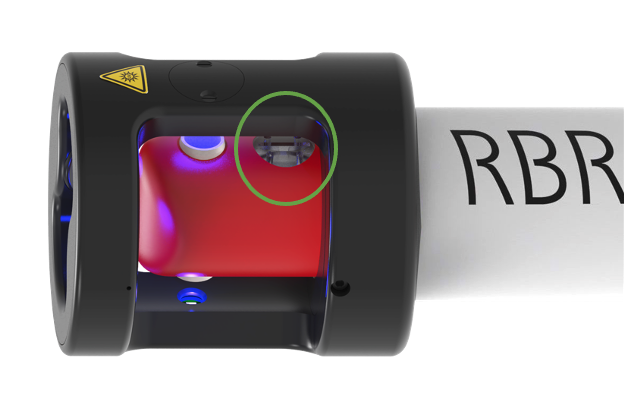

Fig. 1. CTD | uv cell, with pressure sensor circled
