DB9 connectors
RBR smart sensors use RS-232 patch cables (see Fig. 13) for connecting to your computer and power supplies. Depending on the ordered configuration, your patch cable may have an embedded converter and either a USB connector or a DB9-F connector. Refer to the RBR Cable Guide for available options. |

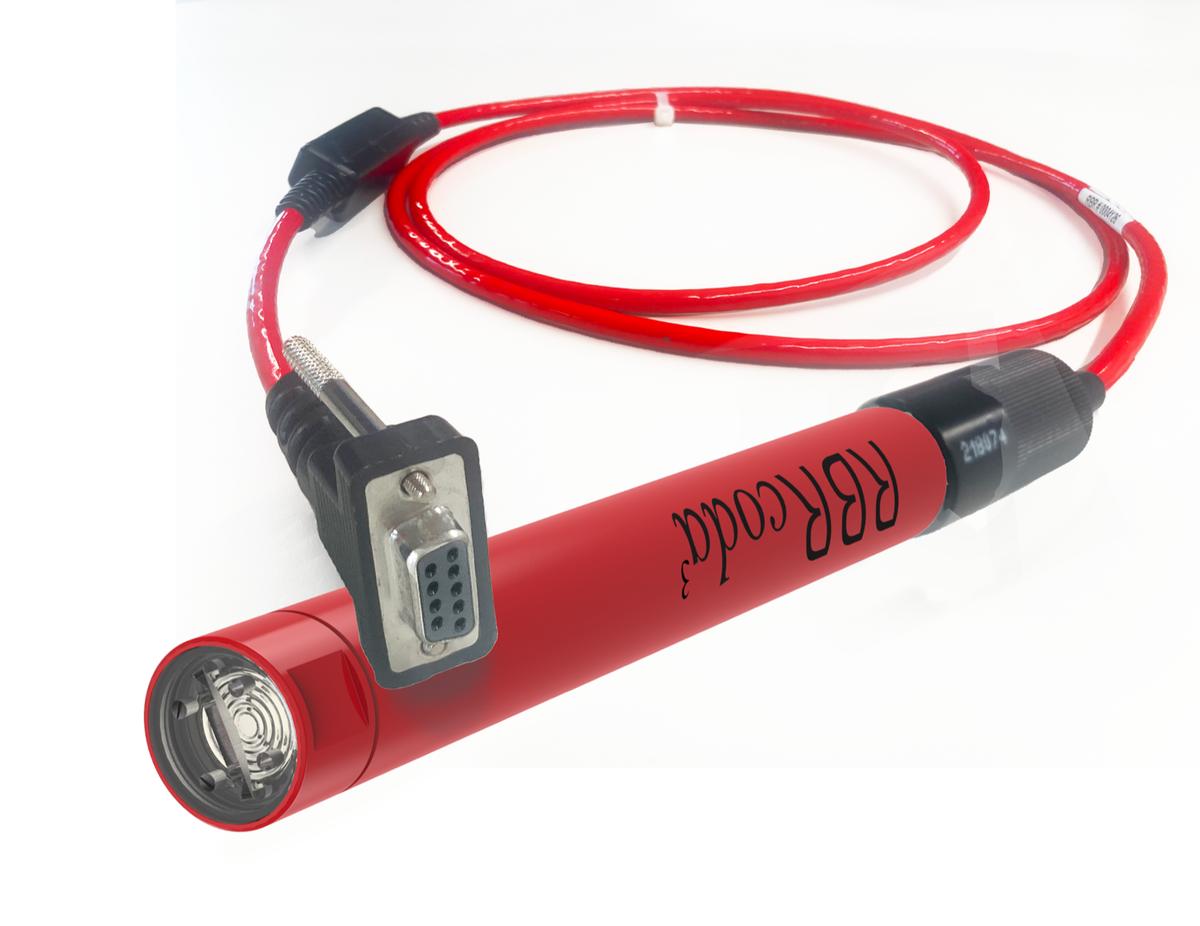

Fig. 13. RBRcoda³ D with an RS-232 cable, DB9-F connector
|

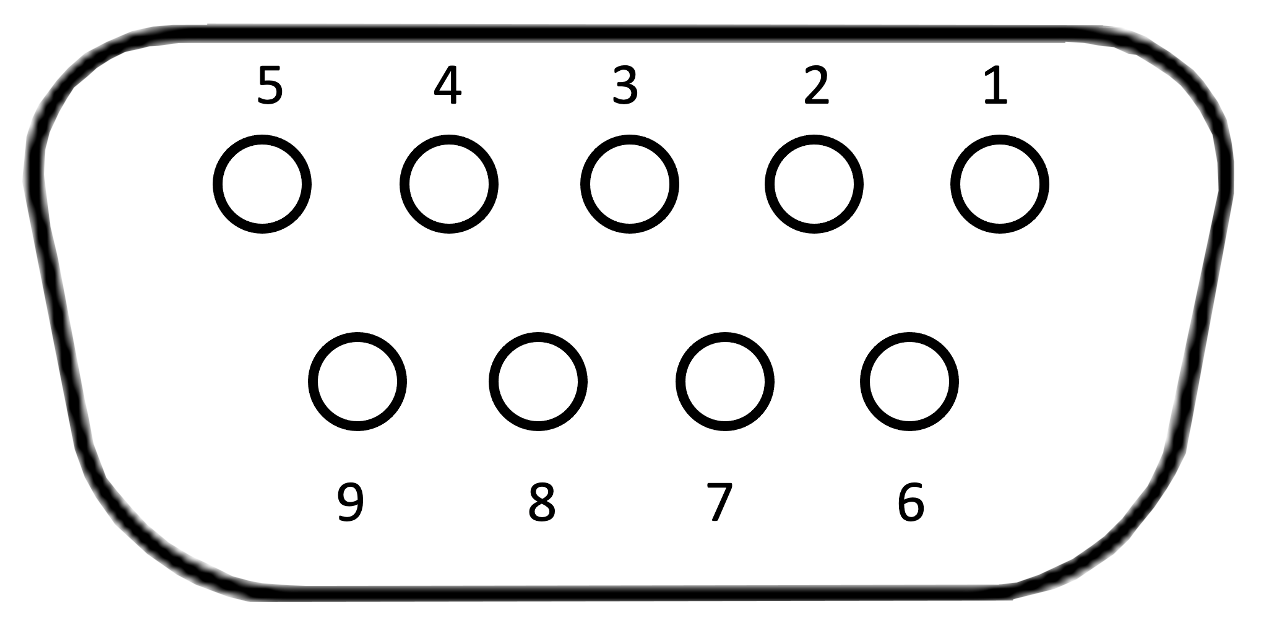

Patch cable DB9-F connector pinout
|
Pin No. |
RS-232 |
1 |
N/C |
|
2 |
From the instrument (Tx) |
|
3 |
Into the instrument (Rx) |
|
4 |
N/C |
|
5 |
Drain/Ground |
|
6 |
Ground |
|
7 |
Auxiliary |
|
8-9 |
N/C |
