Micro-Fit connector

The dry-bay variant of the RBRtridente uses a Micro-Fit six-pin connector for integrating inside the hull of the glider.

OEMtridente with cable.png

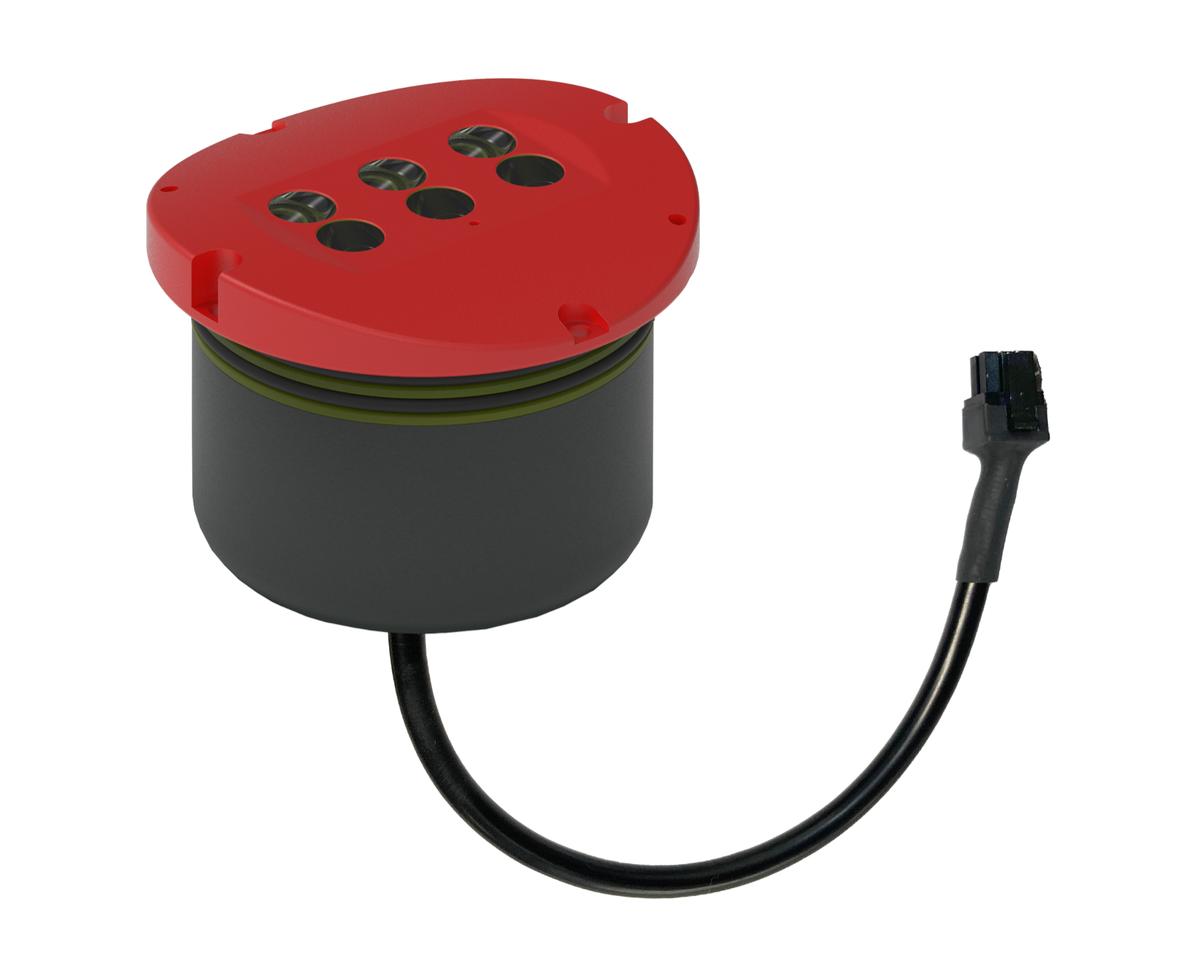

Fig. 7.    An RBRtridente (dry-bay) with a Micro-Fit connector
Screenshot 2024-08-16 at 11.02.54 AM.png

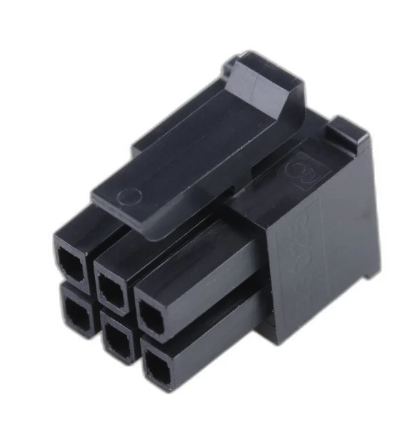

Fig. 8.    A Micro-Fit connector

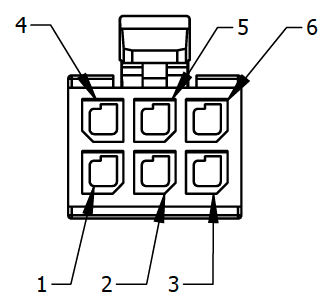

Micro-Fit connector pinout

Screenshot 2024-08-16 at 9.46.02 AM.png

Pin No.

Signal

1

Ground

2

Power

3

RS-232 data from the sensor

4

RS-232 data to the sensor

5

Chassis ground

6

N/C
