MCBH connector
Standard RBRtridente and RBRquadrante have an MCBH-6-MP connector to connect to your computer or to use for integrations with the RBR standard instruments. The data will stream via a patch cable (ordered separately).
|

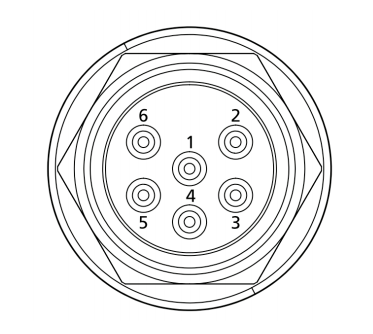

Pin No. |
RS-232 |
1 |
Ground |
|
2 |
Power |
|
3 |
From the sensor (Tx) |
|
4 |
Into the sensor (Rx) |
|
5 |
N/C |
|
6 |
N/C |

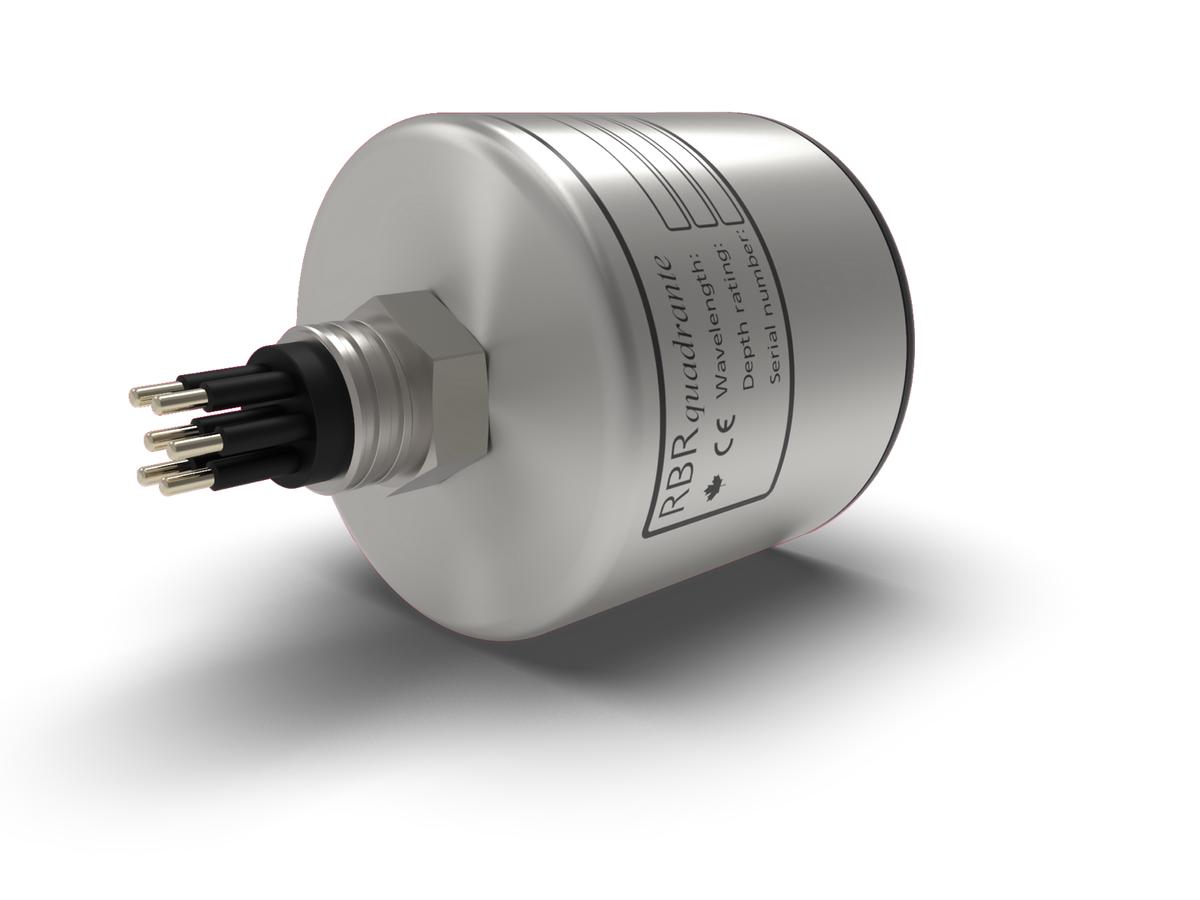

Fig. 6. An RBRquadrante with an MCBH connector
