RBRcoda³ T.ODO

The RBRlegato³ can integrate the RBRcoda³ T.ODO sensors. The measurement principle of optical dissolved oxygen sensors is based on the luminescence quenching by oxygen.

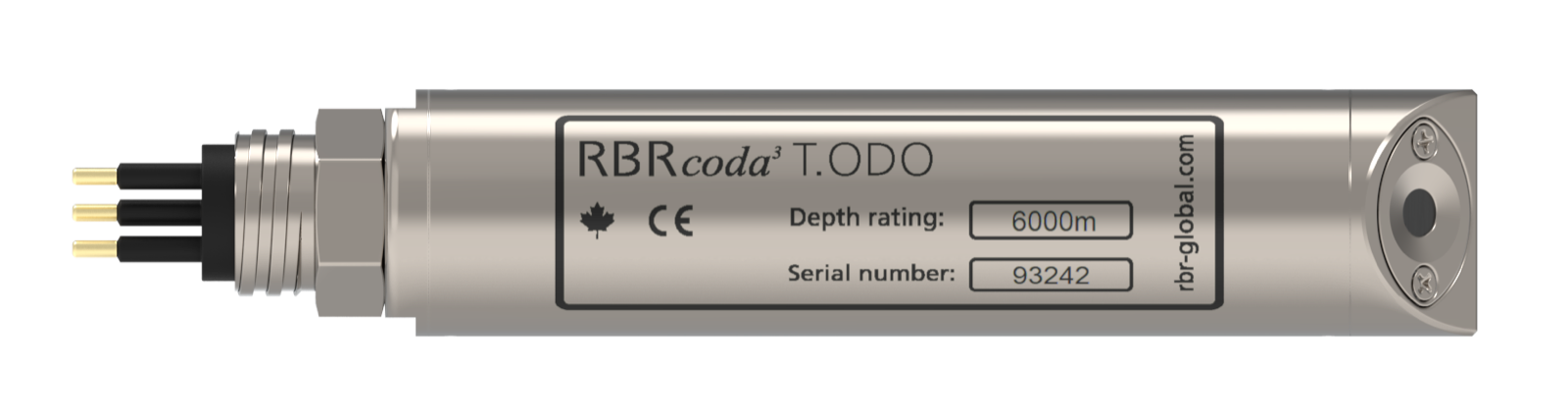

Fig. 1. RBRcoda³ T.ODO

Parameter	Value
Measurement range	0-1000μmol/L
Calibrated range Concentration Saturation Temperature	0-500μmol/L 0-120% 1.5 to 30°C
Initial accuracy For \| fast For standard, \| slow	Maximum of ±8μmol/L or ±5% Maximum of ±2μmol/L or ±1.5%
Resolution For \| fast For standard For \| slow	<1μmol/L (saturation 0.4%) <0.5µmol/L (saturation 0.2%) <0.1μmol/L (saturation 0.04%)
Time constant	<1s \| fast, <8s standard, <30s \| slow

Parameter

Value

Measurement range

0-1000μmol/L

Calibrated range
Concentration
Saturation
Temperature

0-500μmol/L
0-120%
1.5 to 30°C

Initial accuracy
For | fast
For standard, | slow

Maximum of ±8μmol/L or ±5%
Maximum of ±2μmol/L or ±1.5%

Resolution
For | fast
For standard
For | slow

<1μmol/L (saturation 0.4%)
<0.5µmol/L (saturation 0.2%)
<0.1μmol/L (saturation 0.04%)

Time constant

<1s | fast, <8s standard, <30s | slow

Optical dissolved oxygen measurements require pressure correction for highest accuracy. When installed on an instrument with a pressure sensor, this correction is done automatically.

Store the sensor in the dedicated storage cap, included with the instrument. Rehydrate for five days before deployment. See RBRcoda³ T.ODO care and maintenance for more information.
