Conductivity, temperature, and pressure

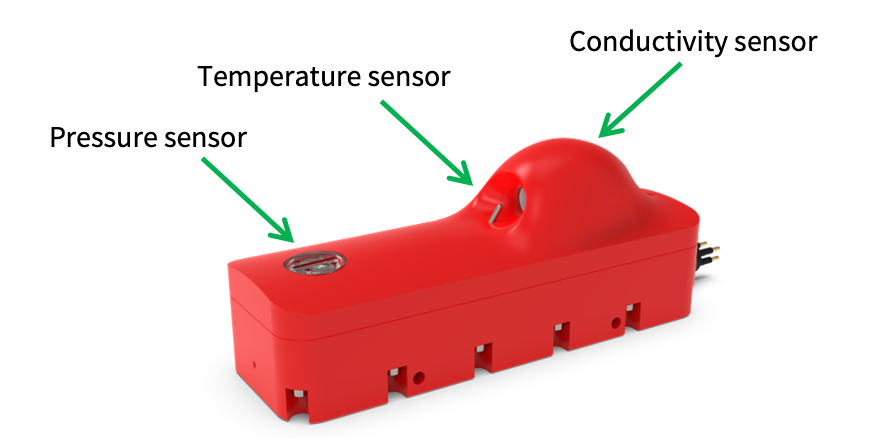

The RBRlegato³ C.T.D integrates conductivity, temperature, and pressure sensors in one uniquely designed body, optimised for flow dynamics.
Conductivity sensor
| Parameter | Value |
|---|---|
Range |
0 to 85mS/cm |
Initial accuracy |
±0.003mS/cm |
Resolution |
<0.001mS/cm |
Typical stability |
±0.010mS/cm per year |
|
Accuracy of conductivity measurements is affected by objects within 15cm of the sensor, especially if they are conductive. Metal deployment frames are a good example. This proximity effect decreases with distance. Calibration procedure uses the predetermined k-factor to take into account static elements, such as other sensors or glider body. |
Temperature sensor
| Parameter | Value |
|---|---|
Range |
-5°C to 42°C |
Initial accuracy |
±0.002°C (-5 to +35°C) |
Resolution |
0.00005°C |
Typical stability |
±0.002°C/year |
Time constant |
<1s (standard) <0.1s ( | fast16) |
Pressure sensor
| Parameter | Value |
|---|---|
Range |
1000dbar |
Initial accuracy |
±0.05% full scale |
Resolution |
<0.001% full scale |
Typical stability |
±0.05% full scale |
Time constant |
<0.01s |
