Open the RBRfermata

Models with quick-release handles

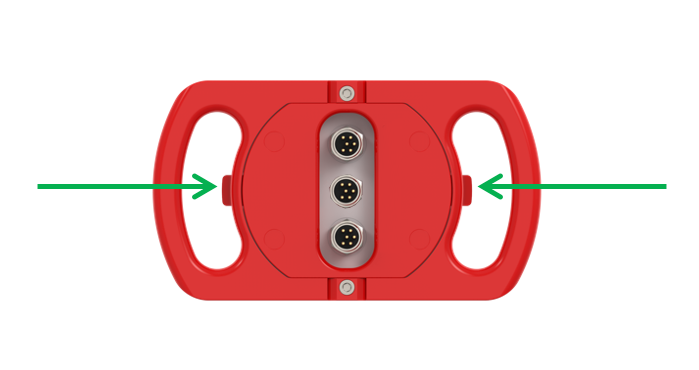

  1. Locate two release tabs on the opposite sides of the battery end-cap.

    three connectors

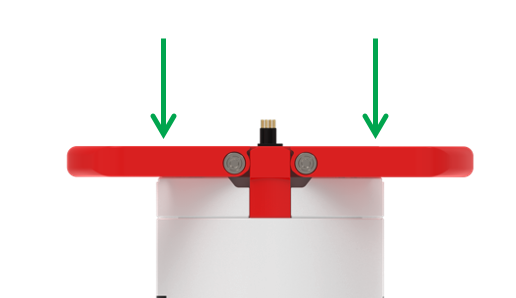

  1. Push at the tabs from the top to release the end-cap handles.

    screen shot 2021 07 07 at 10 52 40 am

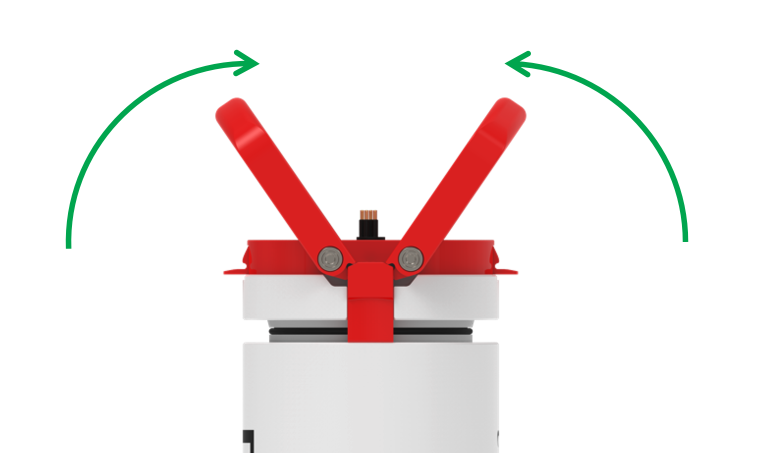

  1. Move the handles up from both sides.

    screen shot 2021 07 07 at 10 54 05 am

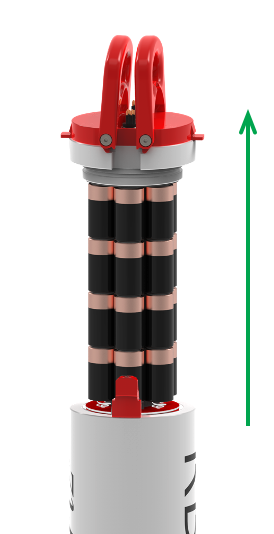

  1. Firmly grip both battery end-cap handles and pull them up to remove the battery carrousel.

    screen shot 2022 03 29 at 10 13 47 am

Models with low-profile handles

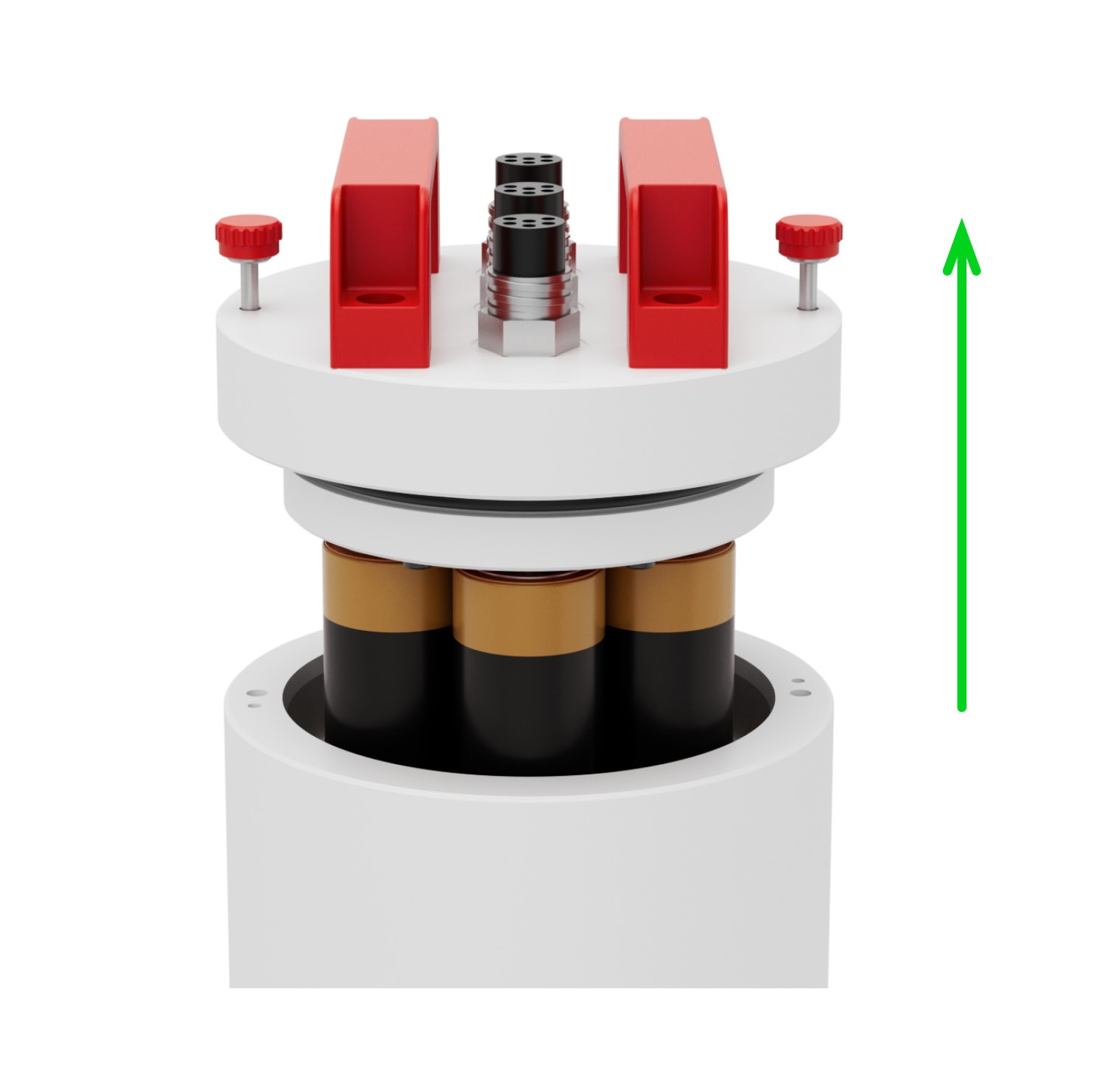

  1. Loosen the two thumb screws in the battery end-cap until the carrousel can be separated from the housing.

  2. Firmly grip both battery end-cap handles and pull them up to remove the battery carrousel from the housing.
