Close the RBRfermata

Models with quick-release handles

There is only one way to insert the battery end-cap. If it does not latch, rotate the battery carrousel 180 degrees and try again.

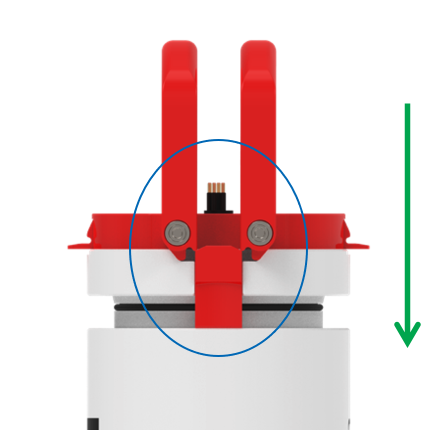

  1. Align the battery end-cap with the slots on the housing and gently push down to ensure it fits in place.

    screen shot 2021 07 07 at 10 57 02 am

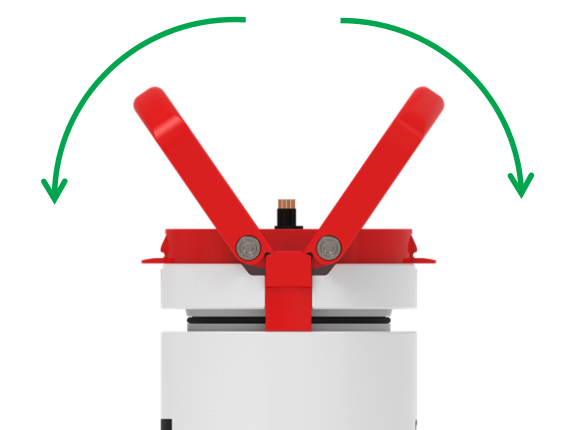

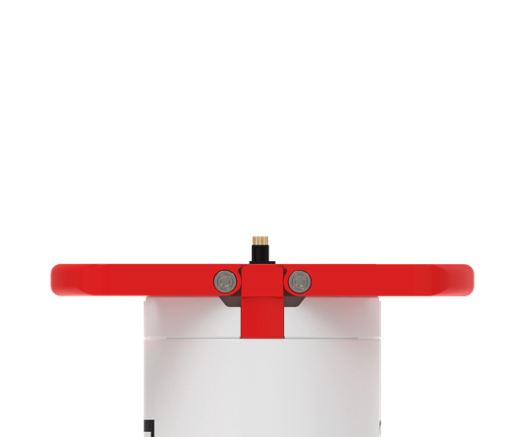

  2. Place both hands on the top of the end-cap handles and gently push them out, towards the opposite sides, until they click.

    screen shot 2021 07 07 at 10 58 38 am

    screen shot 2021 07 07 at 11 01 44 am

Models with low-profile handles

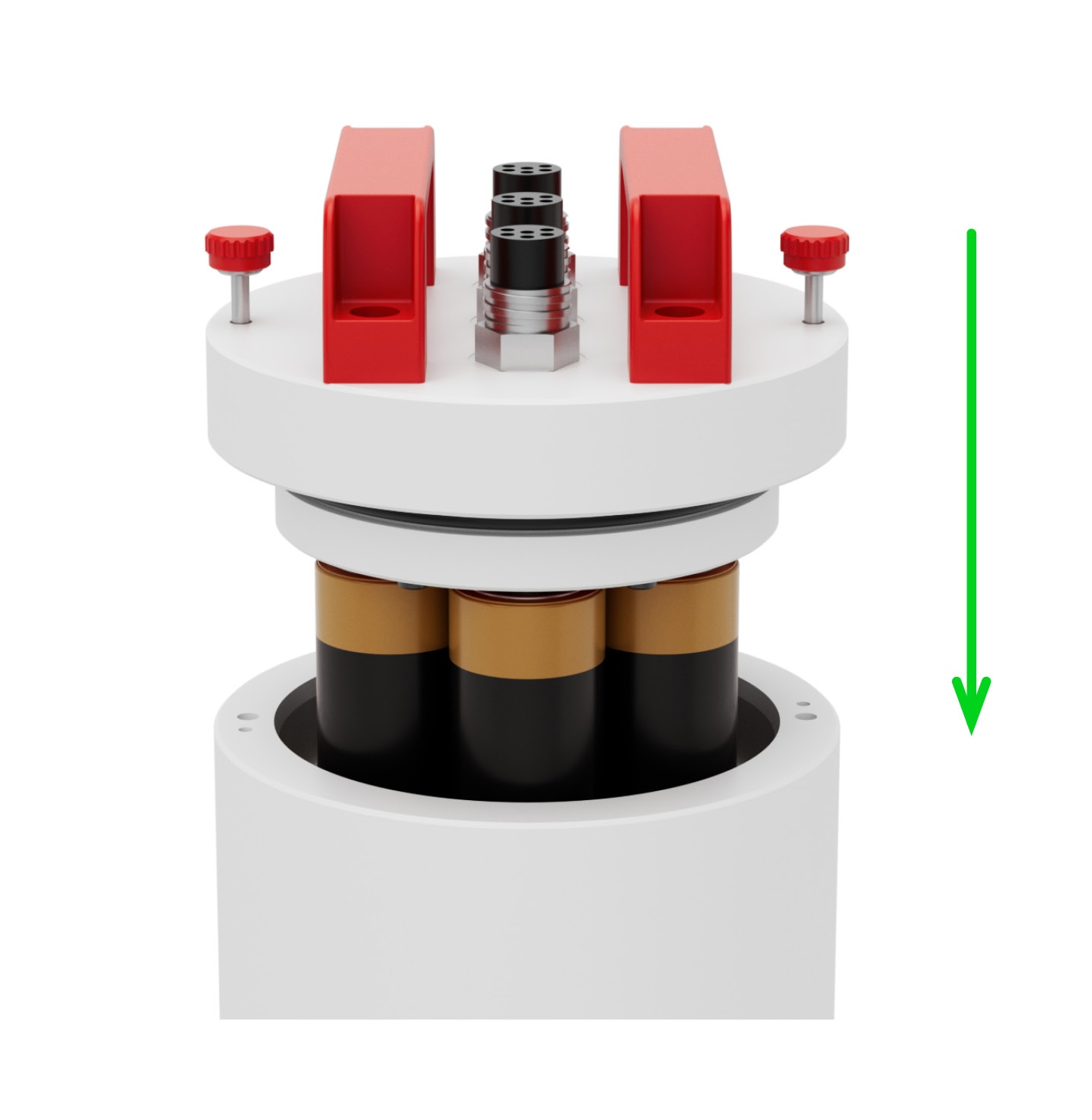

  1. Insert the carrousel into the housing, ensuring the screw holes in the battery end-cap align with the screw holes in the housing.

  2. Gently push down to ensure the carrousel fits in place.

  3. Hand-tighten the two thumb screws until the battery end-cap is secured in the housing.
