Opening and closing the RBRcervello

Opening the controller

  1. Position the RBRcervello upright.

  2. Locate and grab the locking tabs on the cap.

  3. Pull the tabs to their sides.

  4. Pull the internal assembly from the external handle.

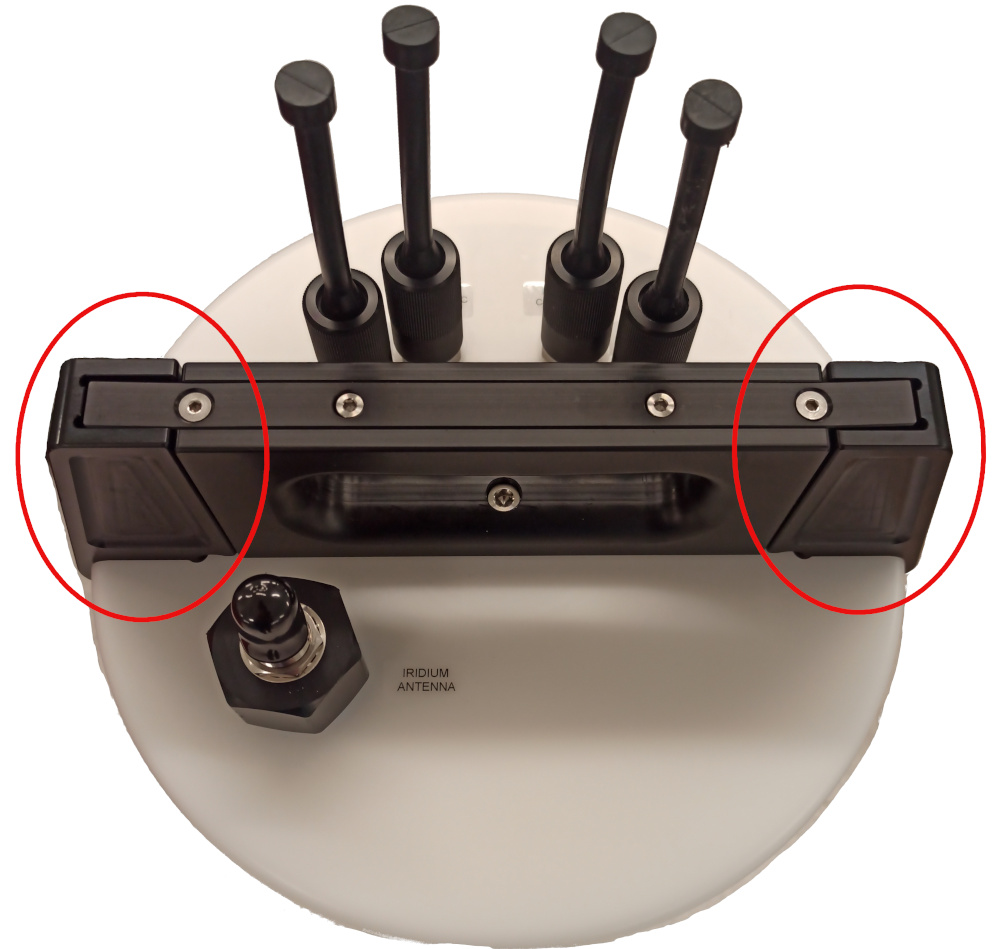

top cervello

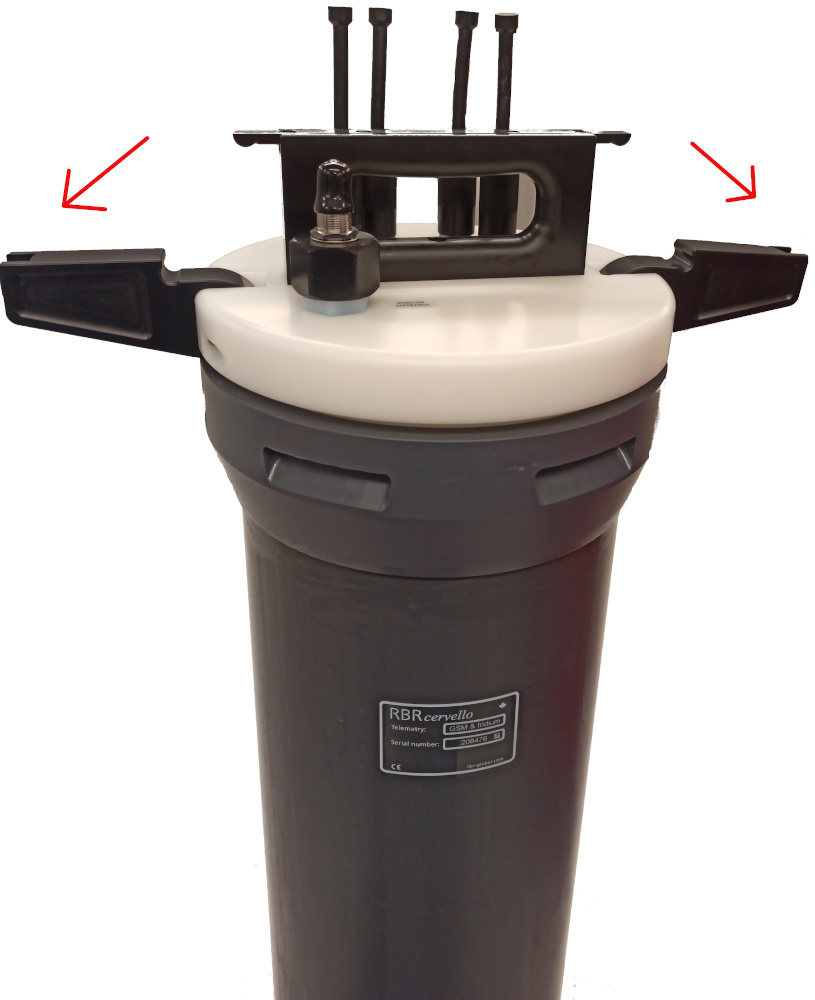

openning cervello

Closing the controller

  1. Position the RBRcervello housing upright.

  2. Insert the internal assembly into the housing.

  3. Align the locking tabs with the openings on the top of the housing.

  4. Press firmly.

  5. Lock the tabs back in place.

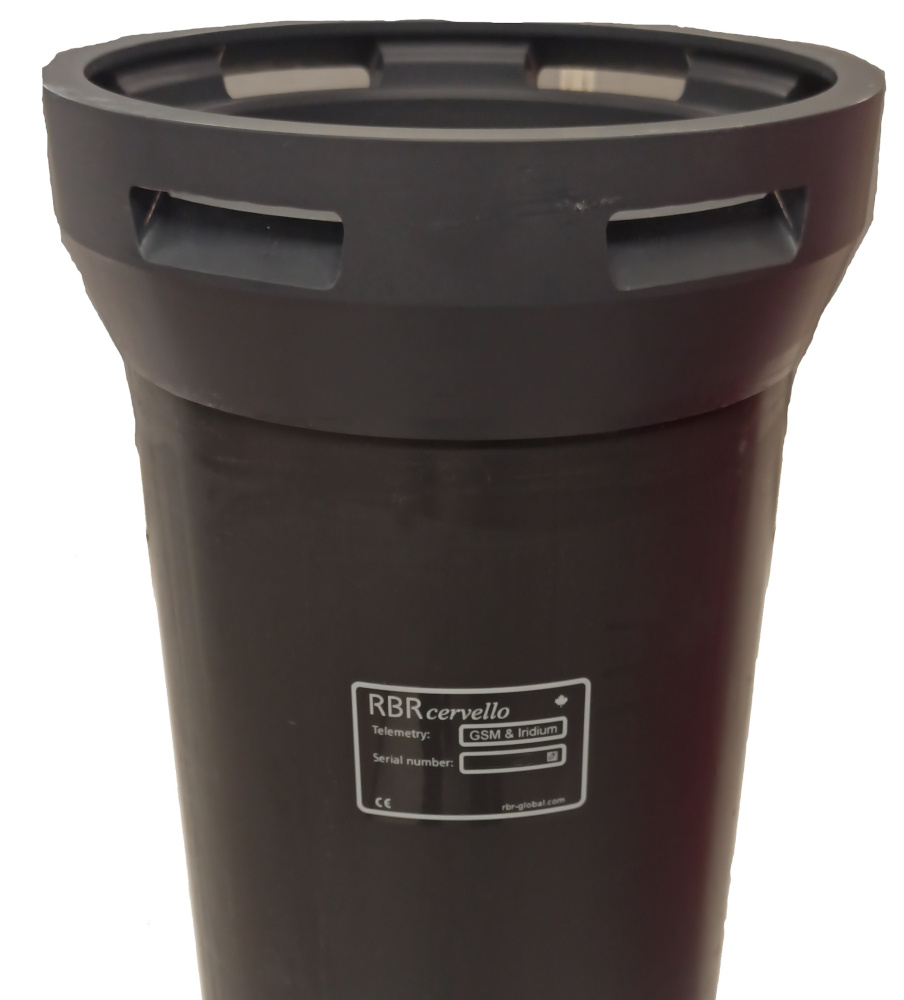

housing cervello

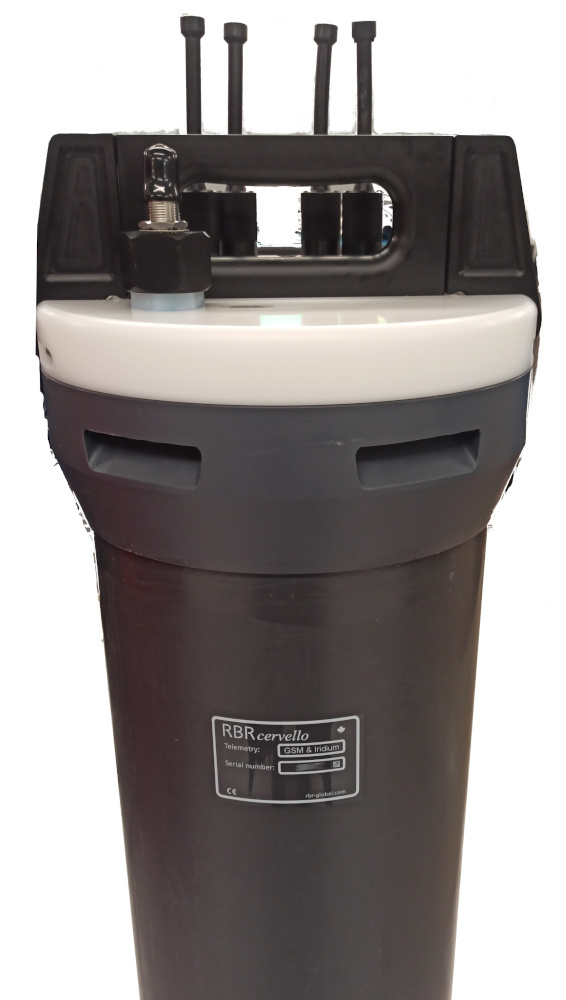

closed cervello
