Opening and closing the instrument

Opening the instrument

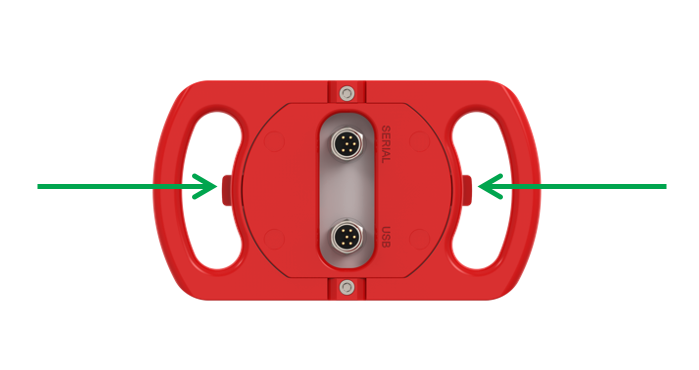

  1. Locate two release tabs on the opposite sides of the battery end-cap.

    screen shot 2021 07 07 at 10 47 59 am

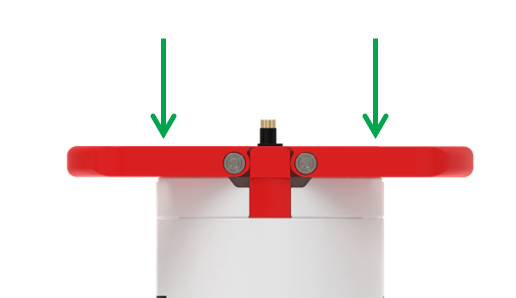

  1. Push at the tabs from the top to release the end-cap handles.

    screen shot 2021 07 07 at 10 52 40 am

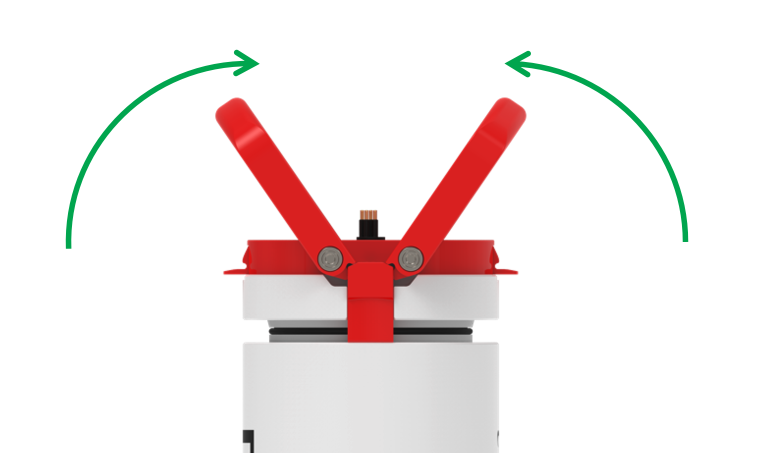

  1. Move the handles up from both sides.

    screen shot 2021 07 07 at 10 54 05 am

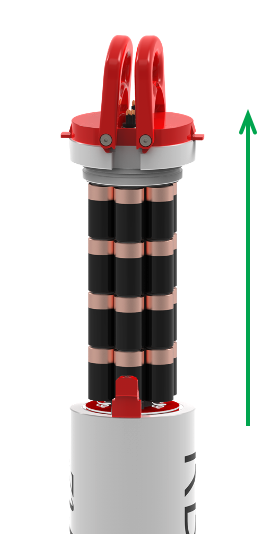

  1. Firmly grip both battery end-cap handles and pull them up to remove the battery carriage.

    screen shot 2022 03 29 at 10 13 47 am

Closing the instrument

There is only one way to insert the battery end-cap. If it does not latch, rotate the battery carriage 180 degrees and try again.

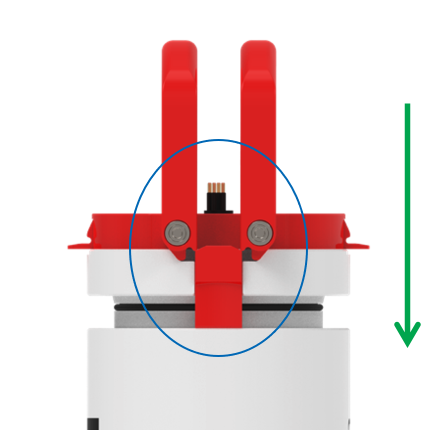

  1. Align the battery end-cap with the slots on the instrument housing and gently push down to ensure it fits in place.

    screen shot 2021 07 07 at 10 57 02 am

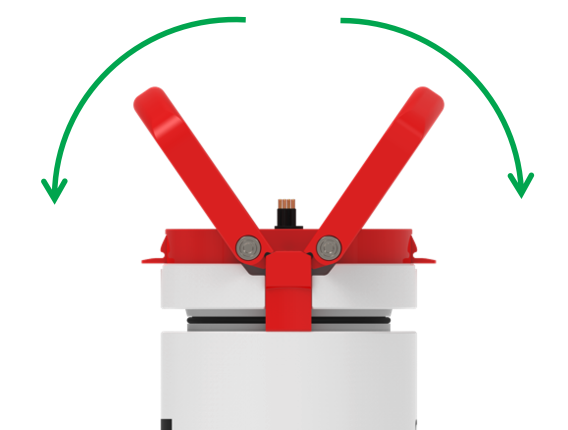

  1. Place both hands on the top of the end-cap handles and gently push them out, towards the opposite sides, until they click.

    screen shot 2021 07 07 at 10 58 38 am

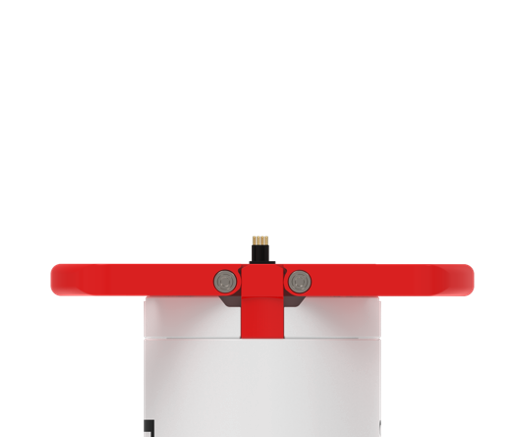

    screen shot 2021 07 07 at 11 01 44 am
