Specifications

Instrument

Specification Description

Storage

240 million

Power

8 AA-type cells

External power

4.5 to 30V

Communications

Internal: USB-C
External: USB and RS-232/RS-485, or Ethernet

Clock drift

±60 second/year

Maximum depth rating

7000m

Housing

Titanium

Diameter

60mm

Length

540mm

Weight

~3.3Kg in air, ~1.7Kg in water

Temperature sensor

Specification Description

Range

-5 to 35°C1

Initial accuracy

±0.002°C

Resolution

0.00005°C

Typical stability

±0.002°C/year

Time constant

~30s (embedded)

1 A wider temperature range is available upon request. Contact RBR for more information.

Pressure sensor

Specification Description

Range

4000 / 7000dbar

Initial accuracy

±0.01% full scale

Resolution

10ppb (at 1Hz sampling rate)

Power supply selection

If connected, an external power supply will be used preferentially over the internal batteries as long as the voltage remains 4.5V or greater. If it drops below 4.5V or complete disconnection occurs, the system automatically switches to the internal batteries.

Clock

The instrument clock is maintained during brief disconnections. This time is usually sufficient to change batteries. If the clock is lost, the time will revert to January 2000. In this case, check the power supply and synchronise with the computer again.

USB-C power

The USB-C cable provides power sufficient for configuration or data download. However, the instrument requires an internal or external power supply to perform sampling.

Deployment estimates

Deployment times are estimated for lithium thionyl chloride batteries based on both memory and internal battery capacity.

Speed Time # of samples

16Hz

~51 days

~42 million

2s

~68 days

~1.5 million

10s

~337 days

~1.5 million

60s

~5.3 years

~1.5 million

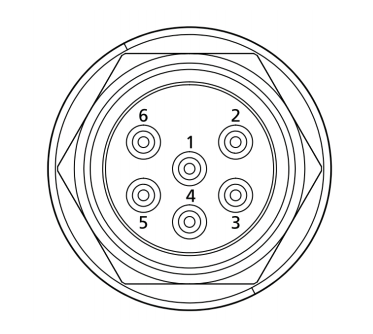

External MCBH-6-MP connector pinout

screen shot 2019 04 26 at 3 06 03 pm

Pin No.

USB

RS-232

RS-485

Ethernet

1

Ground

2

Power 4.5V to 30V

3

N/C

Data output from the instrument (Tx)

TD (A)-

Data output from the instrument (Tx-)

4

VUSB +5V

Data input into the instrument (Rx)

RD (B)+

Data input into the instrument (Rx+)

5

D-

N/C

RD (A)-

Data input into the instrument (Rx-)

6

D+

N/C

TD (B)+

Data output from the instrument (Tx+)

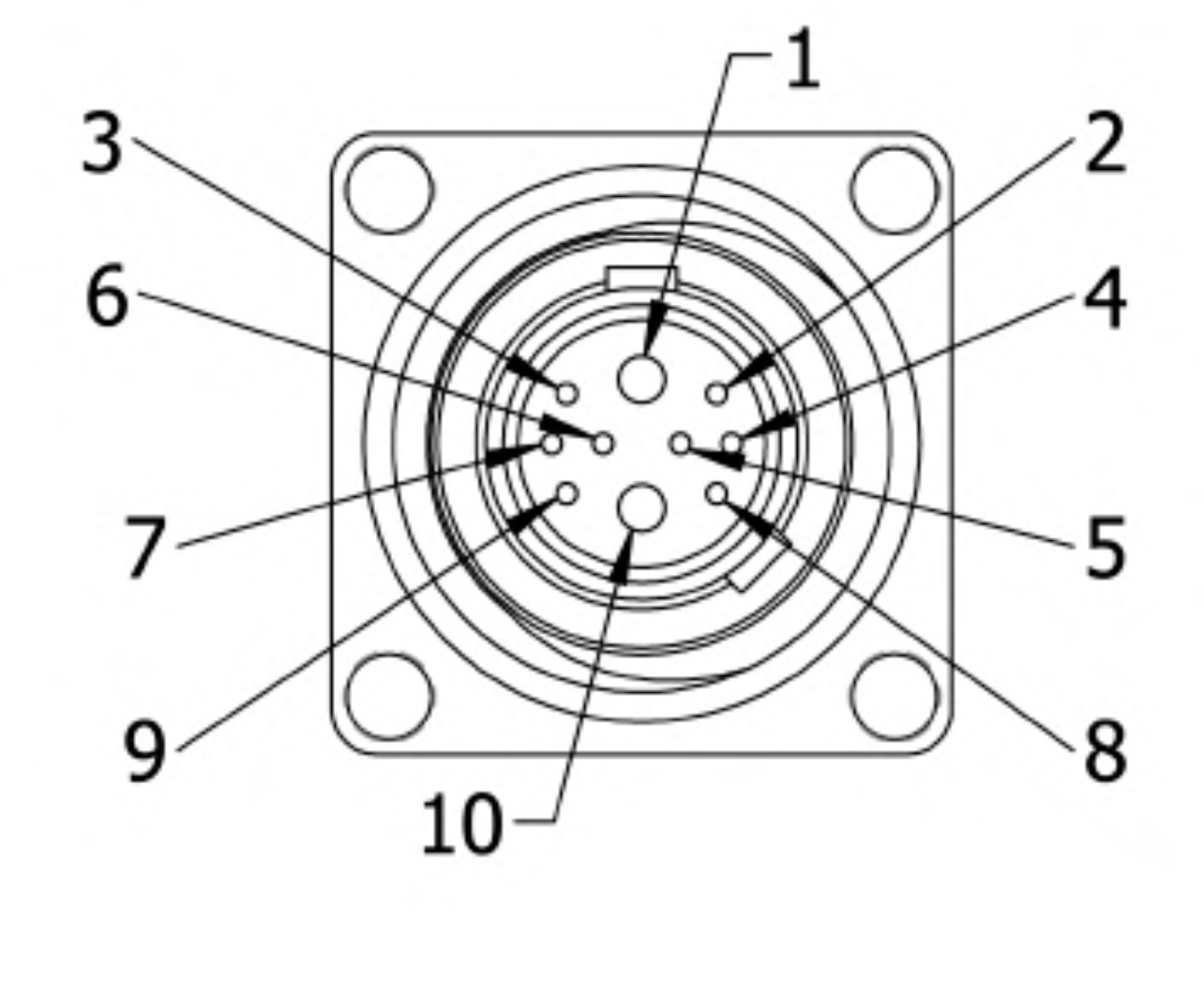

External MINK-10-FCR connector pinout

image2020 11 12 12 18 12

Pin No.

RS-232

RS-485

Ethernet

1

Power 4.5V to 30V

2

N/C

RD(A)

Data output from the instrument (Tx+)

3

N/C

N/C

Data input into the instrument (Rx+)

4

Data output from the instrument (Tx)

RD(B)+

Data output from the instrument (Tx-)

5

Ground

6

Data input into the instrument (Rx)

TD(B)+

N/C

7

N/C

N/C

Data input into the instrument (Rx-)

8

N/C

9

N/C

TD(A)-

N/C

10

Ground
