Specifications
Physical specifications
| Model with quick-release handles | Model with low-profile handles | |
|---|---|---|
Power |
48 D-cells |
48 D-cells |

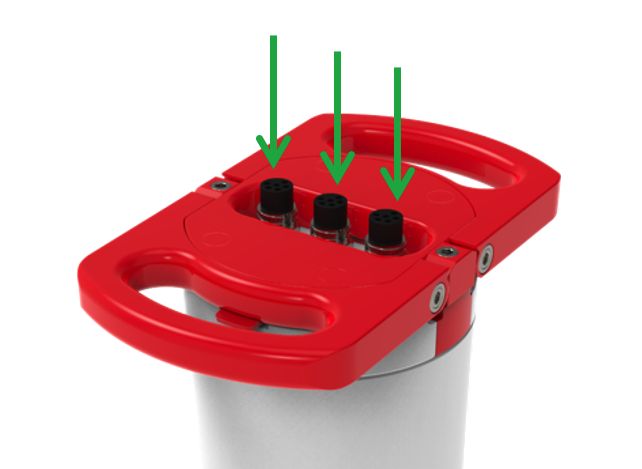

Connectors |
Three MCBH-6-FS |
Three MCBH-6-FS |
Housing |
Plastic or Ti |
Plastic or Ti |
Length |
663mm |
686mm |
Diameter |
Ø140mm |
Ø140mm |
Handles |
250mm x 142mm |
Ø140mm |
Weight (plastic) With lithium batteries With Ni-MH batteries With alkaline batteries |
~14kg in air, ~3kg in water ~17kg in air, ~6kg in water ~16kg in air, ~5kg in water |
~13kg in air, ~3kg in water ~16kg in air, ~6kg in water ~15kg in air, ~5kg in water |
Weight (Ti) With lithium batteries With Ni-MH batteries With alkaline batteries |
~27kg in air, ~16kg in water ~30kg in air, ~19kg in water ~29kg in air, ~18kg in water |
~29kg in air, ~19kg in water ~32kg in air, ~22kg in water ~31kg in air, ~21kg in water |
Depth rating |
750m, 4000m, 8000m |
750m, 4000m, 8000m |
Operating temperature |
-5°C to 35°C |
-5°C to 35°C |
Electrical specifications
| 14V variant | 28V variant | |||
|---|---|---|---|---|
Battery type |
Lithium thionyl chloride |
Nickel metal hydride |
Alkaline |
Lithium thionyl chloride |
Nominal voltage |
14.4V |
14.4V |
18.0V |
28.8V |
Maximum voltage |
14.7V |
17.4V |
18.0V |
29.2V |
Maximum current |
15A |
15A |
4A |
15A |
Capacity |
2.8kWh |
0.5kWh |
0.9kWh |
2.8kWh |

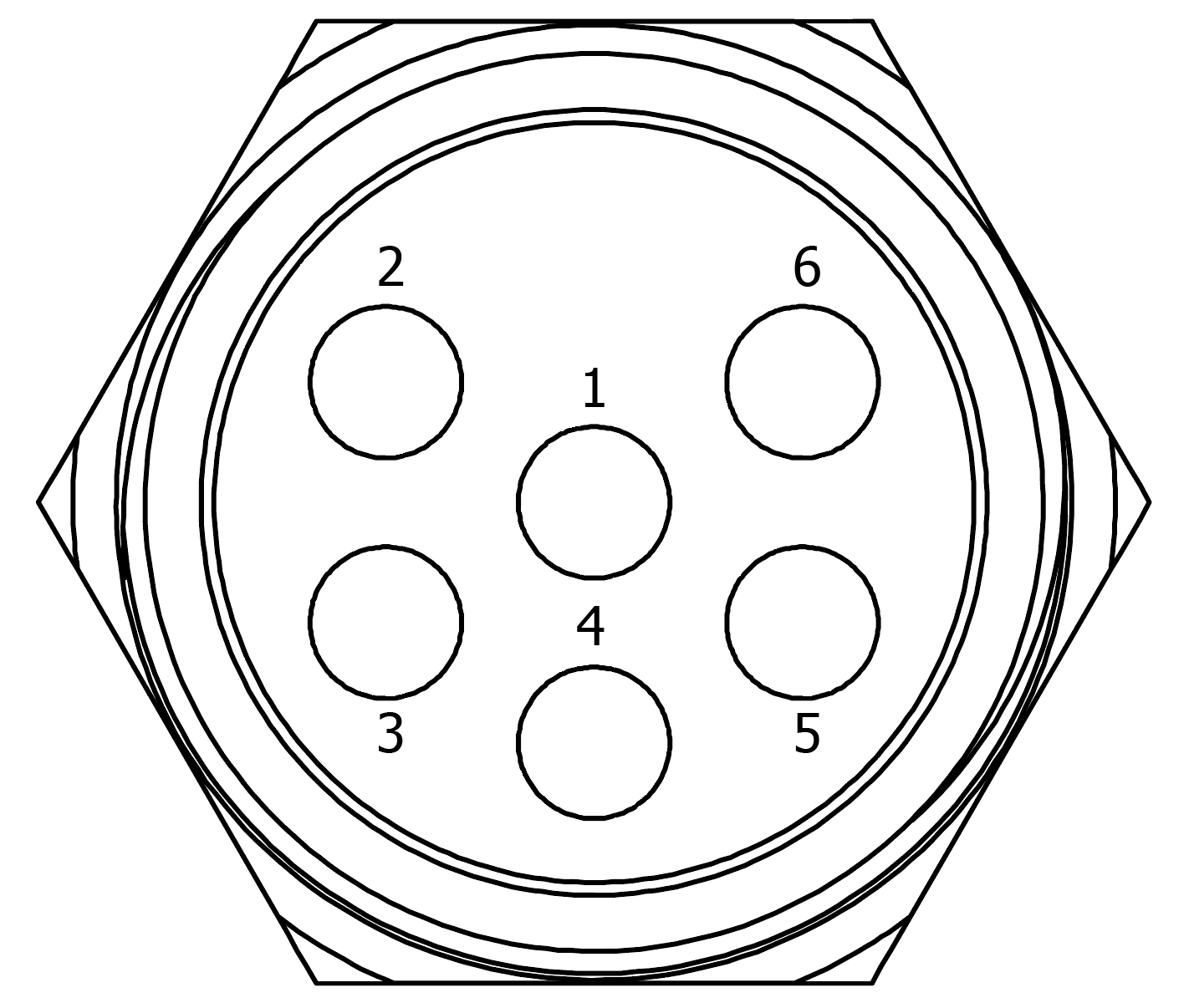

External MCBH-6-FS connector pinout
|
Pin No. |
USB |
1 |
Ground |
|
2 |
Power |
|
3 |
N/C |
|
4 |
N/C |
|
5 |
N/C |
|
6 |
N/C |
|

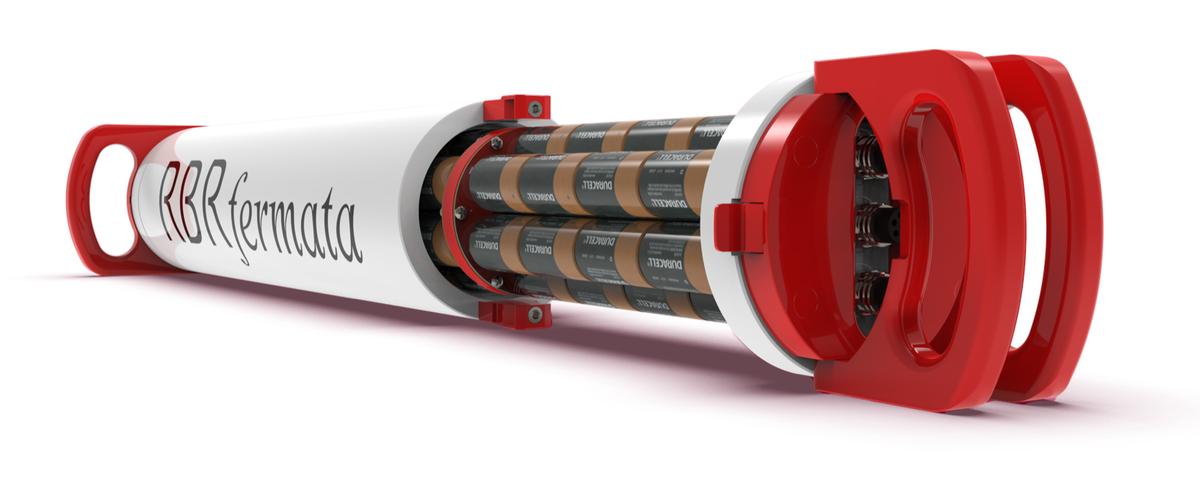

RBR offers an option to retrofit legacy RBRfermata battery canisters with the new battery carrousel, quick-release handles, and new electronic hardware. To return your RBRfermata for retrofitting, please contact RBR support team. |
