Connectors

Cable bend radius

The smallest bend radius for RBR supplied cables is 15cm.

Lubricating the connectors

Lubrication improves watertight sealing, prevents corrosion, and reduces the force required to de-mate the connector. Use the silicone compound provided with your instrument:

  • Apply the silicone compound to all female connectors before every mating.

  • Ensure each connector hole is filled with approximately 30% lubricant.

screen shot 2021 07 12 at 10 45 47 am

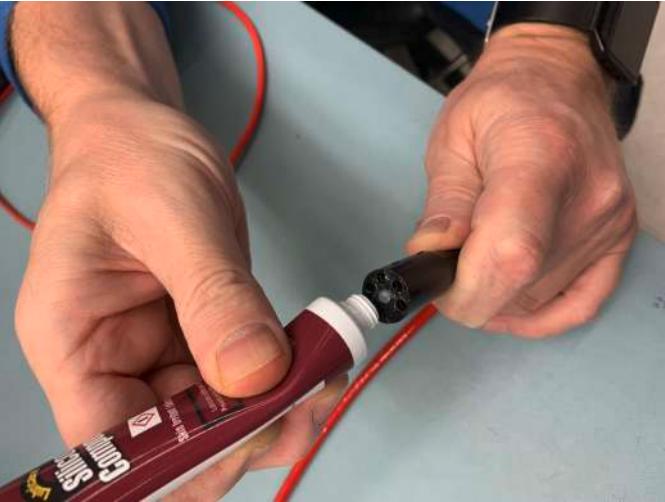

Fig. 1.    Applying silicone compound to the female connectors.
cable end legato 3

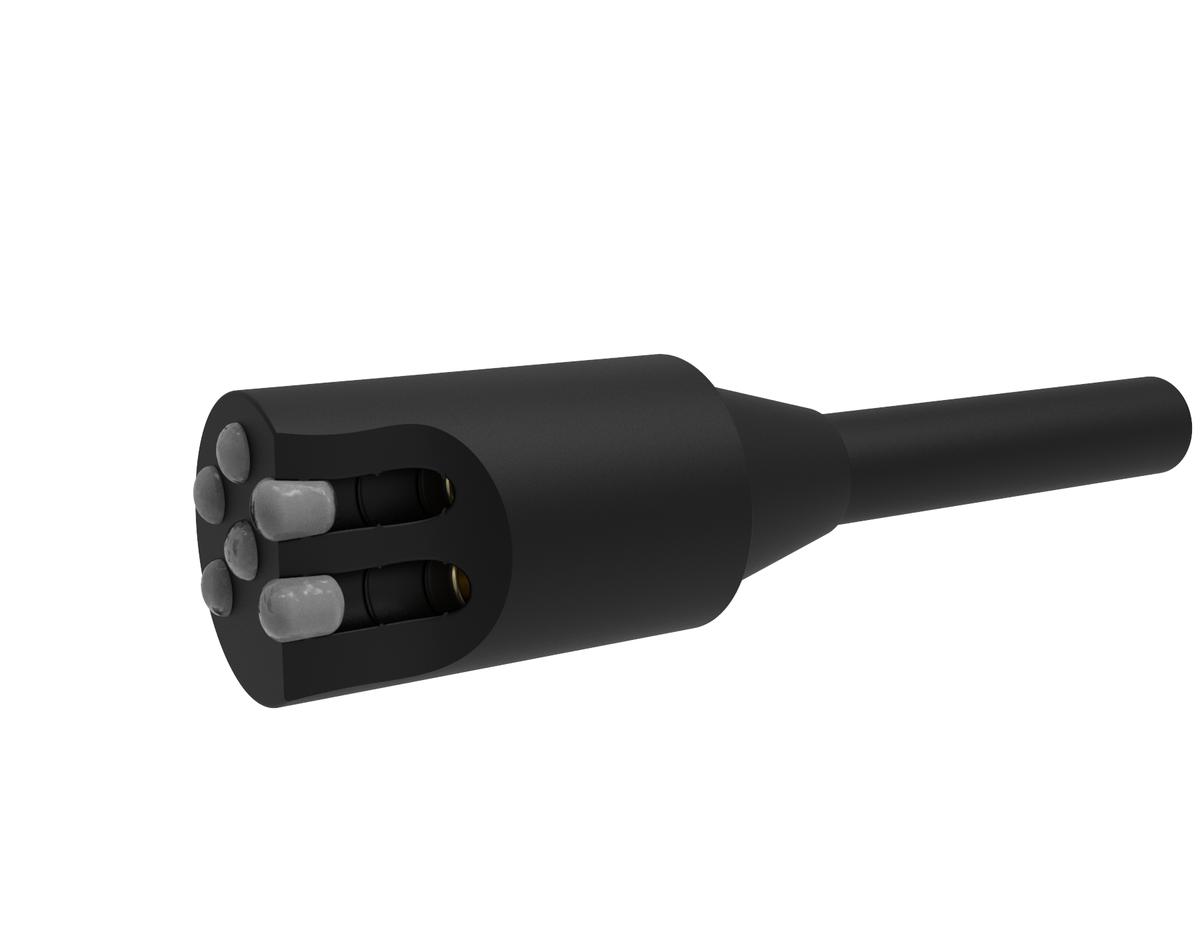

Fig. 2.    Cross-sectional view of a connector with 30% lubricant fill.

Reducing mechanical stress

  • Do not pull on the cable.

  • Hold onto the connector to pull out the cable.

  • Disconnect by pulling straight out, not at an angle.

  • Avoid sharp bends at the point where the cable enters the connector.

  • Avoid angular loads on the connector.
