Using the diagnostic port
RBRcervello Antarctica and dual-modem

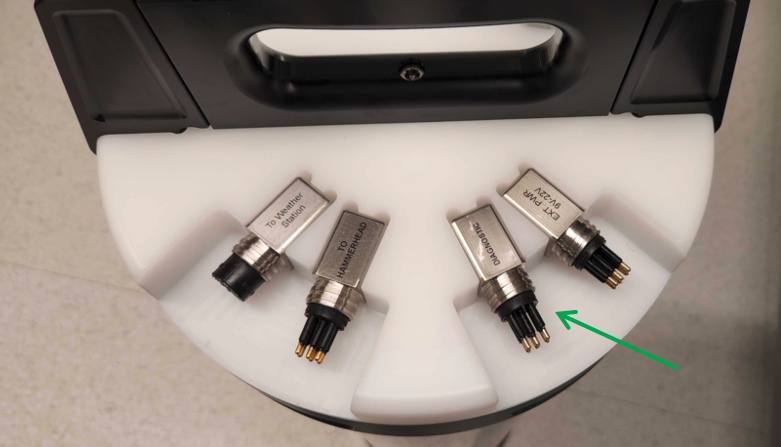

The RBRcervello diagnostic port consists of a six-pin bulkhead connector with power and RS-232 connections. It is meant to be used in conjunction with an RBR patch cable with RS-232 electrical connections, like the one provided in the RBRcervello Antarctica shipping crate.
.\
.
Tools needed
USB to MCIL-6-FS cable (provided)
Computer with a USB port
...

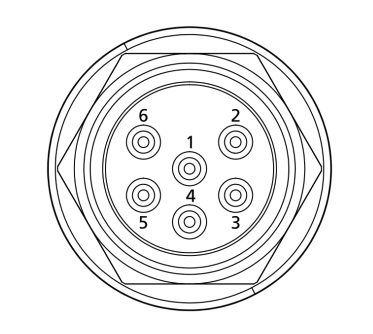

External MCBH-6-MP diagnostic connector pinout
 | .Pin No. | RS-232 |
1 | Ground | |
2 | Power +9 to +22 V | |
3 | Data output from the instrument (Tx) | |
4 | Data input into the instrument (Rx) | |
5 | N/C | |
6 | N/C |
Serial terminal
RBRcervello serial settings
115200baud
8bit, no parity-bit, 1 stop-bit: 8N1
No flow control
.
Use a terminal emulator to communicate with the RBRcervello through its diagnostic/debug port.
Windows
On a Windows-based workstation, use any terminal emulator console that supports a serial port, such as Tera Term.
Tera Term
Tera Term is an open-source terminal emulator that lets you connect to hosts via serial port or the network. The default settings should work with the RBRcervello interface. In the unlikely event when they do not, load the configuration file provided below using the "Setup→Restore setup" menu.
.
Tera Term
Alternatively, configure the settings manually as follows:
.

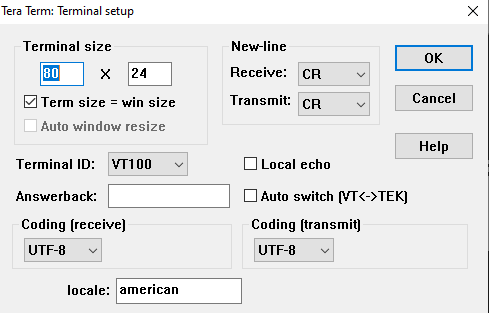

In "Setup→Terminal setup" menu, enter the terminal size:
In "Setup→Keyboard setup" menu, select "Delete key":
.
.

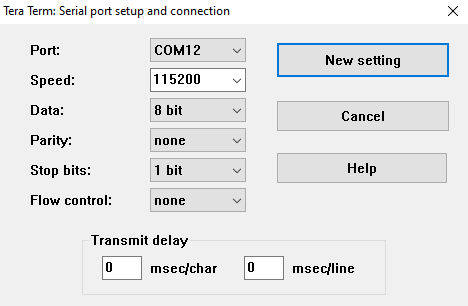

In "Setup→Serial port setup and connection" menu, select the correct COM port:
.
.
.
Highlighting text on the terminal automatically copies it to the clipboard. Right-clicking on the terminal will paste the saved text on it.
Linux
On a Linux-based workstation, use any terminal emulator console that supports a serial port, such as Minicom.
Minicom
Minicom is a serial communication program that connects to devices through a GNU/Linux serial ports. Use the "-s" command to set up the terminal with the right port and settings, or execute it with explicit settings at runtime with the correct device:
minicom -b 115200 -D /dev/ttyUSB0
Minicom

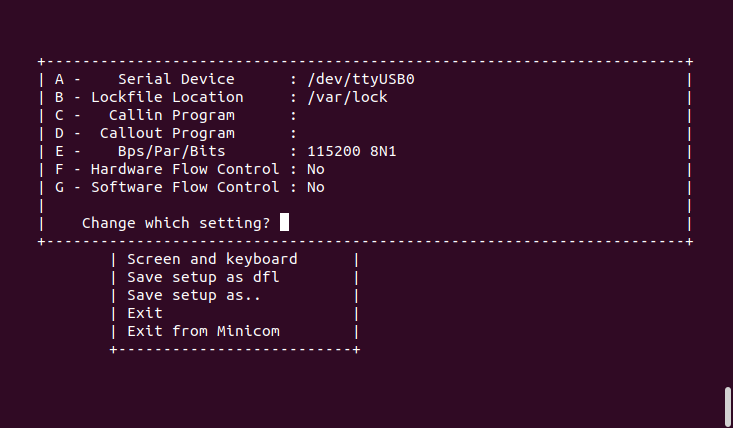

Minicom serial settings
.
.
To copy and paste text from and to a Linux terminal, use Ctrl+Shift+C and Ctrl+Shift+V.
Diagnostic menu overview

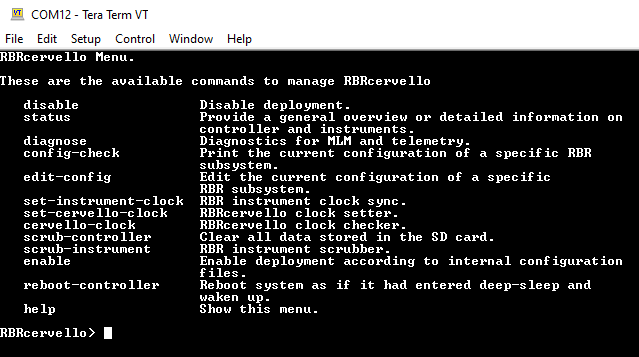

Access the RBRcervello menu via the diagnostic port using an RS-232 interface (115200 8N1). It is a fully-featured Bash terminal (Restricted Bash) with "tab" completion. To see the list of available commands, execute the "help" command. You will find all you need to deploy the RBRcervello with the RBR instruments. As a quick in-menu reference, each command displays a short manual when executed with the "-h" or "--help" argument.

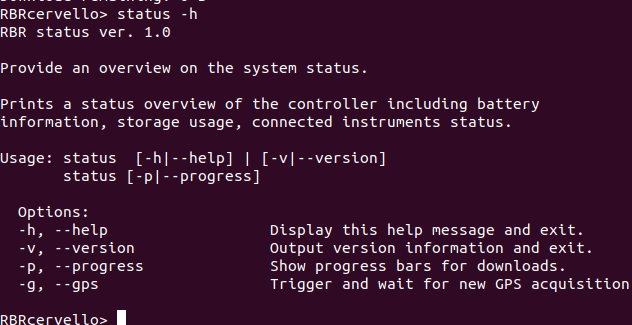

"Status" help

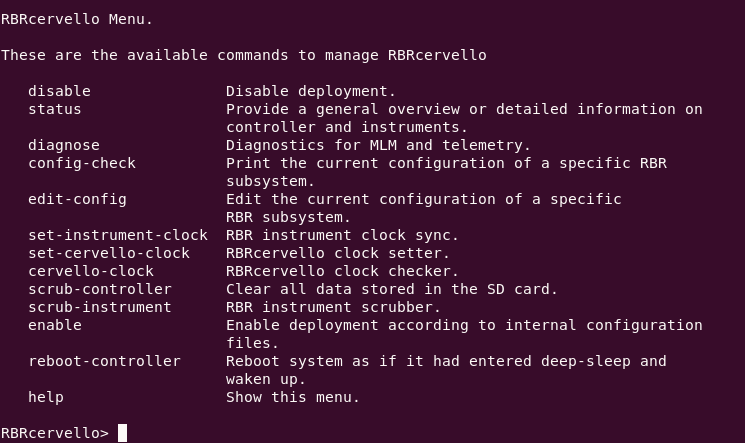

RBRcervello Menu.
These are the available commands to manage RBRcervello
disable Disable deployment.
status Provide a general overview or detailed information on
controller and instruments.
diagnose Diagnostics for MLM and telemetry.
transparent-link Establish a transparent link to an instrument
serial port.
config-check Print the current configuration of a specific RBR
subsystem.
edit-config Edit the current configuration of a specific
RBR subsystem.
set-instrument-clock RBR instrument clock sync.
set-cervello-clock RBRcervello clock setter.
cervello-clock RBRcervello clock checker.
scrub-controller Clear all data stored in the SD card.
scrub-instrument RBR instrument scrubber.
enable Enable deployment according to internal configuration
files.
reboot-controller Reboot system as if it had entered deep-sleep and
waken up.
help Show this menu. See the Diagnostic menu section for more information.
