Troubleshooting
Because the RBRcervello system comprises multiple components, troubleshooting may be a multi-stage process. It involves separate procedures to verify correct functionality of each.
Follow the steps outlined in Using the diagnostic port to open the command menu. Refer to Deployment preparation for the detailed description of how to run diagnostic tests.
Communication issues
- Using the status command, check the status of the instrument.
- If the instrument status is "commchannelerror", run the MLM diagnostic task.

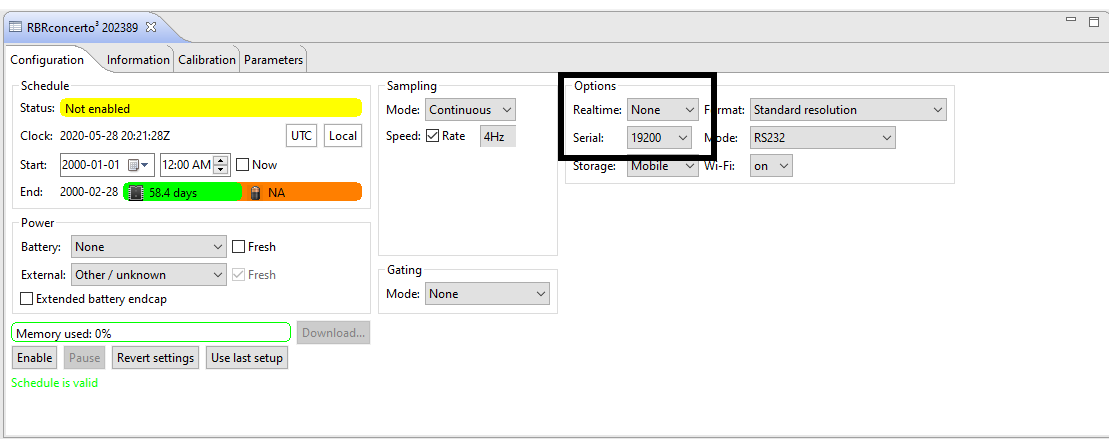

- If the instrument status is "loggererror", ensure your logger is communicating at 19200baud (use Ruskin to check).
If you change any settings on Ruskin, clear the data from the instrument and the data controller, as described in Deployment preparation.
GSM
Run the GSM diagnostic task to troubleshoot common errors, such as a bad SIM-card or poor Internet connection.
Failure, bad SIM-card
RBRcervello> diagnose gsm Checking deployment status... Stopping services... Waiting for publisher to terminate... Stopping periodic command scheduler: cron. Starting GSM test I think the GSM modem is on /dev/ttyS4 at 230400 baud. Waiting for the modem to come up... Modem is up. Waiting for PPP connection to the modem... Established PPP connection to the modem. Modem identifiers: IMEI: N/A IMSI: N/A ICCID: N/A Waiting for the modem to connect to the GSM network.....................................................Hit the connection timeout! Giving up. Test failure: failed to bring up connection! /usr/bin/poff: No pppd is running. None stopped. messages-read: no process found netpty: no process found The serial link has been brought down. Powering off the modem. Restarting services... Starting periodic command scheduler: cron. RBRcervello>
If so, remove and re-insert the SIM card in the tray in the SIM1 position, as explained in the Telemetry section.
RUDICS
Run the RUDICS diagnostic task to identify failures in the modem, signal strength, or activation issues of the SIM-card.
Failure, no satellite signal
This error indicates there is a connection problem with the antenna, or the antenna is obstructed.
RBRcervello> diagnose rudics Checking deployment status... Stopping services... Waiting for publisher to terminate... Stopping periodic command scheduler: cron. Starting RUDICS test I think the RUDICS modem is on /dev/ttyS4 at 2400 baud. Waiting for the modem to come up... Teraform v1.1.2 (built 2021-10-12T20:17:02+0000) 2021-11-12 20:42:48 src/teraform.c:364 [INFO ]: Modem: "/dev/ttyS4" 2021-11-12 20:42:48 src/teraform.c:367 [INFO ]: Dial number: "0088160999999" 2021-11-12 20:42:48 src/teraform.c:388 [INFO ]: Configuring modem... 2021-11-12 20:42:48 src/teraform.c:432 [INFO ]: Waiting for modem to be available... 2021-11-12 20:42:48 src/teraform.c:451 [INFO ]: Checking IMEI... 2021-11-12 20:42:48 src/teraform.c:451 [INFO ]: IMEI: 3001250619999999 2021-11-12 20:42:48 src/teraform.c:478 [INFO ]: Checking ICCID... 2021-11-12 20:42:49 src/teraform.c:478 [INFO ]: ICCID: 8988169763060999999 2021-11-12 20:42:49 src/teraform.c:488 [INFO ]: Disabling flow control... 2021-11-12 20:42:49 src/teraform.c:520 [INFO ]: Waiting for satellite signal... 2021-11-12 20:42:52 src/teraform.c:520 [INFO ]: No signal found. Waiting to try again. 2021-11-12 20:43:03 src/teraform.c:520 [INFO ]: Waiting for satellite signal... 2021-11-12 20:43:03 src/teraform.c:520 [INFO ]: No signal found. Waiting to try again. 2021-11-12 20:43:14 src/teraform.c:520 [INFO ]: Waiting for satellite signal... 2021-11-12 20:43:18 src/teraform.c:520 [INFO ]: No signal found. Waiting to try again. 2021-11-12 20:43:29 src/teraform.c:520 [INFO ]: Waiting for satellite signal... 2021-11-12 20:43:29 src/teraform.c:520 [INFO ]: No signal found after the final attempt. 2021-11-12 20:43:29 src/teraform.c:520 [ERROR]: Failed after 4 attempts. Failed to dial connection! Giving up. Test failure: failed to bring up connection! Teraform v1.1.2 (built 2021-10-12T20:17:02+0000) 2021-11-12 20:43:29 src/teraform.c:364 [INFO ]: Modem: "/dev/ttyS4" 2021-11-12 20:43:32 src/teraform.c:584 [INFO ]: Escaping from data call... 2021-11-12 20:43:35 src/teraform.c:584 [INFO ]: Escaping from data call... 2021-11-12 20:43:38 src/teraform.c:584 [ERROR]: Failed after 2 attempts. The serial link has been brought down. Powering off the modem. Restarting services... Starting periodic command scheduler: cron. RBRcervello>
Failure, no carrier or activation issue
This failure usually occurs because of a bad connection with the network or when the SIM-card has not been successfully activated.
RBRcervello> diagnose rudics Checking deployment status... Stopping services... Waiting for publisher to terminate... Stopping periodic command scheduler: cron. Starting RUDICS test I think the RUDICS modem is on /dev/ttyS4 at 2400 baud. Waiting for the modem to come up... Teraform v1.1.2 (built 2021-10-12T20:17:02+0000) 2021-11-12 20:54:02 src/teraform.c:364 [INFO ]: Modem: "/dev/ttyS4" 2021-11-12 20:54:02 src/teraform.c:367 [INFO ]: Dial number: "0088160999999" 2021-11-12 20:54:02 src/teraform.c:388 [INFO ]: Configuring modem... 2021-11-12 20:54:02 src/teraform.c:432 [INFO ]: Waiting for modem to be available... 2021-11-12 20:54:02 src/teraform.c:451 [INFO ]: Checking IMEI... 2021-11-12 20:54:03 src/teraform.c:451 [INFO ]: IMEI: 300125061999999 2021-11-12 20:54:03 src/teraform.c:478 [INFO ]: Checking ICCID... 2021-11-12 20:54:03 src/teraform.c:478 [INFO ]: ICCID: 8988169234002999999 2021-11-12 20:54:03 src/teraform.c:488 [INFO ]: Disabling flow control... 2021-11-12 20:54:03 src/teraform.c:520 [INFO ]: Waiting for satellite signal... 2021-11-12 20:54:12 src/teraform.c:520 [INFO ]: Found signal of strength 1/5. 2021-11-12 20:54:12 src/teraform.c:530 [INFO ]: Configuring data connection... 2021-11-12 20:54:12 src/teraform.c:564 [INFO ]: Dialing data connection... 2021-11-12 20:54:12 src/teraform.c:564 [INFO ]: Dial reported no carrier. Waiting 40s to try again. 2021-11-12 20:54:52 src/teraform.c:564 [INFO ]: Dialing data connection... 2021-11-12 20:54:52 src/teraform.c:564 [INFO ]: Dial reported an error. 2021-11-12 20:54:52 src/teraform.c:564 [ERROR]: Failed after 2 attempts. Failed to dial connection! Giving up. Test failure: failed to bring up connection! Teraform v1.1.2 (built 2021-10-12T20:17:02+0000) 2021-11-12 20:54:52 src/teraform.c:364 [INFO ]: Modem: "/dev/ttyS4" 2021-11-12 20:54:55 src/teraform.c:584 [INFO ]: Escaping from data call... 2021-11-12 20:54:58 src/teraform.c:584 [INFO ]: Escaping from data call... 2021-11-12 20:55:01 src/teraform.c:584 [ERROR]: Failed after 2 attempts. The serial link has been brought down. Powering off the modem. Restarting services... Starting periodic command scheduler: cron. RBRcervello>
