Using the diagnostic port

Tools needed

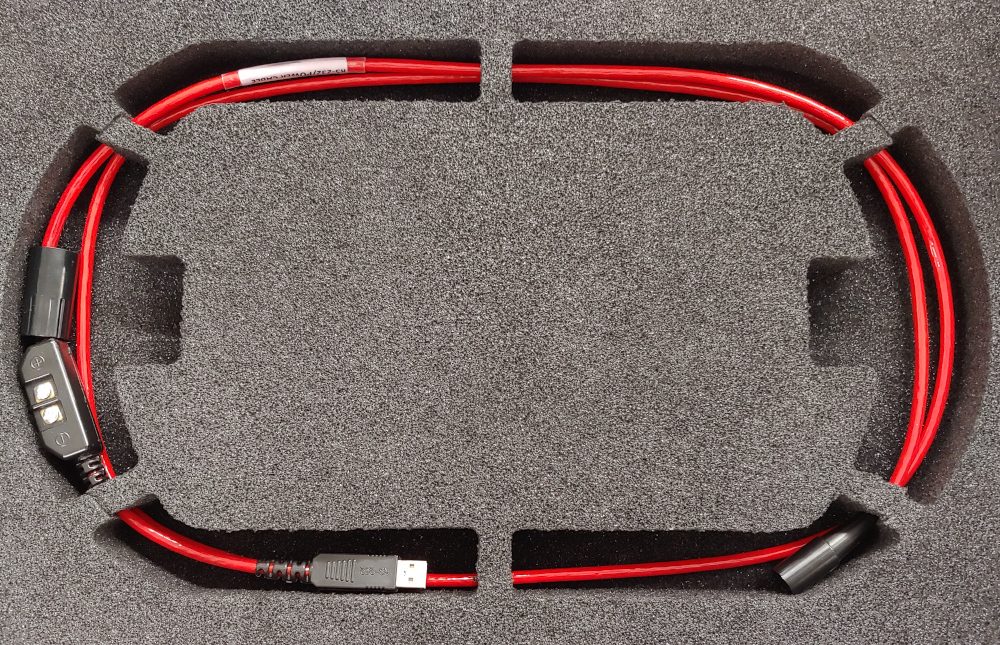

USB to MCIL-6-FS cable (provided)
Computer with a USB port
Serial terminal

Cable connection

The RBRcervello diagnostic port consists of a 6-pin bulkhead connector with power and RS-232 connections. It is meant to be used in conjunction with an RBR patch cable with RS-232 electrical connections, like the one provided in the RBRcervello shipping crate.

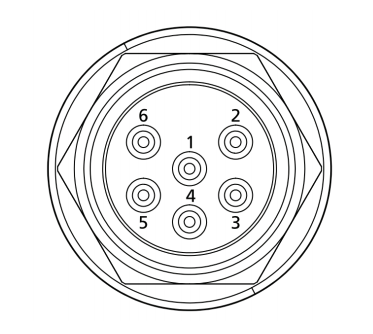

External MCBH-6-MP diagnostic connector pinout

	Pin No.	RS-232
	1	Ground
	2	Power +9 to +22 V
	3	Data output from the instrument (Tx)
	4	Data input into the instrument (Rx)
	5	N/C
	6	N/C

Serial terminal

RBRcervello serial settings

115200baud
8bit, no parity-bit, 1 stop-bit: 8N1
No flow control

Use a terminal emulator to communicate with the RBRcervello through its diagnostic port.

Windows

On a Windows-based workstation, use any terminal emulator console that supports a serial port, such as Tera Term.

Tera Term

Tera Term is an open-source terminal emulator that lets you connect to hosts via serial port or the network. The default settings should work with the RBRcervello interface. In the unlikely event when they do not, load the configuration file provided below using the "Setup→Restore setup" menu.

Teraterm_RBRcervello.INI

Tera Term

Alternatively, configure the settings manually as follows:

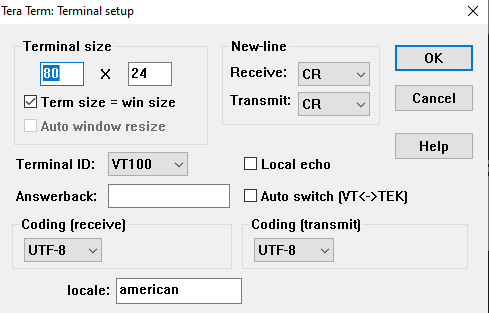

In "Setup→Terminal setup" menu, enter the terminal size:

In "Setup→Keyboard setup" menu, select "Delete key":

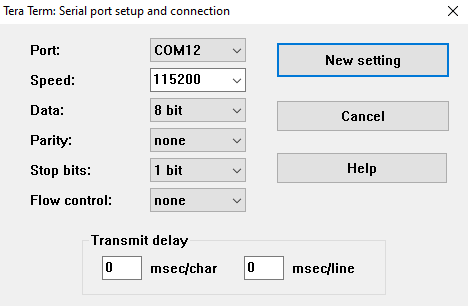

In "Setup→Serial port setup and connection" menu, select the correct COM port:

Copy/Paste

Highlighting text on the terminal automatically copies it to the clipboard. Right-clicking on the terminal will paste the saved text on it.

Linux

On a Linux-based workstation, use any terminal emulator console that supports a serial port, such as Minicom.

Minicom

Minicom is a serial communication program that connects to devices through a GNU/Linux serial ports. Use the "-s" command to set up the terminal with the right port and settings, or execute it with explicit settings at runtime with the correct device:

CODE

minicom -b 115200 -D /dev/ttyUSB0

Minicom

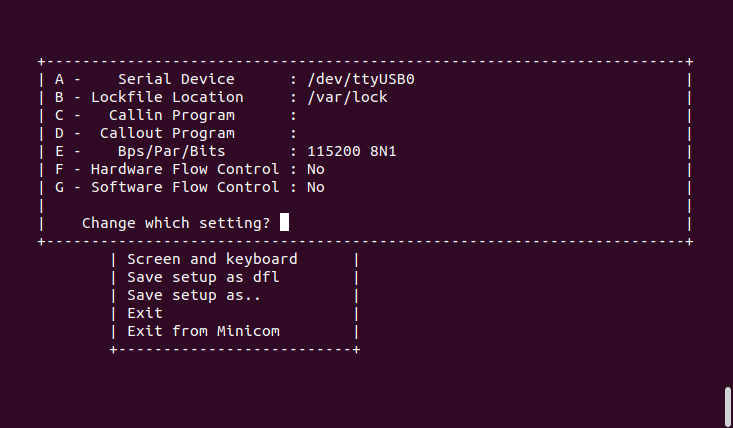

Minicom serial settings

Copy/Paste

To copy and paste text from and to a Linux terminal, use Ctrl+Shift+C and Ctrl+Shift+V.

DIagnostic menu overview

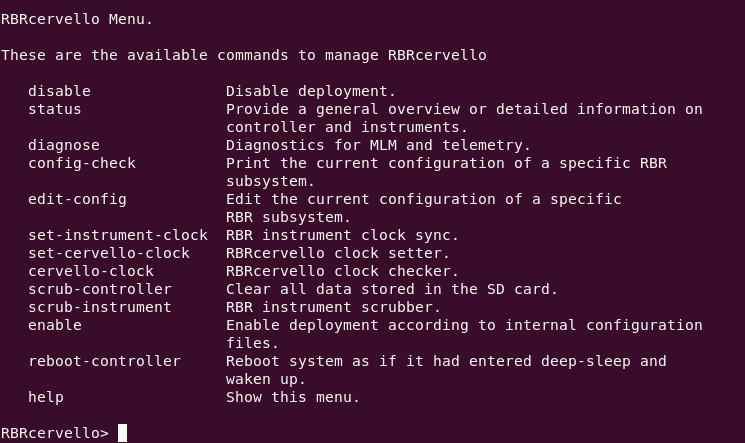

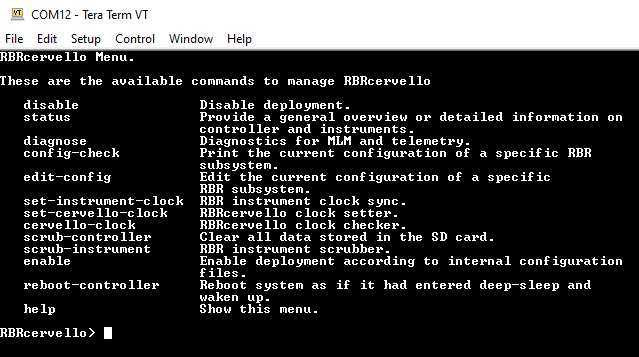

Access the RBRcervello menu via the diagnostic port using an RS-232 interface (115200 8N1). It is a fully-featured Bash terminal (Restricted Bash) with "tab" completion. To see the list of available commands, execute the "help" command. You will find all you need to deploy the RBRcervello with the RBR instruments. As a quick in-menu reference, each command displays a short manual when executed with the "-h" or "--help" argument.

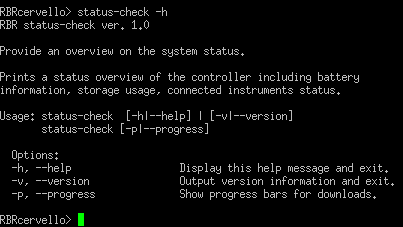

"Status" help

RBRcervello Menu.  These are the available commands to manage RBRcervello
   disable               Disable deployment.
   status                Provide a general overview or detailed information on
                         controller and instruments.
   diagnose              Diagnostics for MLM and telemetry.
   config-check          Print the current configuration of a specific RBR subsystem.
   edit-config           Edit the current configuration of a specific RBR subsystem.
   set-instrument-clock  RBR instrument clock sync.
   set-cervello-clock    RBRcervello clock setter.
   cervello-clock        RBRcervello clock checker.
   scrub-controller      Clear all data stored in the SD card.
   scrub-instrument      RBR instrument scrubber.
   enable                Enable deployment according to internal configuration files.
   reboot-controller     Reboot system as if it had entered deep-sleep and waken up.
   help                  Show this menu.
RBRcervello>

See the Diagnostic menu section for more information.
