MCBH-6-MP pinout - sensors

All RBR smart sensors have an MCBH-6-MP connector to connect to your computer via RS-232 or to use for integrations with the RBR standard instruments.

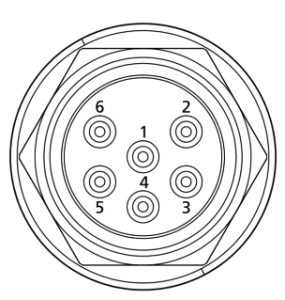

Pin No. Definition
1 Ground
2  Power
3From the sensor (Tx)
4Into the sensor (Rx)
5N/C
6N/C

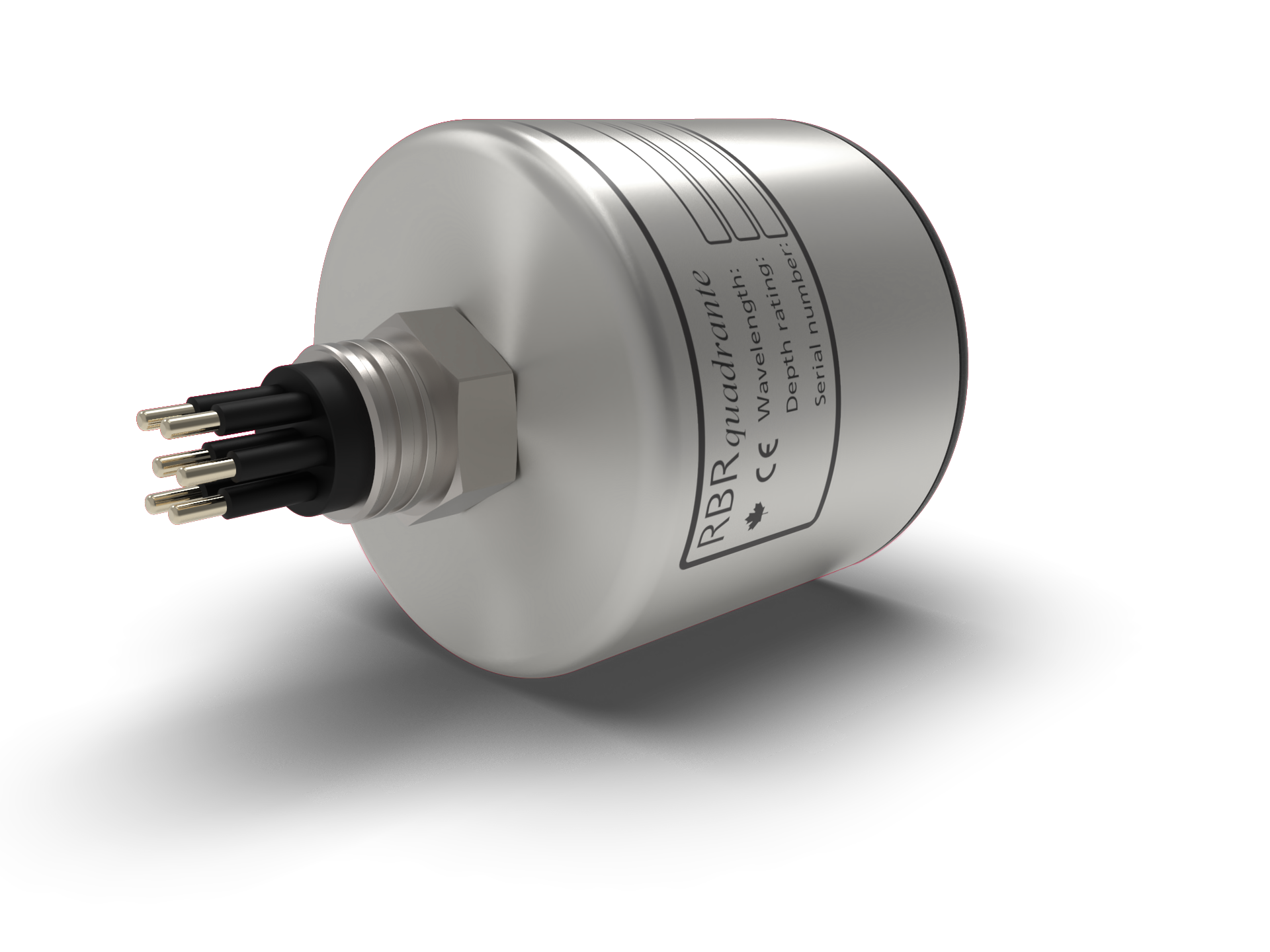

      RBRquadrante with an MCBH connector
