MCBH-6-FS pinout (SV11) - RBRconcerto³, RBRmaestro³

The RBRconcerto3 variants with an elongated body and RBRmaestro3 instruments have MCBH-6-FS connectors with an SV11 pinout. This generic connector provides a single analogue channel with a voltage range of 0 - 5V ( between Pin 2 and Pin 3). It does not follow RBR pinout conventions and is thus an exception. Use this connector to install raw voltage sensors (voltage kit, 0-5V general analogue input) and to communicate the data from these sensors to the instrument.


RBR properly installs all sensors included with your instruments. The MCBH-6-FS SV11 pinout will only be needed when installing an additional sensor. If a spare connector may be required, it must be wired/activated at the time of purchase.

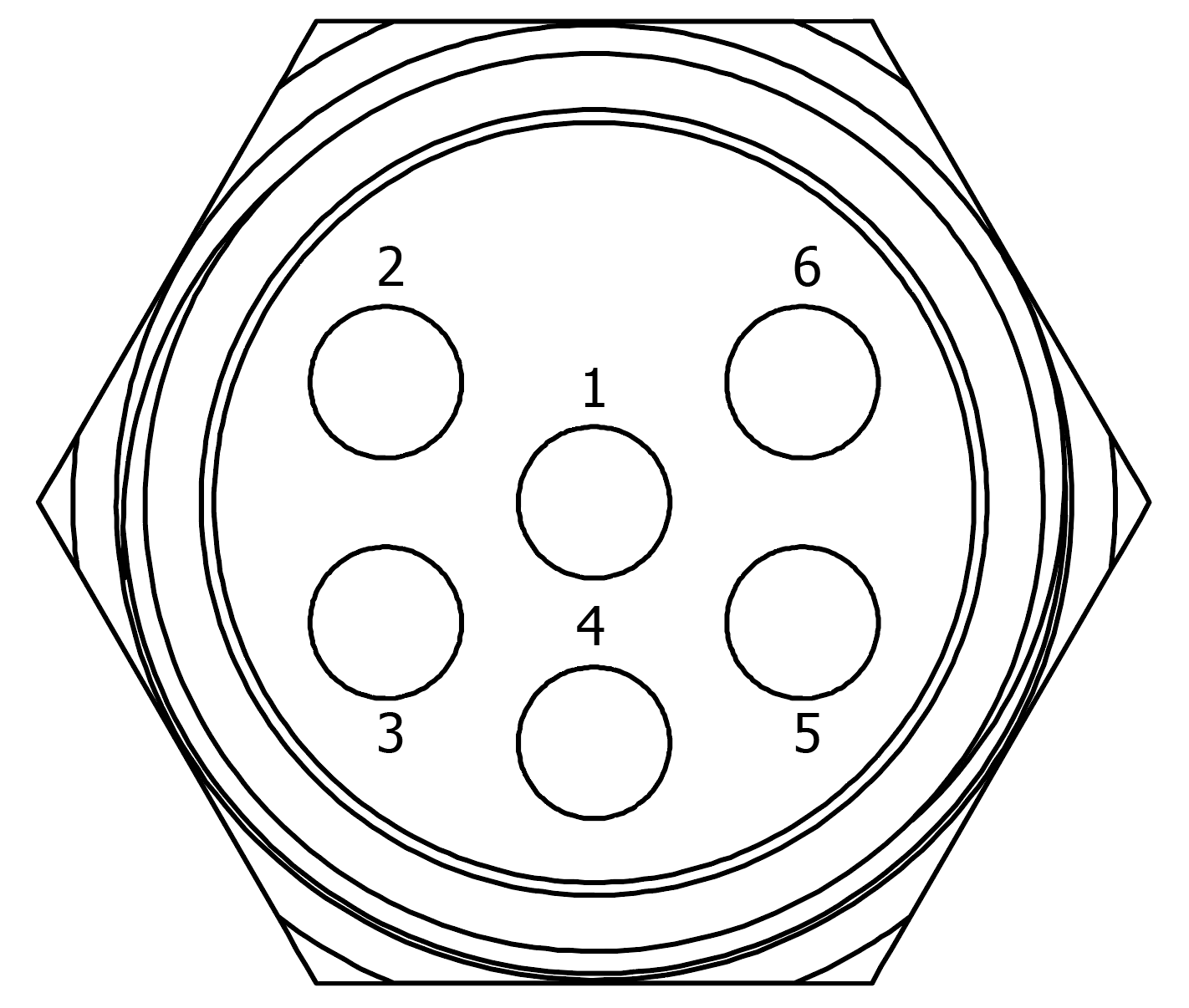

MCBH-6-FS (SV11) connector pinout

Pin No.

Definition

1

Power ground

2

Sensor signal (V)

3

Sensor ground

4

12V Sensor power

5

N/C

6

N/C

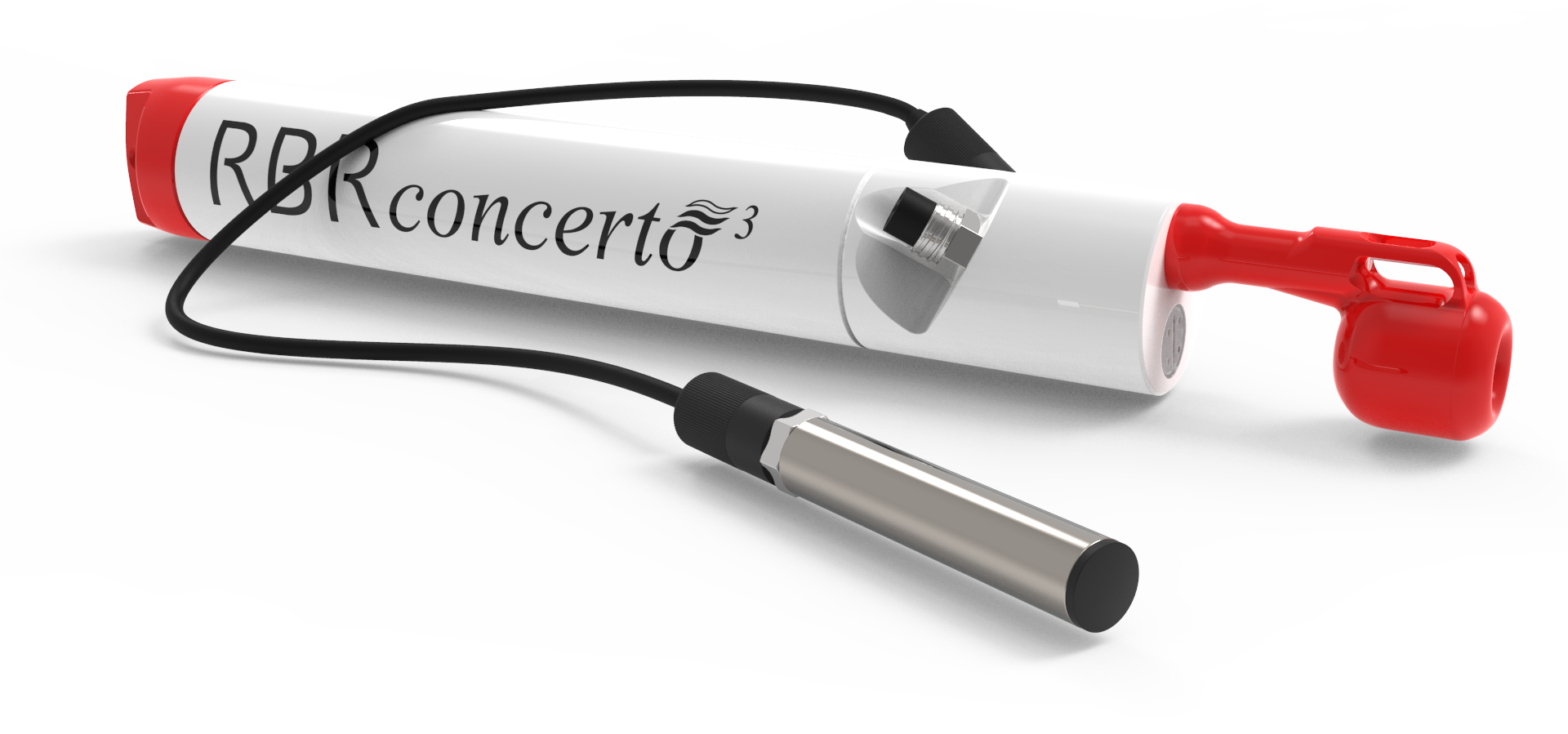

RBRconcerto3 with a factory-installed chl a sensor and a spare MCBH-6-FS connector (SV11)
