RSKplotburstdata.m

Arguments

Input

-Required-

  • RSK

-Optional-

  • channel : longName.

Output

  • handles

This function plots the burstData initially read by RSKreadburstdata.m.

It creates a subplot for every channel available, unless the channel argument is used to select a subset.

The code below created the plot below it.

CODE
rsk = RSKopen(filename);
rsk = RSKreaddata(rsk, 't2', datenum(2016,05,13,12,00,00));
rsk = RSKreadburstdata(rsk, 't2', datenum(2016,05,13,12,00,00));
hdlsburst = RSKplotburstdata(rsk, 'channel','Pressure');
hold on
hdlsdata = RSKplotdata(rsk, 'channel','Pressure');
hdlsdata.Marker = '.';
hdlsdata.MarkerSize = 10;

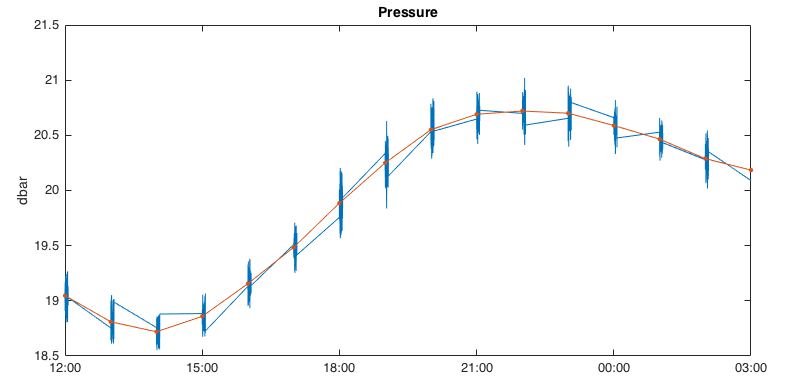

In the figure above, the blue line is the values in the burstdata field and the orange dots are the values in the data field.
