Opening the instrument

Opening the instrument

1. Position the instrument on a bench table.
2. Locate the 2 provided clamps.

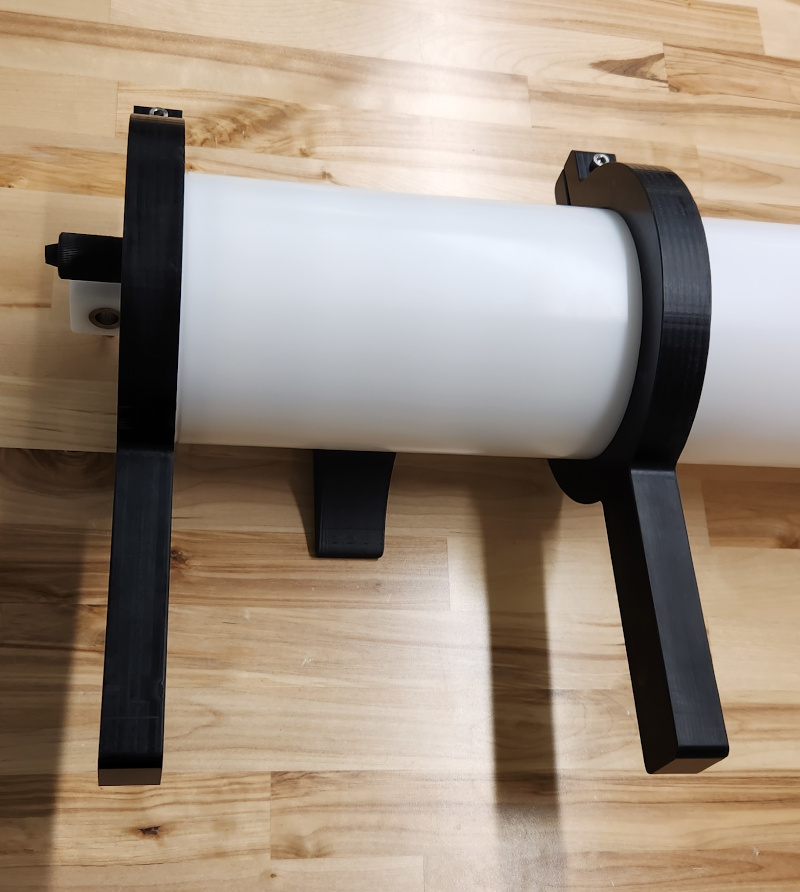

3. Put one of the clamps on the body within the half that has the MCBH connector and the other clamp right on the bottom cap of the instrument as shown in the picture.

4. Tighten the clamps to the instrument.
5. Unscrew the cap using the leverage of the clamps.

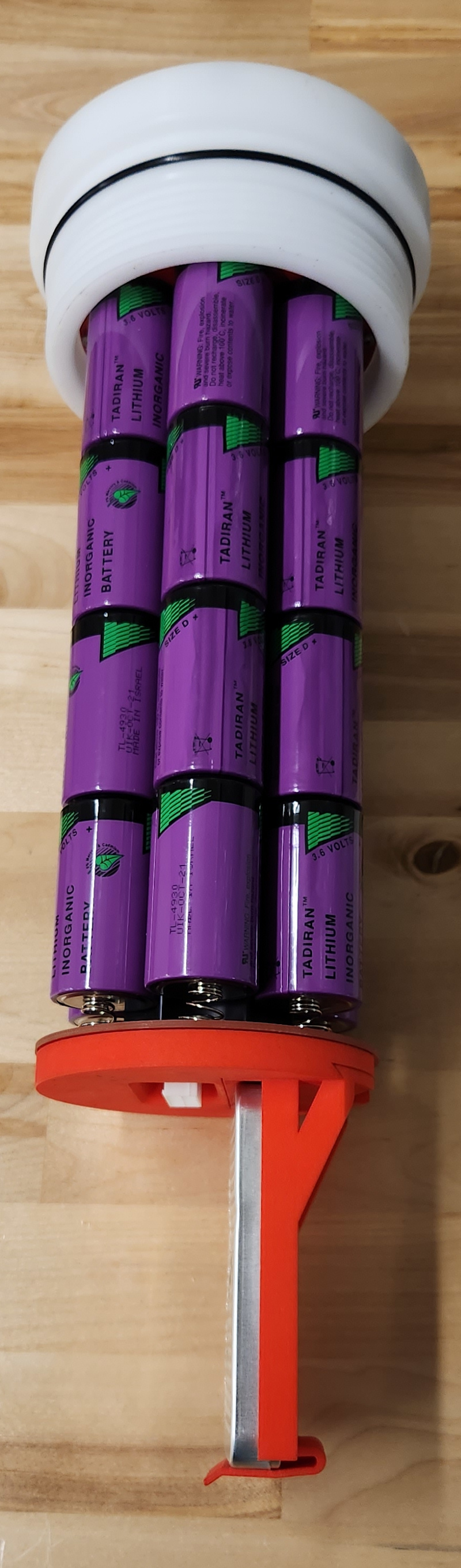

6. Disconnect the cable from the battery carriage.

Closing the instrument

1. Installed the provided clamps as shown in the pictures.
2. Connect the internal cable.
3. Spin the cap around counter-clockwise at least twice to prevent over-twisting the internal cable.
4. Screw the cap.
5. Remove the clamps.
