Opening and closing the RBRcervello

The following RBRcervello models have an end-cap with locking tabs:

• RBRcervello Antarctica, dual modem (GSM/RUDICS), deep-sleep feature, end-cap with four wired connectors, external RUDICS and GPS antennas

• RBRcervello, dual modem (GSM/RUDICS), end-cap with two or four wired connectors, built-in antennas

Opening the controller

1. Position the RBRcervello upright.

2. Locate and grab the locking tabs on the cap.

3. Pull the tabs to their sides.

4. Pull the internal assembly from the external handle.

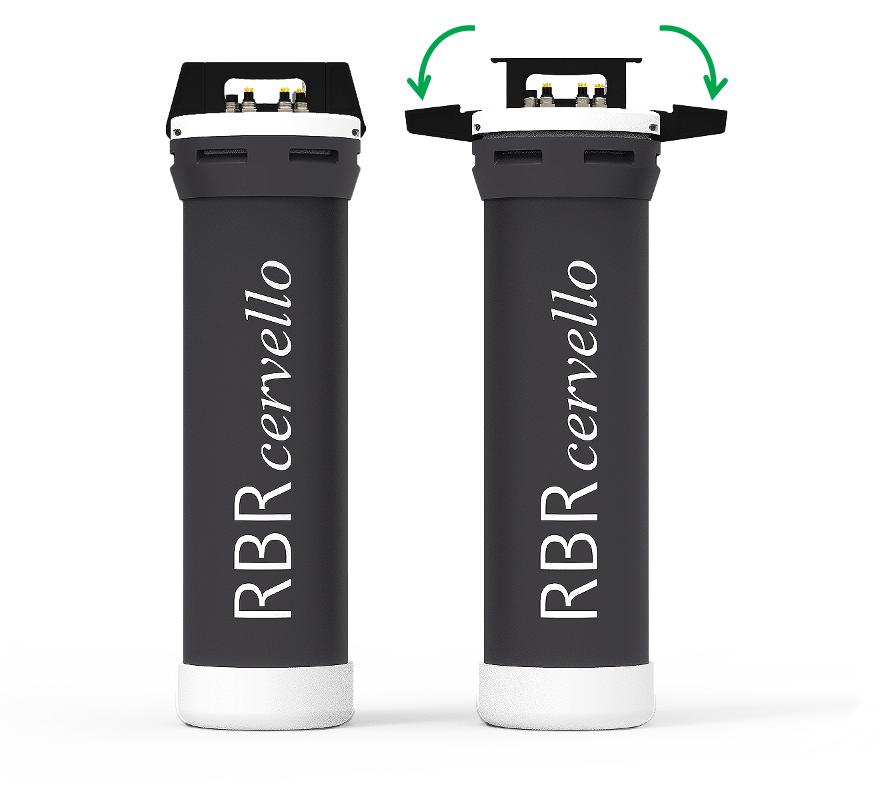

Opening the locking tabs (RBRcervello Antarctica)

Closing the controller

1. Position the RBRcervello housing upright.

2. Insert the internal assembly into the housing.

3. Align the locking tabs with the openings on the top of the housing.

4. Press firmly.

5. Lock the tabs back in place.

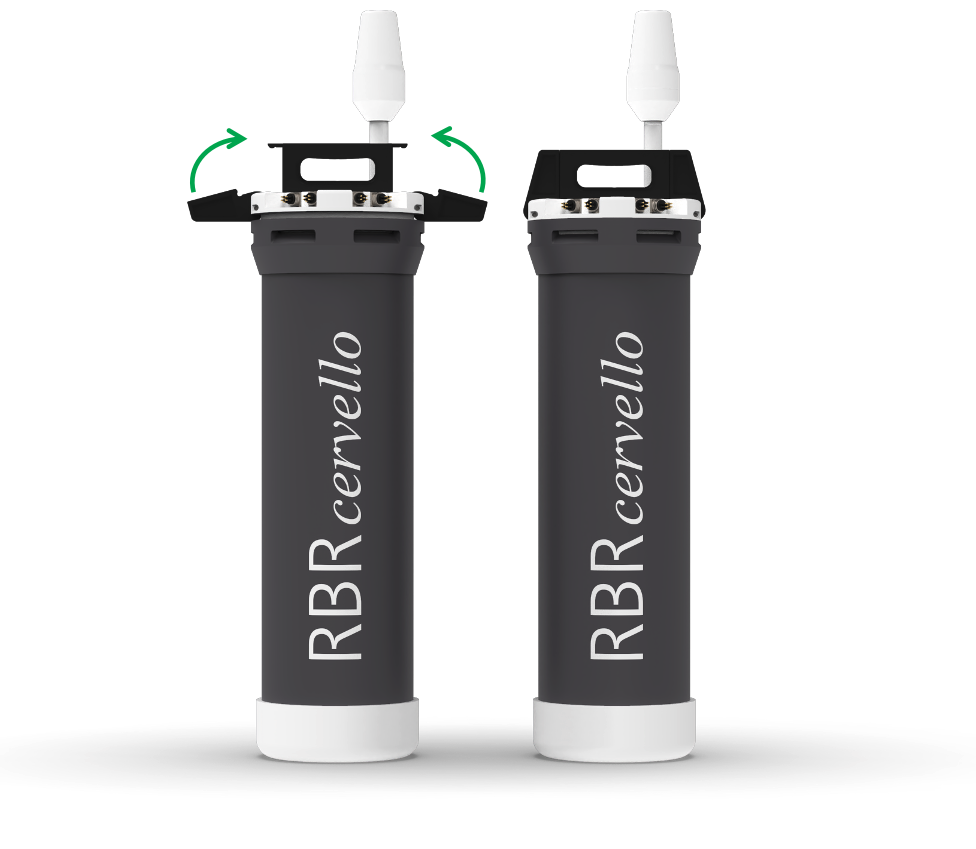

Closing the locking tabs (RBRcervello, dual modem)
