wifi

Usage

>> wifi [ enabled | state| timeout | commandtimeout | baudrate ]

Security

Unsafe.

Description

This command allows the user to retrieve information about the Wi-Fi link, and to control some aspects of its behaviour. Please note that some instruments may not have a Wi-Fi link available.

The parameters currently supported are:

enabled [= true|false], enables (true) or disables (false) Wi-Fi functionality. The logger may support a WiFi link, but it will not be used if disabled.
state is a read-only parameter which shows whether an enabled Wi-Fi link is on (powered up and ready to communicate) or off (powered down); a disabled Wi-Fi link will report n/a for the state.

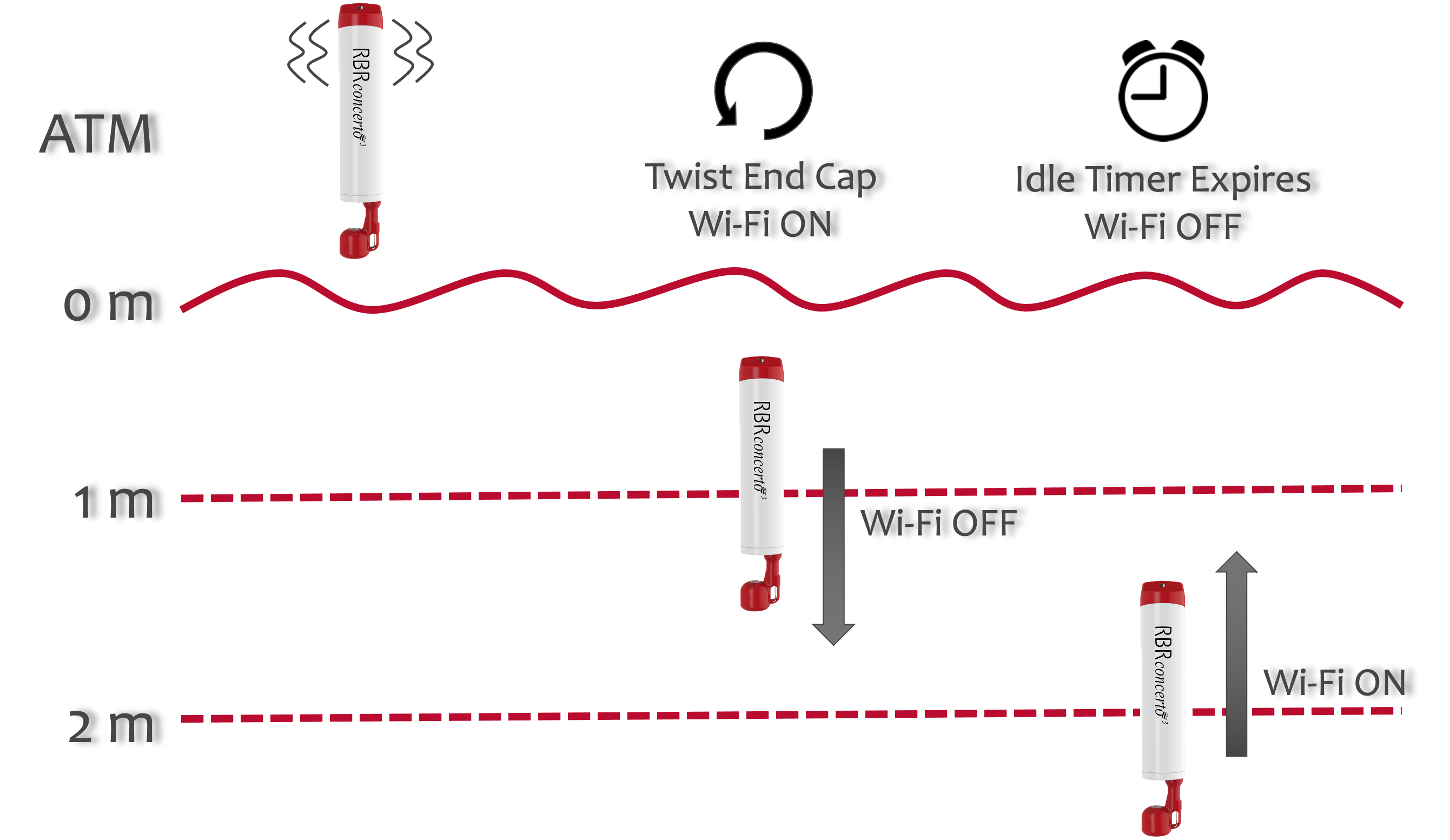

timeout [= <timeout>], specifies how long in seconds an enabled Wi-Fi link will wait for the first valid command after powering up. If the timeout expires, the Wi-Fi link is powered down. The timeout can be set to a value from 5 up to 600 seconds; the default value is 60 seconds.
commandtimeout [= <commandtimeout>], specifies how long in seconds an enabled Wi-Fi link will wait between commands after the first valid one. If the timeout expires, the Wi-Fi link is powered down. The timeout can be set to a value from 5 up to 600 seconds; the default value is 60 seconds.
baudrate is a read-only parameter reporting the speed of an internal connection between the Wi-Fi module and the instrument's CPU. This information may be of use in optimizing data transfer parameters when downloading data from the logger via the Wi-Fi link.

Examples

CODE

>> wifi timeout = 120
<< wifi timeout = 120 commandtimeout = 60
>> wifi
<< wifi timeout = 120 commandtimeout = 60

Errors

Error E0108 invalid argument to command: '<invalid-argument>'
The command was given with an argument which is unrecognized or has an invalid value; for example "wifi timeout = 4".

Error E0105 command prohibited while logging
Parameters may not be modified while logging is in progress; reading the parameter values is permitted.

Error E0109 feature not available
The instrument does not support a Wi-Fi link.

Error E0114 feature not supported by hardware
The instrument is not capable of supporting a Wi-Fi link.
